1.Brief introduction-home using wood pellet machine
Wood pellet machine is new generation of energy-saving products, researched and developed by our researcher newly. It is mainly used to compress crushed corn straw, sawdust, plant waste, bamboo powder, grass, sunflower stalk, straw, rice husk, forestry waste, wood chips, chemical waste and etc. into cylindrical shape particles. Raw material moisture is 10%~15% before enter into pellet machine.
It can be configured to diesel engine or electricity motor , it is mobile flexible and simple to operate;
Diesel engine, e. motor and tractor PTO shaft power is optional by customer’s request.
The raw material of wood pellet machine
Note:
A diesel engine is another choice to drive the machine, together with the clutch and accelerating decelerating Device to change its speed. It is still for the belt to drive the main shaft. The machine can run smoothly and with Few noises
It is ideal pellet press for personal, family and small plants due to easy operation and maintenance.

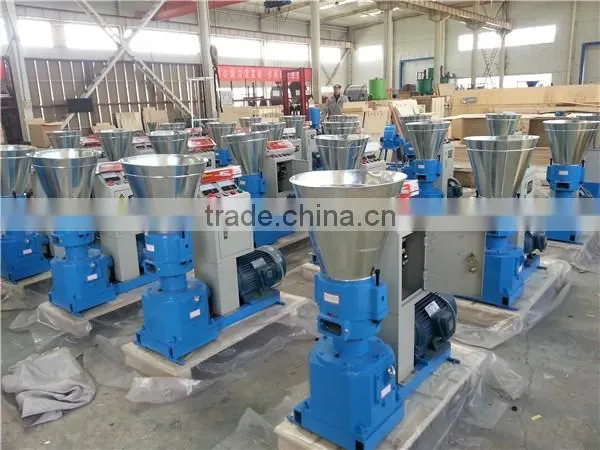

Wood pellet machine at our factory:
2. Applied raw material -home using wood pellet mill
1) Wood waste, slobs, branch, and palm tree;
2) Bean straw, wheat straw, corn straw, cotton straw, rice straw, rice husk
3) Cotton shell, peanut shell, rice shell, palm tree, coconut shell;
3. Application of biomass fuel-home using wood pellet mill
1) Home heating stoves
2) Hot water boilers and the industrial boilers,
3) Biomass power plants and so on.
4) The machine is suitable for making the biomass, sawdust pellet and oil cake for the feedstuff which it could be granule pellet for animal feed.
4.Advantage ---home using wood pellet mill
1) Table performance, low energy consumption
2) Convenient repairing and maintenance
3) Low failure rate, easy operation
4) High pellet forming rate
5) Pellet with high density
6) The length of pellets can adjust by change cutter‘s position.
7) Widely use to press fuel /feed/fertilizer pellets.
8) The flat die pellet machine is a tried and tested machine and has been in operation for over a decade. The simple design means there is no complicated control panels or fancy design.
9) It can process the oil cake and other mixed waste material to granule at one time. And it is columned granule Feed and have slippery firm.

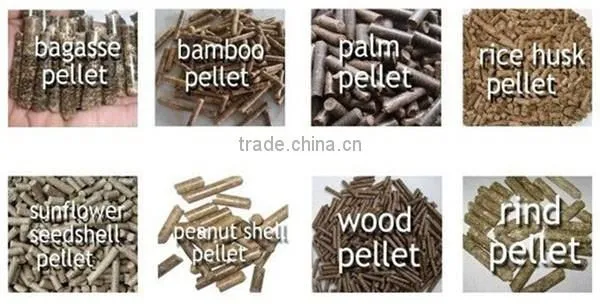

The pellets of wood pellet machine, the pellets can used to wood pellet burner
5.Applied Material -home using wood pellet mill
1) Wood waste, slobs, branch, and palm tree;
2) Bean straw, wheat straw, corn straw, cotton straw, rice straw, rice husk
3) Cotton shell, peanut shell, rice shell, palm tree, coconut shell
6.Requirements for making the pellet-wood pellet mill
1) Size of raw materials: powder or no longer than 1cm
2) Moisture content of raw materials: 10-15%
3) Raw materials can be the mixture of 2 or more than 2 kinds different materials, they must be evenly mixed.
4) No adhesive or chemicals need in the processing
The technology parameters of small wood pellet machine:
APPEARANCE |
DRIVEN BY |
MODEL |
POWER |
CAPACITY (kg/h) |
WEIGHT (nw/gw) |
PACKING SIZE (mm) |
|
Electric motor |
ZLSP-D 150B |
5.5kW |
50-100 |
95/110 |
800x450x700 |
ZLSP-D 200B |
7.5 kW |
80-120 |
200/230 |
1050x480x930 |
||
ZLSP-D 230B |
11 kW |
120-200 |
290/320 |
1180x540x1000 |
||
ZLSP-D 260B |
15 kW |
160-250 |
320/360 |
1240x540x950 |
||
ZLSP-D 300B |
22 kW |
250-400 |
350/380 |
1300x560x1100 |
||
|
Electric motor |
ZLSP-D 150C |
5.5kW |
60-110 |
105/125 |
1000x480x780 |
ZLSP-D 200C |
7.5 kW |
80-120 |
210x230 |
1050x550x830 |
||
ZLSP-D 230C |
11 kW |
120-200 |
290/320 |
1200x560x950 |
||
ZLSP-D 260C |
15 kW |
160-250 |
340/370 |
1240x560x1000 |
||
ZLSP-D 300C |
22 kW |
250-400 |
425/465 |
1300X620X1100 |
||
|
Diesel engine |
ZLSP-D 150A |
8HP |
50-100 |
180/220 |
100x500x750 |
ZLSP-D 200A |
15 HP |
80-120 |
210/240 |
1460x750x900 |
||
ZLSP-D 230A |
22 HP |
120-200 |
280/310 |
1560x850x1100 |
||
ZLSP-D 260A |
30 HP |
160-250 |
330/360 |
1200x500x1070 |
||
ZLSP-D 300A |
41 HP |
250-400 |
410-450 |
1220x600x1000 |
||
|
Gasoline engine |
ZLSP-150Q
|
7.5HP |
90-120 |
180-220 |
1000x500x750 |
|
PTO |
ZLSP-D 150P |
≥8 HP |
50-100 |
90-110 |
900x540x1020 |
ZLSP-D 200P |
≥15 HP |
80-120 |
130/150 |
1000x540x1020 |
||
ZLSP-D 230P |
≥22 HP |
120-200 |
175/200 |
1000x540x1020 |
||
ZLSP-D 260P |
≥33 HP |
160-250 |
235/255 |
1050x540x900 |
||
ZLSP-D 300P |
≥41 HP |
250-400 |
305/325 |
1100x540x1000 |
Henan Donging Heavy Industry Equipment CO.,LTD is a new energy equipment, high humidity material drying equipment, environmental protection and research-based professional development of enterprise groups, is the only domestic industry drying equipment research and development, design, production and sales of high-tech enterprise group, and the first certified by ISO quality management system. Dongding Heavy Industry Equipment is a project co-drying equipment, Tsinghua University, Henan University research base, China Petroleum and Chemical Industry Federation drying technology professional group member units, Henan Province, the top ten most of the growth of science and technology enterprises.
As a professional manufacture,we are supply Vacuum dryer,rotary dryer, wood pellet machine, biomass pellet machine, coal gasifier,sawdust burner,wood/biomass pellet burner, wood/biomass prowder burner,biomass gasifier,wood chipper,wood hammer mill and other machine.
Export standard container 20GP OR 40GP,40HQ,FR container,In bulk,the spare parts in wooden case.
About the machine:
Q1. Does this machine can make wood pellets?
Answer: This machine can make both wood pellets and feed pellets. When making feed pellets, it performs better and the capacity is bigger.
Q2. What are the spare parts for this series pellet machine?
Answer: The spare parts for this machine are one die and two rollers.
Q3. How often should I change the spare parts?
Answer: The long life time of the die and rollers is 1500 hours at least. It needs to change the easy wear parts every five months. If maintained and used well, the parts can be used about EIGHT months or more.
Q4. How often would the machine need to be serviced?
Answer: Every three months is the best for the machine.
Q5. Does the raw materials require any additives to aid in the forming of the pellets?
Answers: It doesn't need to add any additives to aid in the forming of pellets. The only thing you need to do is to control the moisture of the raw materials properly.
