India market good selling coco peat dryer machine/coco pith dryer with best drying effort
1. Working Principle Of coco peat dryer machine:
The coco peat from coco peat dryer machine was sent to hopper by belt conveyor or bucket elevator and then by the feeding machine of hopper through charging pipe into the feeding side.
The slope of feeding pipeline from coco peat dryer machine should bigger than the materials' natural dip angle, in order to raw material smoothly flow into the dryer machine.
The drum of coco peat dryer machine is a rotary drum which is slightly obliquely with the horizontal line. Add the materials from the higher side, heating body goes into the lower end, form countercurrent contact with materials, also exists the heat body and materials together concurrent flow into the barrel. Along with the cylinder rotating, the materials move to the lower end by gravity.

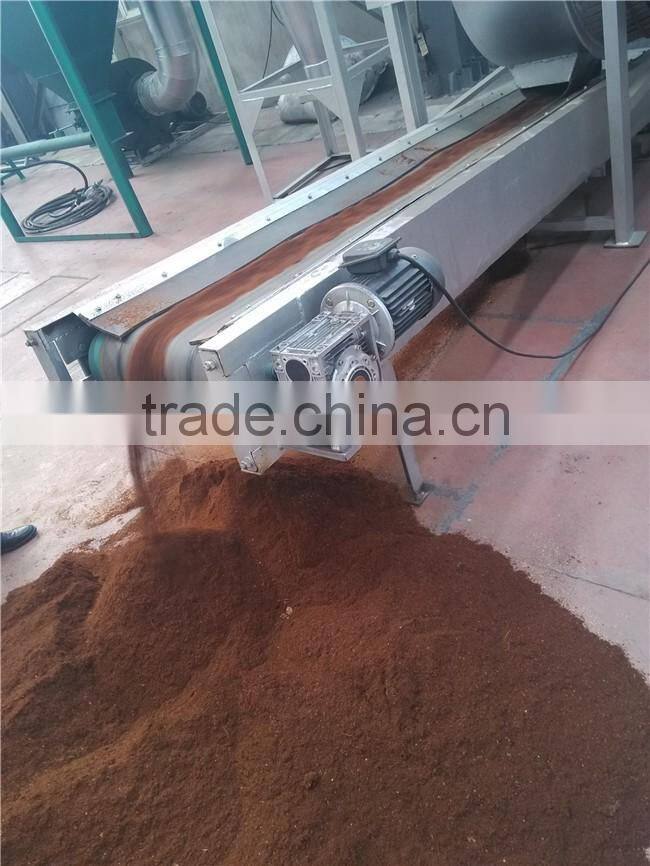

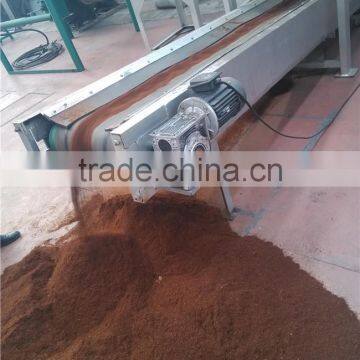

During the moving process of coco peat drying system, wet materials in the cylinder directly or indirectly got heat from the heating body, make wet materials to dry, then in the discharging end the materials were sent out by belt conveyor or screw conveyor.
The simeple drying system of coco peat dryer machine

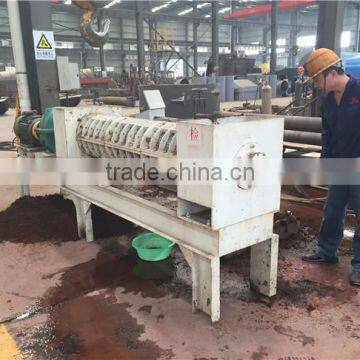

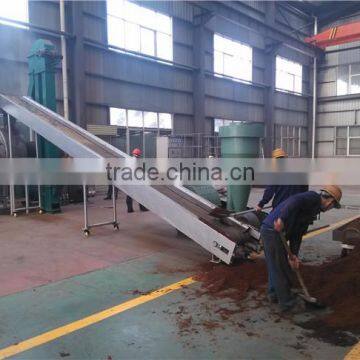

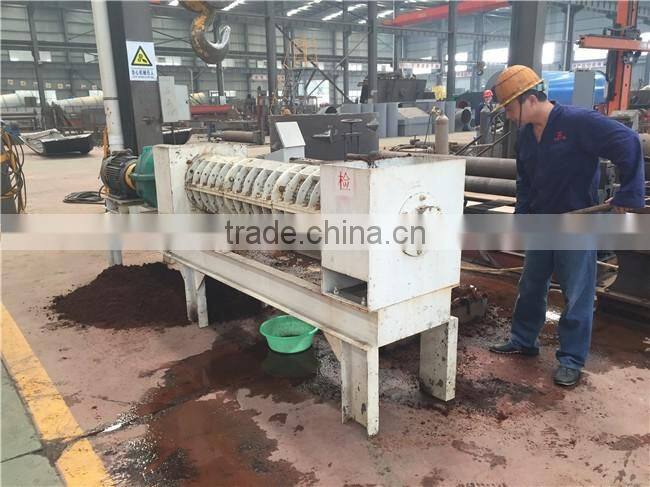

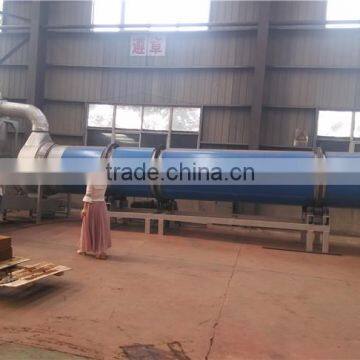

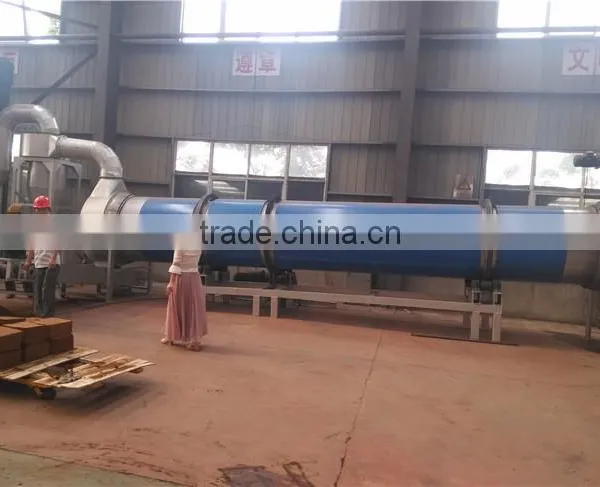

coco peat dryer machine system testing at our factory
The technology Parameters of Coco peat dryer:
Model | Diameter (m) | Length (m) | speed | Installation obliquity (%) | Drying temperature (°c) | Capacity (t/h) | Motor (kw) | Weight (ton)
|
Φ0.8x8 | 0.8
| 8 | 3-6 | 3-5% | ≥800 | 0.6-0.8 | 3 | 3 |
Φ1.0x10 | 1.0
| 10 | 3-6 | 3-5% | ≥800 | 1-1.5 | 4 | 7 |
Φ1.2x10 | 1.2
| 10 | 3-6 | 3-5% | ≥800 | 1.8-2 | 7.5 | 14 |
Φ1.2x12 | 1.2
| 12 | 3-6 | 3-5% | ≥800 | 2-3 | 11 | 15 |
Φ1.5x15 | 1.5
| 15 | 3-6 | 3-5% | ≥800 | 3-3.5 | 15 | 20 |
Φ1.8x18 | 1.8
| 18 | 3-6 | 3-5% | ≥800 | 5.0-5.5 | 18.5 | 30 |
Φ1.8x20 | 1.8
| 20 | 3-6 | 3-5% | ≥800 | 5.5 | 18.5 | 33 |
Φ2.2x20 | 2.2
| 20 | 3-6 | 3-5% | ≥800 | 6.5-7.0 | 22 | 56 |
Φ2.4x20 | 2.4
| 20 | 3-6 | 3-5% | ≥800 | 7.5-8 | 30 | 60 |
Φ2.5x20 | 2.5
| 20 | 3-5 | 3-5% | ≥800 | 8-9 | 30 | 63 |
Φ2.5x25 | 2.5
| 25 | 3-5 | 3-5% | ≥800 | 10-11 | 37 | 68 |
Φ2.8x20 | 2.8
| 20 | 3-5 | 3-5% | ≥800 | 13-15 | 45 | 75 |
Φ2.8x30 | 2.8
| 30 | 3-5 | 3-5% | ≥800 | 18-20 | 55 | 83 |
Φ3.0x20 | 3.0
| 20 | 3-5 | 3-5% | ≥800 | 18-20 | 55 | 78 |
Φ3.0x22 | 3.0
| 22 | 3-5 | 3-5% | ≥800 | 20-25 | 55 | 80 |
Φ3.0x30 | 3.0
| 30 | 3-5 | 3-5% | ≥800 | 25-28 | 75 | 90 |
Export standard container 20GP OR 40GP,40HQ,FR container,In bulk,the spare parts in wooden case.
Some case of our rotary dryer shipping to customer
Henan Donging Heavy Industry Equipment CO.,LTD is a new energy equipment, high humidity material drying equipment, environmental protection and research-based professional development of enterprise groups, is the only domestic industry drying equipment research and development, design, production and sales of high-tech enterprise group, and the first certified by ISO quality management system. Dongding Heavy Industry Equipment is a project co-drying equipment, Tsinghua University, Henan University research base, China Petroleum and Chemical Industry Federation drying technology professional group member units, Henan Province, the top ten most of the growth of science and technology enterprises.
As a professional manufacture,we are supply machinery as below:
1.) Rotary dryer,coco peat dryer machine, Wood chips dryer,Brewer grain dryer and other dryer
2.) Wood pellet machine, Biomass pellet machine, Animal feed pellet machine,Small pellet machine
3.)Coal gasifier,Biomass gasifier,MSW gasifier,coco peat burner,wood pellet burner,biomass pellet burner, wood/biomass prowder burner and others
4.)wood chipper,wood hammer mill,wood crusher and other machine.
Customer visit our factory of coco peat dryer machine
