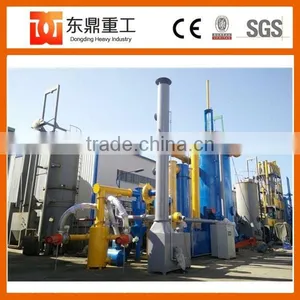

SGS cerification Biomass gasifier/biomass gasifier stove
- 10 Set / Sets per Month
- QIngdao tianjin or shanghai
- T/T
Product Details
Condition: | New | Place of Origin: | Henan, China | Brand Name: | Dongding Heavy Industry |
Model Number: | DG-900-3600 | Voltage: | 220V 380V 450V 600V | Power(W): | 5.5-110kw |
Weight: | 10-40 ton | Dimension(L*W*H): | Types | Certification: | CE BV SGS |
Warranty: | 1-2 years | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

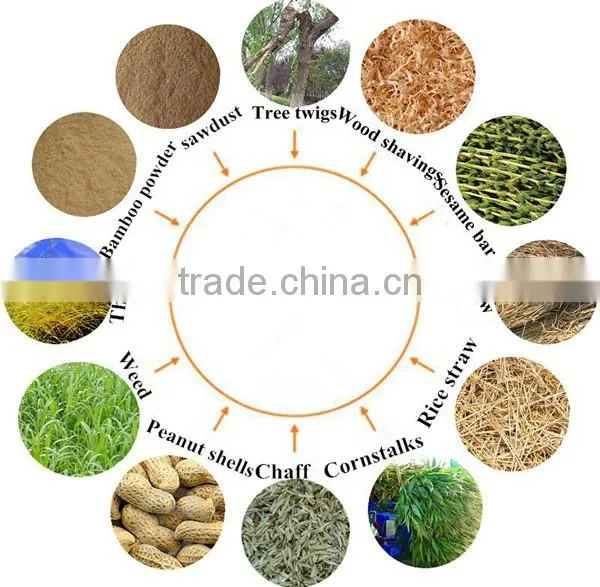

Biomass gasifier raw material
The basic principle of biomass gasification system is to convert Agriculture and forestry products and wood processing remains (including rick husks, wood powder, branches, offcuts, corn straws, rice straws, wheat straws, cotton straws, fruit shells, coconut shells, palm shells, bagasse, corncobs and etc.) into combustible gas . It is then used as fuel in thermal and electric power application. Biomass gasification successfully conquers the disadvantages of biomass, such as low flammability and wide diversity. Biomass gasification system is characteristic of small land requirement and environment friendly. It’s one of the most effective way of biomass utilization.
Notes of biomass gasfiier:
1)The hot gas mode normally has more than 80-85% thermal effieciency.
2)The gas temperature is normally more than 600 degree.
3) Normally hot gas mode is good enough for many applications which the customer's existing equipment are using coal, diesel, bunker, Heavy fuel oil and etc.
Cold gas type process includes includes two steps. The First step is biomass gasification, which convert biomass into syngas/produer gas. The Second step is syngas/producer gas purification. The producer gas coming from gasifier usually contains contaminants including dust, coke, tar and etc. The contaminants will be removed by the gas purification system to ensure a low temperature and as much clean as natural gas,LPG.
Notes part 2:
1)The cold gas mode normally has more than 70-75% thermal effieciency.
2)The gas temperature is normally less than 40 degree.
3) Normally cold gas mode is good enough for many applications which the customer's existing equipment must use LPG,natural gas or such these clean fuel gas.

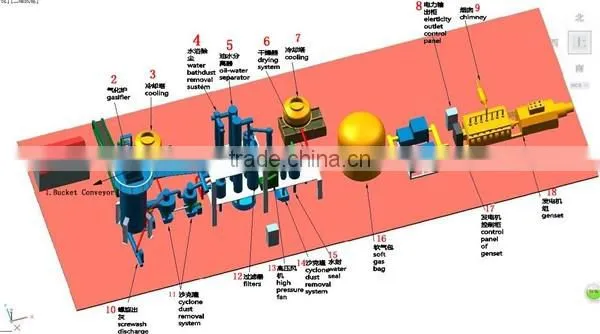

1.Biomass gasifier electricity generator set

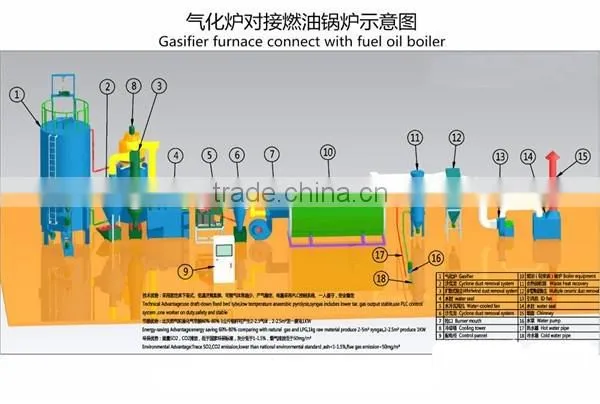

The biomass gasifier/wood gasifier used boiler as heating source

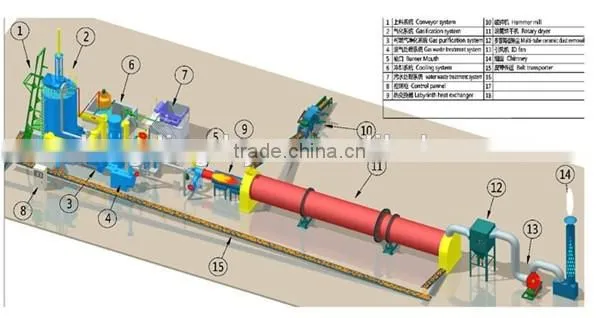

The biomass gasifier/wood gasifier used dryer machine as heating source

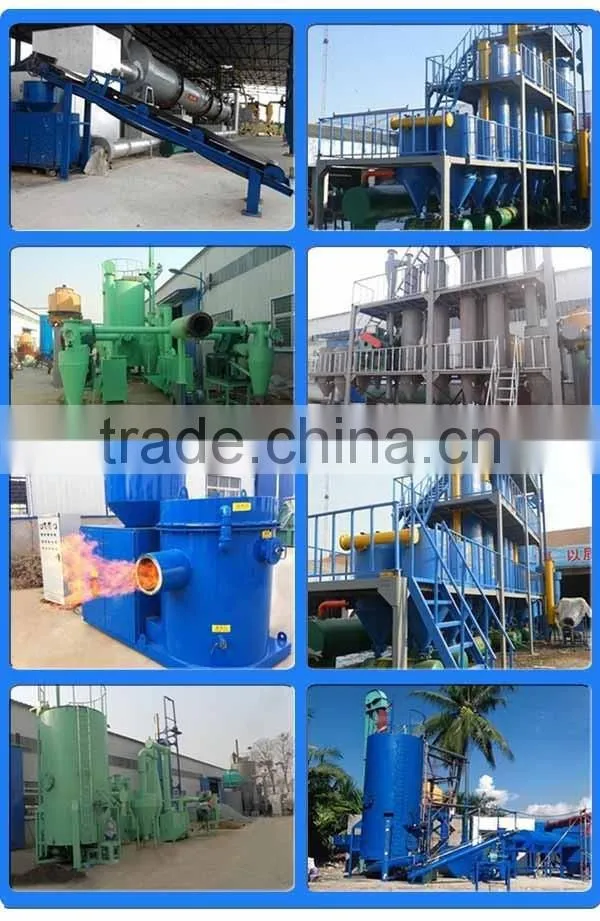

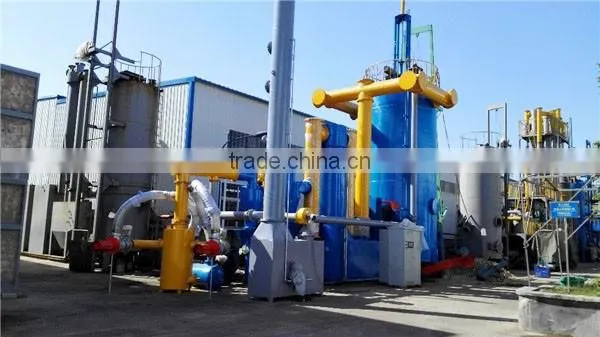

The biomass gasifier at our factory

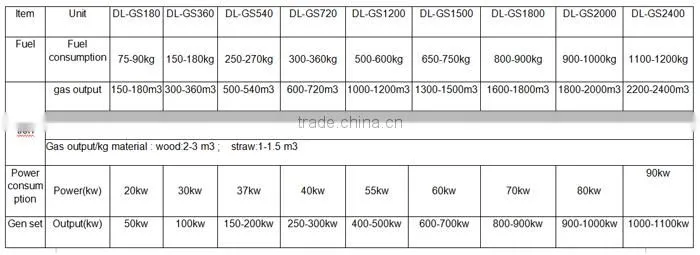

The technicial data of Biomass gasifier

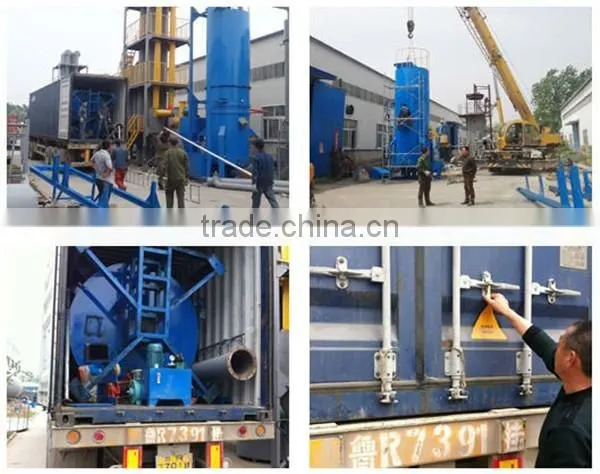

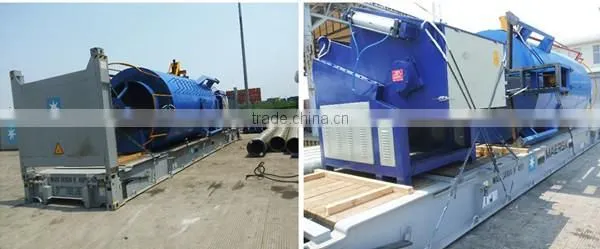

Export standard container 20GP OR 40GP,40HQ,FR container,In bulk,the spare parts in wooden case.
Guarantee And after-sale services:
A: one year guarantee for whole machine
B: 24 hours technical support by email
C: Calling or door-to-door service
D: Use-friendly English software, user manual and detailed video/CD
Henan Donging Heavy Industry Equipment CO.,LTD is a new energy equipment, high humidity material drying equipment, environmental protection and research-based professional development of enterprise groups, is the only domestic industry drying equipment research and development, design, production and sales of high-tech enterprise group, and the first certified by ISO quality management system. Dongding heavy equipment is a project co-drying equipment, Tsinghua University, Henan University research base, China Petroleum and Chemical Industry Federation drying technologyprofessional group member units, Henan Province, the top ten most of the growth of science and technology enterprises.
As a professional manufacture,we are supply rotary dryer, wood pellet machine, biomass pellet machine, coal gasifier,sawdust burner,wood/biomass pellet burner, wood/biomass prowder burner,biomass gasifier,wood chipper,wood hammer mill and other machine.
1) What's the use life of your biomass gasifier furnace?
My answer: 8-10 years if you operate obey our operation manual
2)What’s the consumption per hour of your furnace?
My answer: This is comply with the model you choose, details pls check section 3.
3) Which material do you use?
My answer: New high-temperature composite materials, durable for use.
