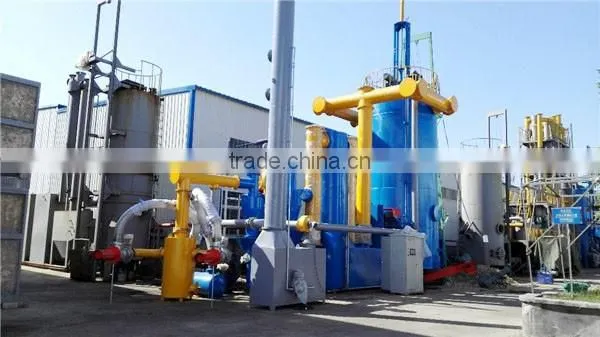

Rice husk gasifier and gas cleaning system meet the standard of international combustion engines,
now our company biomass gasifier, MSW gasifier plant have successfully working in many
countries of the world.
The ricek husk gasifier can produce purify combustion gas then burning as heating source for oil boiler, steam boiler, coal boiler, ceramic kiln (tunnel kiln, roller kiln), dryer machine,industry furnace and so on. There is no harmful gas and ash emission when the biomass gasifier working and the gas burning.

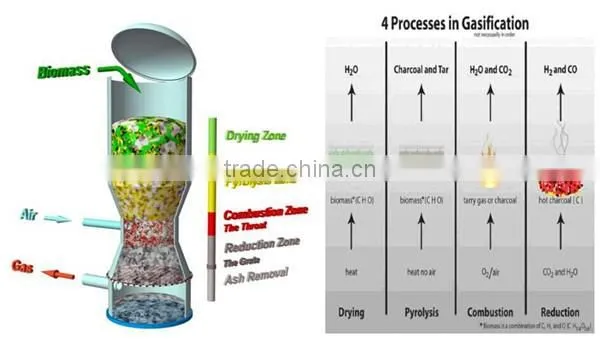

Rice husk gasifier raw material in suitable size and moisture is introduced to the gasifier by feed conveyor. Through incomplete combustion pyrolysis of the biomass raw material in the gasifier by controlling the temperature and oxygen, CO, H2, CH4 and other combustible gases come out. Most of the energy from the solid biomass has turned into biomass gas.
The rice husk gas produced by rice husk gasifier , then transported by negative pressure through the gas cleaning and cooling process. This is where the particulate ash and tar is removed from the gas, and produce a pure combustion gas for use in the internal combustion engine to produce electricity.

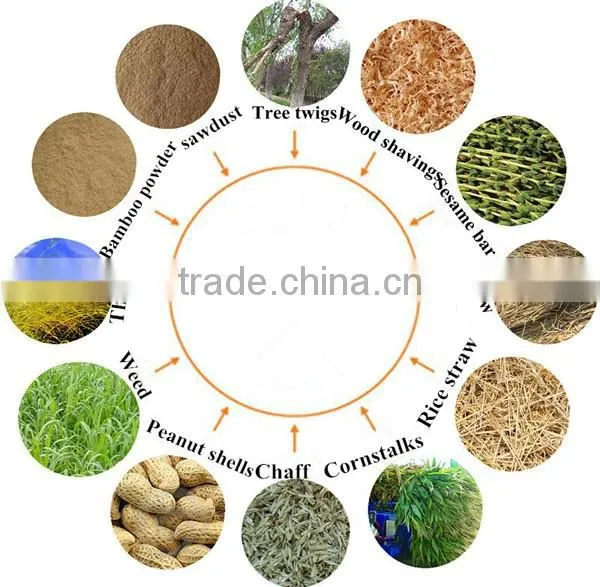

Our biomass rice husk gasifier can use various kinds of agriculture and forestry as fuel (wheat straw, bark, tree root, rice straw, corn stalks, peanut shells,cotton stalks, rice stems, plastic waste ........).
The raw material for the gasifier is very important for gas production, quality of gas, gasifier performance and even maintenance of the gasifier.
Suitable size of raw material: 20mm—80mm, suitable moisture 10%—15%,Size of raw material can vary depending on the type of biomass being used, but the moisture content of any biomass being used is very important and should be less than 15%mc.
Advantages of biomass rice husk gasifier
1.Technical advantage: Use draft-down fixed bed type, low temperature anaerobic pyrolysis, syngas includes lower tar, gas output stable, use PLC control system, one person on duty, safety and stable.
2.Energy-saving advantage: fuel oil(natural gas) can save energy 60%-80%.
3.Environment advantage: Few SO2, CO2 emission, ash <1%-1.5%, flue gas emission <50mg/m3.
4.RQI: Fuel coal boiler can recovery cost within 3-4 months, fuel oil (natural gas) boiler can recovery cost within1-2 months.
5.Application range: apply to any energy needed enterprise.
The technicial data of biomass rice husk gasifier
Export standard container 20GP OR 40GP,40HQ,FR container,In bulk,the spare parts in wooden case.
Guarantee And after-sale services:
A: one year guarantee for whole machine
B: 24 hours technical support by email
C: Calling or door-to-door service
D: Use-friendly English software, user manual and detailed video/CD
Henan Donging Heavy Industry Equipment CO.,LTD is a new energy equipment, high humidity material drying equipment, environmental protection and research-based professional development of enterprise groups, is the only domestic industry drying equipment research and development, design, production and sales of high-tech enterprise group, and the first certified by ISO quality management system. Dongding heavy equipment is a project co-drying equipment, Tsinghua University, Henan University research base, China Petroleum and Chemical Industry Federation drying technologyprofessional group member units, Henan Province, the top ten most of the growth of science and technology enterprises.
As a professional manufacture,we are supply machinery as below:
1.) Rotary dryer,Sawdsut dryer, Lignite dryer,Brewer grain dryer and other dryer
2.) Wood pellet machine, Biomass pellet machine, Animal feed pellet machine,Small pellet machine
3.)Coal gasifier,Biomass gasifier,MSW gasifier,Sawdust burner,wood pellet burner,biomass pellet burner, wood/biomass prowder burner and others
4.)wood chipper,wood hammer mill,wood crusher and other machine.
