Help CenterAlternative Energy MSW Gasifier/Wood Gasifier/Biomass Gasifier With PLC Control Panel
Related Products
-
300kw Biomass Sawdust /waste Wood/rice Husk Gasifier With Good PriceUS$ 65,000 - 65,000MOQ: 1 Set -
Industrial Wood Pellet Biomass Burner to Connect With Steam Boiler, Aluminum Melting FurnaceUS$ 8,400 - 8,400MOQ: 1 Set
-
No-pollution 200 kw Biomass Gasification/wood Gasifier/MSW Gasifier Power Generator With Good QualityUS$ 65,000 - 65,000MOQ: 1 Set
-
200 kw Biomass Gasifier/wood Gasifier Power Plant Widely Used to Many FieldUS$ 65,000 - 65,000MOQ: 1 Set
-
100-500 kw Biomass Gasifier/Biomass Sawdust Gasification to Electricity Power Generator SetUS$ 65,000 - 65,000MOQ: 1 Set

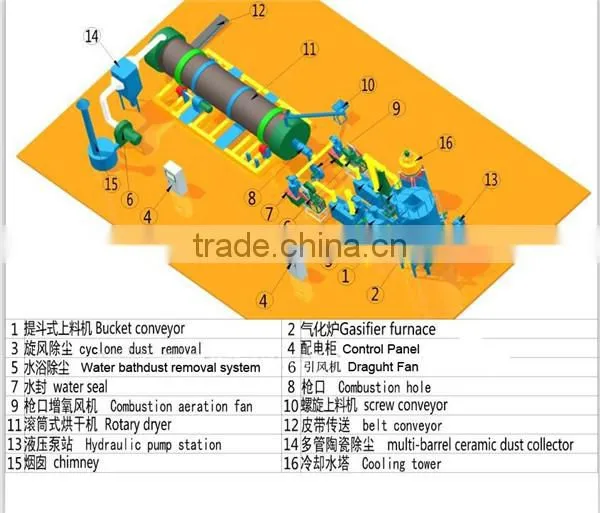

The main parts of MSW gasifier system
1.) Bucket conveyor: the city waste or MSW will go inside of gasifier furnace through this.
2.) Gasifier furnace : olive residue or MSW is fed into this. Through a series of chemical processes, the solid fuel (MSW) is converted to a gaseous fuel (Producer Gas). The gas at the outlet will have some ash and char particulates and will be at above 400 degrees C.
3.) Cooling tower: The gasifier furnace and No.1 cyclone dust removal system are interlayer, we use water cooling system to cool the body of gasifier furnace. It can reduce the temperature of the furnace
4.) Cyclone: This is used to arrest the large particles entrained in the gas generated from the gasifier.
5.) Water cooled fan: This provides the motive power to the whole system. This creates suction in the gasifier which in allows controlled air entry (the control is through the system design) into the system. Thus the biomass is partly burnt and partly reduced to generate Producer Gas.
6.) Air fan: It is used for supply air for the gas burner.
7.) Gas burner: Burn the syngas, then supply heat for other equipments
The raw material of MSW gasifier
The gasifier inside of MSW gasifier

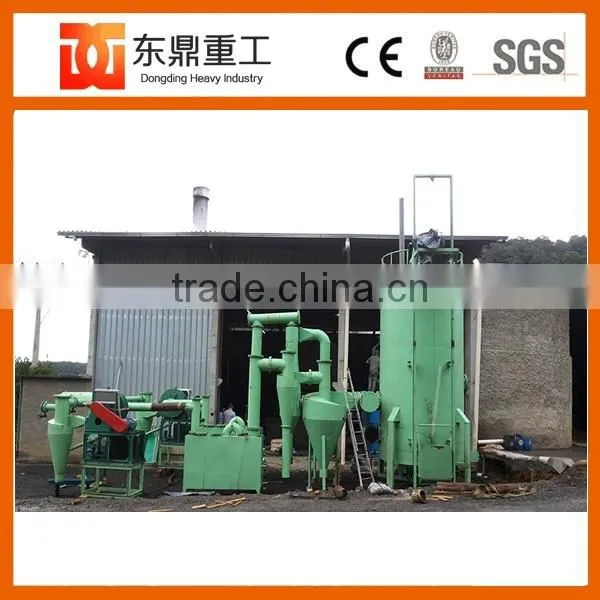

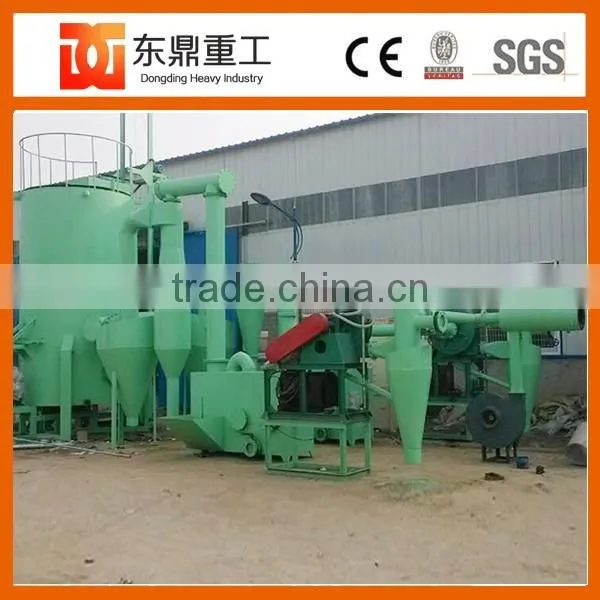

The MSW gasifier working at customer palce

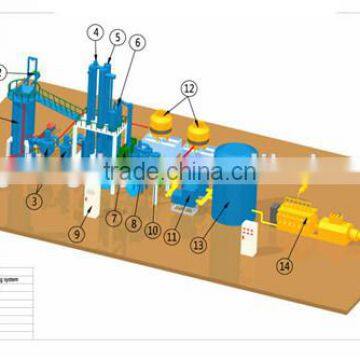

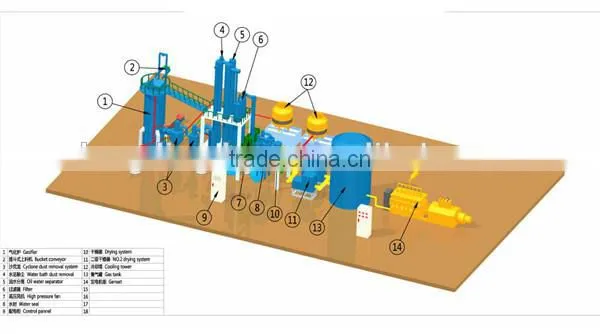

Principle of Gasification system
Incomplete combustion of the biomass in the furnace by controlling the temperature and oxygen through pyrolysis produces CO, H2, CH4 and other combustible gases. Most of the energy from the solid biomass or solid waste has turned into syngas.
Raw material is processed for size and moisture content to meet the requirements of the gasifier furnace. It is then introduced to the furnace by the Raw material in- feed conveyors.
The technicial data of MSW gasifier

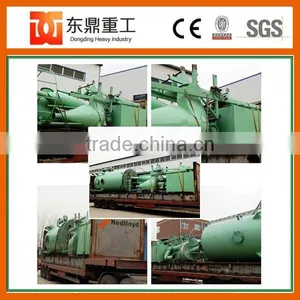

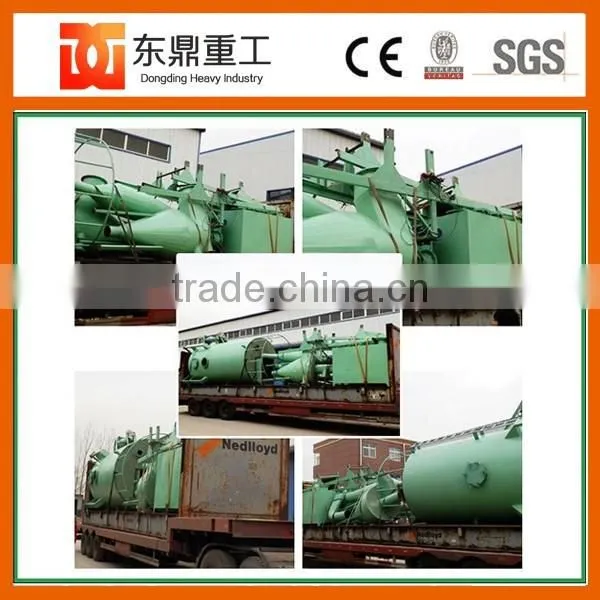

MSW gasifier export standard container 20GP OR 40GP,40HQ,FR container,In bulk,the spare parts in wooden case.
Guarantee And after-sale services of MSW gasifier:
A: one year guarantee for whole machine
B: 24 hours technical support by email
C: Calling or door-to-door service
D: Use-friendly English software, user manual and detailed video/CD
Henan Donging Heavy Industry Equipment CO.,LTD is a new energy equipment, high humidity material drying equipment, environmental protection and research-based professional development of enterprise groups, is the only domestic industry drying equipment research and development, design, production and sales of high-tech enterprise group, and the first certified by ISO quality management system. Dongding heavy equipment is a project co-drying equipment, Tsinghua University, Henan University research base, China Petroleum and Chemical Industry Federation drying technologyprofessional group member units, Henan Province, the top ten most of the growth of science and technology enterprises.
As a professional manufacture,we are supply machinery as below:
1.) Rotary dryer,Sawdsut dryer, Lignite dryer,Brewer grain dryer and other dryer
2.) Wood pellet machine, Biomass pellet machine, Animal feed pellet machine,Small pellet machine
3.)Coal gasifier,Biomass gasifier,MSW gasifier,Sawdust burner,wood pellet burner,biomass pellet burner, wood/biomass prowder burner and others
4.)wood chipper,wood hammer mill,wood crusher and other machine.
