2017 New type good saling QM 0.8 meter coal gasifier used for produce coal gas
Coal gasifier is the process of producing syngas–a mixture consisting primarily of methane (CH4) carbon monoxide (CO), hydrogen (H2), carbon dioxide (CO2) and water vapor (H2O)–from coal and water, air and/or oxygen. Historically, coal was gasified using early technology to produce coal gas (also known as "town gas"), which is a combustible gas traditionally used for municipal lighting and heating before the advent of industrial-scale production of natural gas.
This new type single stage coal gasifier used dry-type ash disposal coal furnace, new intelligent
high-effect environment-friendly products put forward by our company, in which patent slag-removing revolving ash pan and automatically slag removing structure are use.
The coal gaisifer drawing
Operating principles of QM-1 coal gasifier:
This automation coal gasifier uses 10 to 50 mm pea coal as ideal fuel, which largely increases the gasification intensity, accelerates the reaction, improves the gasification rate of coal, and makes charcoal react with vapor to form combustive air such as carbon monoxide and hydrogen, so as to reach complete gasification and produce gas continually and steadily.

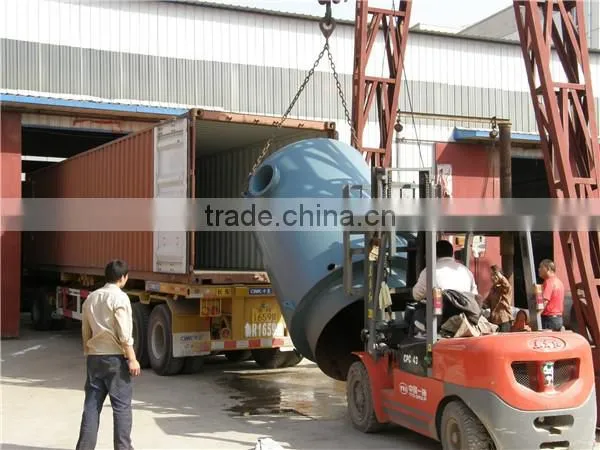

Single stage coal gasifier delivery to customer
Machine Stucture of coal gasifier
A Main body
B Coal load system
C Blower system (the steam mixed with water, blow in to the coal gasifier with blower)
D Ash discharge (rotation wet type auto discharge, no pollution to the enviroment)
E Dust collect system (water seal dust collect)
F Control panel (motor control, humidity instruction, power source together controlled)
G Computer control system (optional)
H Steam system (hot steam recycle, water & steam separator, self relief device, control valves, pump etc.)
I Operation platform(steal structure, for the worker inspection the coal gasifier.)

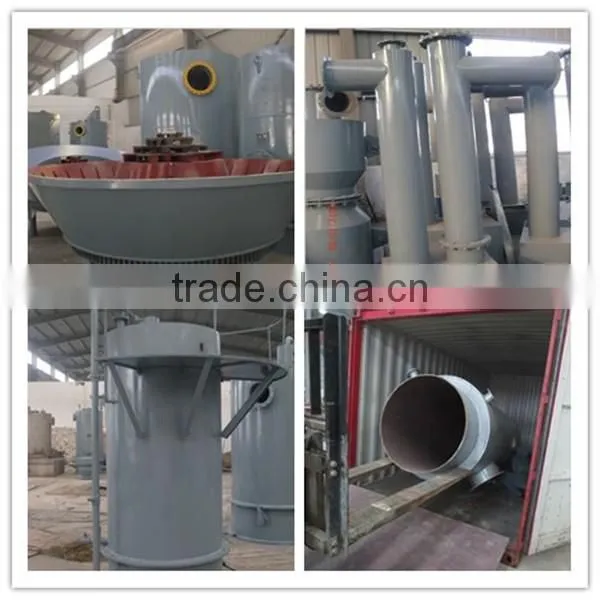

The main parts of coal gasifier
Coal gasifier operating principles:
coal gasifier uses 10 to 50mm pea coal as ideal fuel, which largely increases the gasification intensity,accelerates the reaction, improves the gasification rate of coal, and makes charcoal react with vapor to form combustive air such as carbon monoxide and hydrogen, so as to reach complete gasification and produce gas continually and steadily.

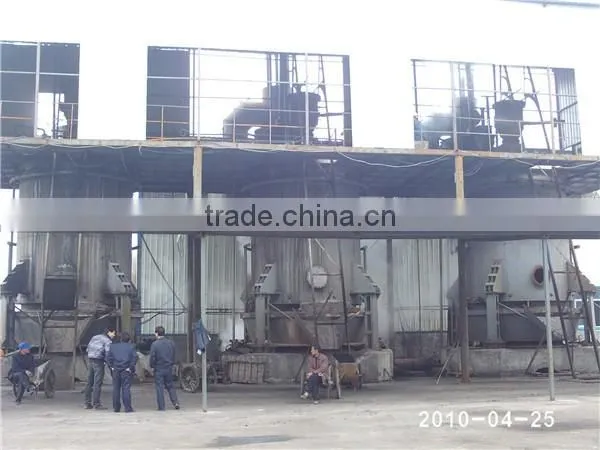

Three set QM 2.0 diameter coal gasifier working site
QM-1 COAL GASIFIER TECHNOLOGIC SPECIFICATION
Name |
unit |
specification |
||||||
I.D.of chamber |
mm |
1600 |
1800 |
2000 |
2400 |
2600 |
3000 |
3200 |
Chamber across-section area |
m2 |
2 |
2.54 |
3.14 |
4.52 |
5.31 |
7.07 |
8.04 |
Fuel layer |
mm |
1000 |
||||||
Fire layer |
mm |
100~300 |
||||||
ash layer |
mm |
100~300 |
||||||
Applicable coal |
Non-caking or weak-caking anthracite, bituminous coal, coke, coal property should be coincident with the requirement of GB9143 |
|||||||
fuel size |
mm |
13~25 25~50 |
||||||
fuel consumption |
Kg/h |
350~460 |
500~600 |
500~720 |
700~1040 |
850~1200 |
1700~2000 |
1800~2200 |
Gasifying agent |
Air,stream |
|||||||
Gas output |
Nm3/h |
1200~1600 |
1500~2100 |
1750~2500 |
2500~3600 |
3000~4300 |
6000~7000 |
6500~7500 |
Net heating value |
KJ/Nm3 |
5020~5670 |
||||||
Gas temperature |
℃ |
400~550 |
||||||
operation pressure of water jacket |
Pa |
<100Kpa |
<294Kpa |
|||||
Steam seal pressure of poking hole |
Pa |
<100Kpa |
<294Kpa |
|||||
Grate driving power |
KW |
4 |
5.5 |
|||||
Coal bucket lifting power |
KW |
1.5 |
3 |
|||||
Equipment weight |
T |
12 |
15 |
19 |
24 |
28 |
42 |
45 |
Coal gasifier export standard container 20GP OR 40GP,40HQ,FR container,In bulk,the spare parts in wooden case.
If you are interested in our coal gasifier, coal gasification power generator set, please contact with us.
