The raw material of MSW gasifier
Raw material is then introduced to the furnace .Incomplete combustion of the biomass in the furnace by controlling the temperature and oxygen through pyrolysis produces CO, H2, CH4 and other combustible gases. Most of the energy from the solid biomass or solid waste has turned into syngas.
The gasifier furnace is draft down fixed bed, in the process, it will produce syngas, at the same time, it also produce ash, wood tar, ect. We add cyclone, air fan and gas burner, the cyclone can remove the ash. For the tar, when the syngas is burned, the temperature is high, then the tar can be burned. Before burning, the gas temperature is 200-300degree.

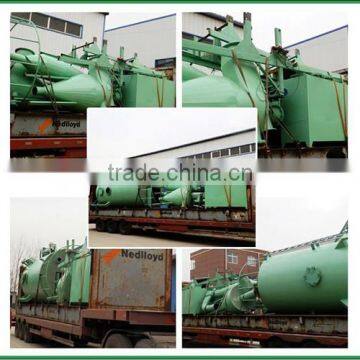

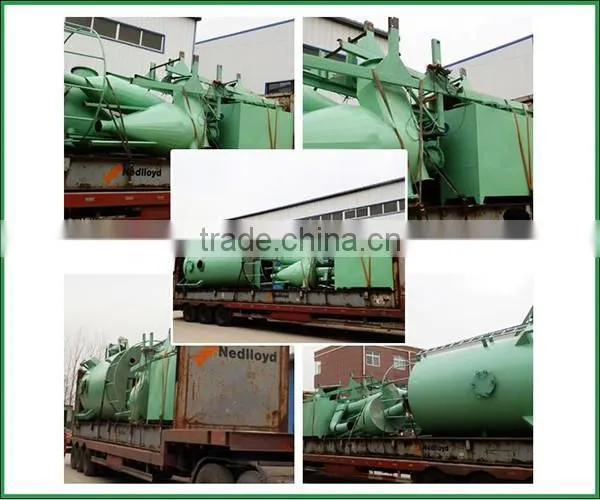

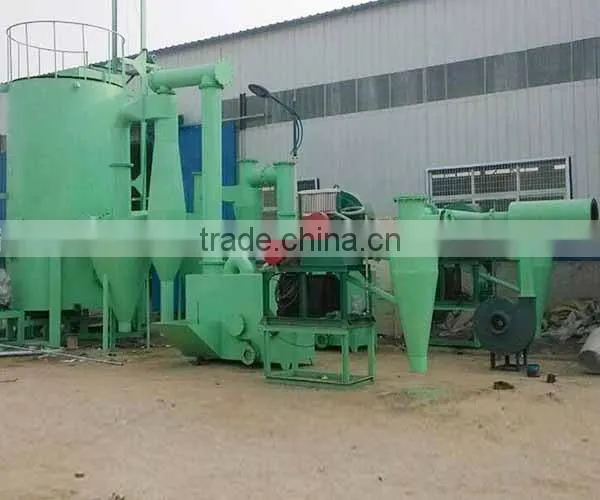

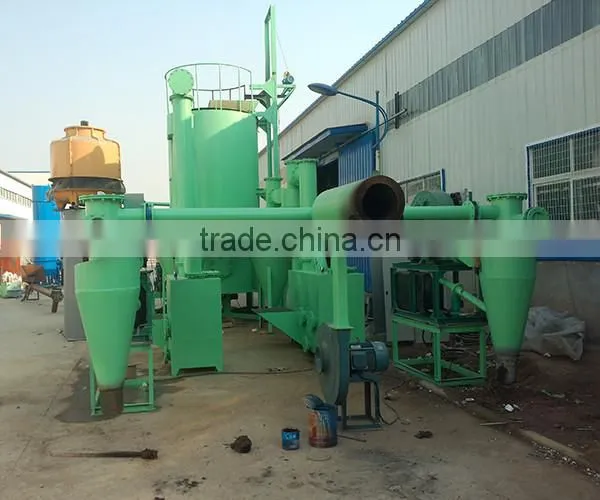

The MSW gasifier at our factory waiting for delivery
MSW gasification is basically conversion of , city waste, solid fuels (wood/ wood-waste, agricultural residues etc.) into a combustible gas mixture normally called Producer Gas. The process is typically used for various biomass materials and it involves partial combustion of such biomass Partial combustion process occurs when air supply (O2) is less than adequate for the complete combustion of biomass.
The gasifier is essentially a chemical reactor where various complex physical and chemical processes take place. Four distinct processes take place in a gasifier are:
The gasifier inside of MSW gasifier

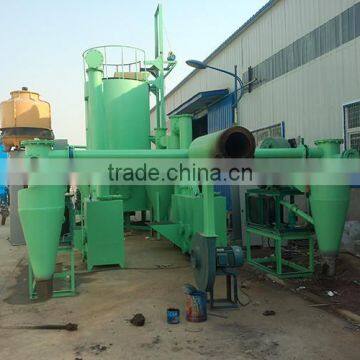

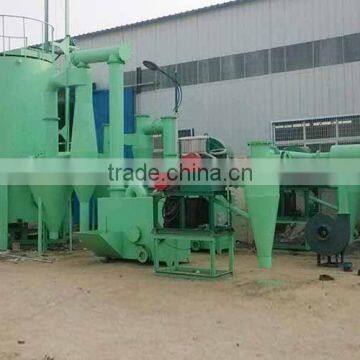

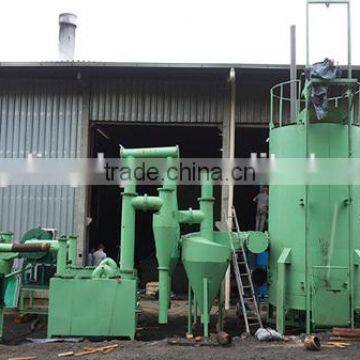

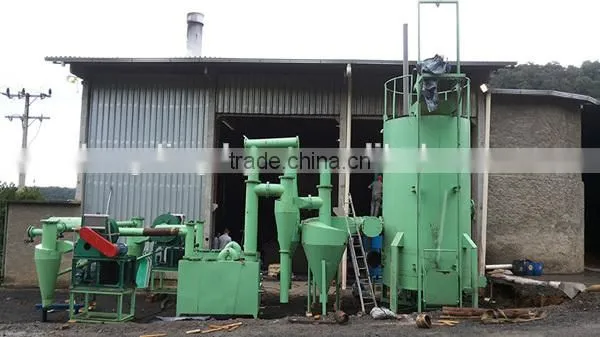

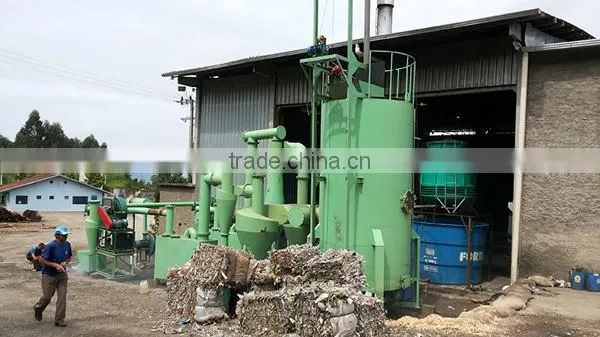

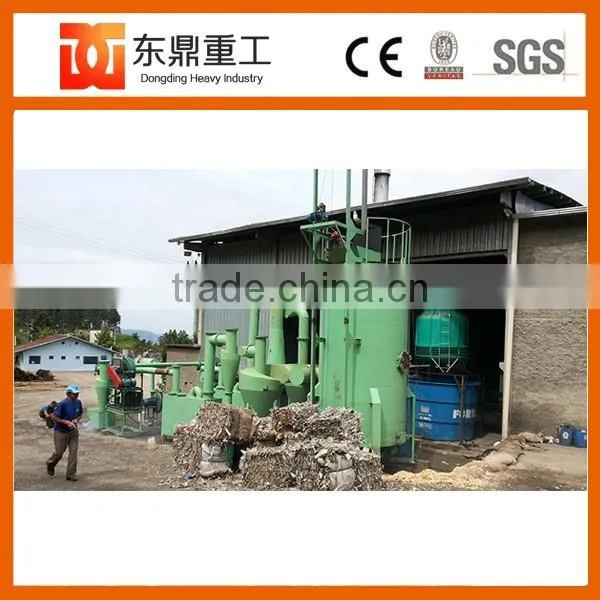

The MSW gasifier working at customer palce
Principle of Gasification system
Incomplete combustion of the biomass in the furnace by controlling the temperature and oxygen through pyrolysis produces CO, H2, CH4 and other combustible gases. Most of the energy from the solid biomass or solid waste has turned into syngas.
Raw material is processed for size and moisture content to meet the requirements of the gasifier furnace. It is then introduced to the furnace by the Raw material in- feed conveyors.
The technicial data of MSW gasifier

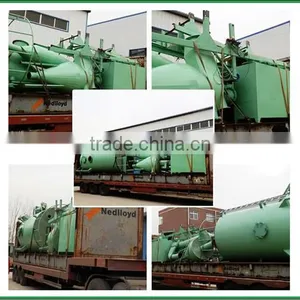

Export standard container 20GP OR 40GP,40HQ,FR container,In bulk,the spare parts in wooden case.
Guarantee And after-sale services:
A: one year guarantee for whole machine
B: 24 hours technical support by email
C: Calling or door-to-door service
D: Use-friendly English software, user manual and detailed video/CD
Henan Donging Heavy Industry Equipment CO.,LTD is a new energy equipment, high humidity material drying equipment, environmental protection and research-based professional development of enterprise groups, is the only domestic industry drying equipment research and development, design, production and sales of high-tech enterprise group, and the first certified by ISO quality management system. Dongding heavy equipment is a project co-drying equipment, Tsinghua University, Henan University research base, China Petroleum and Chemical Industry Federation drying technologyprofessional group member units, Henan Province, the top ten most of the growth of science and technology enterprises.
As a professional manufacture,we are supply rotary dryer, wood pellet machine, biomass pellet machine, coal gasifier,sawdust burner,wood/biomass pellet burner, wood/biomass prowder burner,biomass gasifier,wood chipper,wood hammer mill and other machine.
