Single stage Coal gasifier/coal gasification for gas generation plant
Single stage coal gas generator series:
A new generation of intelligent high-effect environment-friendly products put forward by our company, which have developed from and taken good advantage of dry-type ash-disposal coal gas generator, in which patent deslagging structure is use
Characteristics of coal gas generator:
Our new type coal gas generator use special ash pan, furnace wall always protected by slags, strong effect of slag damaging, slag loosing and ventilation, disposing fundamentally the concept that gas furnace is the same as pressure vessel, heating temperature auto-controlled
Widely used in the environment-friendly and energy-saving technological renovation of gas-processing heating furnace, gas forging furnace, gas crucible furnace, gas mold furnace, grilled ladle gas furnace, sand resin heating gas generator, glass melting gas furnace, ceramic gas furnace, as well as smoke exhausting refractory kiln and tunnel kiln.

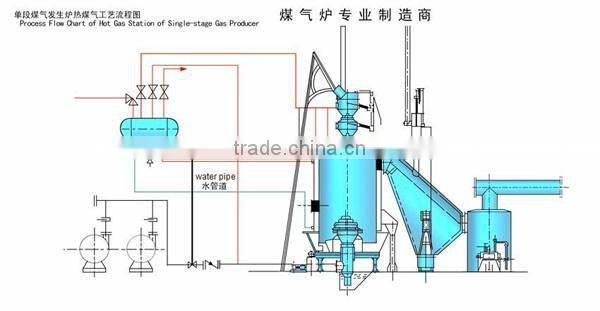

The coal gaisifer drawing
Operating principles of QM-1 coal gas generator:
This automation coal gasifier uses 10 to 50 mm pea coal as ideal fuel, which largely increases the gasification intensity, accelerates the reaction, improves the gasification rate of coal, and makes charcoal react with vapor to form combustive air such as carbon monoxide and hydrogen, so as to reach complete gasification and produce gas continually and steadily.
Machine Stucture of coal gas generator
A Main body
B Coal load system
C Blower system (the steam mixed with water, blow in to the coal gasifier with blower)
D Ash discharge (rotation wet type auto discharge, no pollution to the enviroment)
E Dust collect system (water seal dust collect)
F Control panel (motor control, humidity instruction, power source together controlled)
G Computer control system (optional)
H Steam system (hot steam recycle, water & steam separator, self relief device, control valves, pump etc.)
I Operation platform(steal structure, for the worker inspection the coal gasifier.)

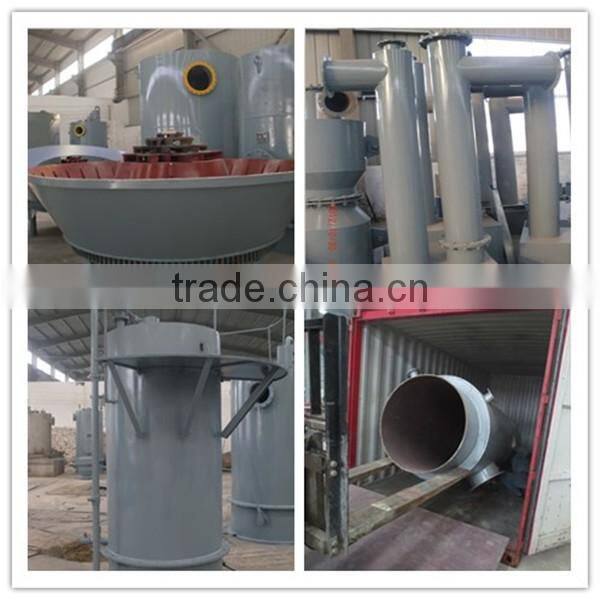

The main parts of coal gas generator
Coal gasifier operating principles:
coal gasifier uses 10 to 50mm pea coal as ideal fuel, which largely increases the gasification intensity,accelerates the reaction, improves the gasification rate of coal, and makes charcoal react with vapor to form combustive air such as carbon monoxide and hydrogen, so as to reach complete gasification and produce gas continually and steadily.
QM-2 COAL GASIFIER SPECIFICATON
items |
unit |
type & certification |
||||
QM0.8 |
QM1.0 |
QM1.2 |
QM1.5 |
QM1.6 |
||
I.D.of chamber |
mm |
800 |
1000 |
1200 |
1500 |
1600 |
Hearth effect area |
M2 |
0.5 |
0.785 |
1.13 |
1.77 |
2.01 |
Applicable fuel |
Non-caking or weak-caking anthracite, bituminous coal, coke, coal property should comply with the requirement of GB9143 |
|||||
Fuel size |
mm |
13-25 25-50 |
||||
Fuel consumption |
Kg/h |
40~100 |
70~140 |
120~190 |
160~350 |
350~460 |
Air agent |
Air, stream |
|||||
Gas output |
Nm3/h |
140~350 |
245~490 |
420~670 |
560~1200 |
1200~1600 |
Net heating value |
Kj/Nm3 |
5020~5670 (related to coal sorts) |
||||
Gas exit temperature |
℃ |
300-500 |
||||
Gas exit pressure |
Pa |
<1000 |
||||
Air pressure |
Pa |
<3000 |
||||
Saturated temperature |
℃ |
50-60 |
||||
Ash tray speed |
R/H |
0.177-1.77 |
||||
Air entrance diameter |
mm |
108 |
108 |
133 |
165 |
219 |
|
Complete machine power |
kw |
<6 |
<6 |
<6 |
<7 |
<8 |
Equipment weight |
T |
3.5 |
4.5 |
5 |
7.5 |
10 |

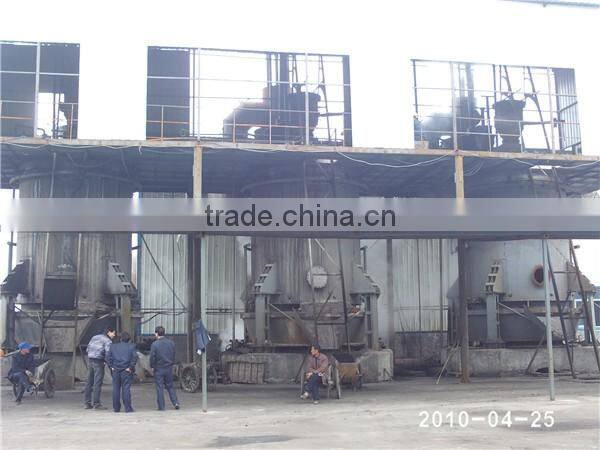

Three set QM 2.0 diameter coal gasifier working site
Export standard container 20GP OR 40GP,40HQ,FR container,In bulk,the spare parts in wooden case.
