2017 New High efficient Anthricate coal gasifier/coal gasification for dryer machine, furnace
Coal gasifier Usage:
Our company designs the manufacturer producer gas generator, is take the air and the steam as vaporization medicinalpreparation, production combination gas advanced equipment, this equipments suits the vaporization coking coal, fuel and so on Jiao Tan, widely applies in machine, metallurgy, chemical industry, glass, building materials, light industry, food, textile industry heating dry kiln.
Coal gasifier Features:
1) the use producer gas generator may enhance the thermal efficiency, also the coal burning if full, many reduce the energy to disappear, with direct coal-burning, may reduce disappears 20-40 otranslation.
2) The use producer gas generator may cause the necessary kiln stove temperature big 1500°, moreover, in kilin temperature difference.
3) The producer gas generator conforms to the industry kiln gas to discharge the GB9079.88 waste residue the platoon, uses the wet dregs, does not have the dirt has certain social efficieny.
4) The use producer gas generator may imporve the worker to work obviously the environment, reducers the labor intensity, since therefore being published deeply user’s welcome.

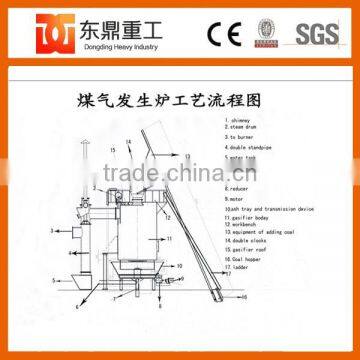

The coal gaisifer drawing
Operating principles of QM-1 coal gasifier:
This automation coal gasifier uses 10 to 50 mm pea coal as ideal fuel, which largely increases the gasification intensity, accelerates the reaction, improves the gasification rate of coal, and makes charcoal react with vapor to form combustive air such as carbon monoxide and hydrogen, so as to reach complete gasification and produce gas continually and steadily.
Machine Stucture of coal gasifier
A Main body
B Coal load system
C Blower system (the steam mixed with water, blow in to the coal gasifier with blower)
D Ash discharge (rotation wet type auto discharge, no pollution to the enviroment)
E Dust collect system (water seal dust collect)
F Control panel (motor control, humidity instruction, power source together controlled)
G Computer control system (optional)
H Steam system (hot steam recycle, water & steam separator, self relief device, control valves, pump etc.)
I Operation platform(steal structure, for the worker inspection the coal gasifier.)

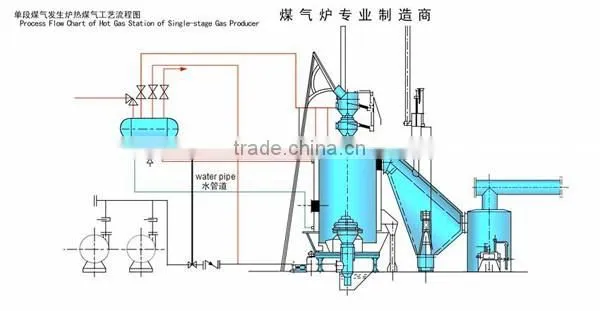

The main parts of coal gasifier
Coal gasifier operating principles:
coal gasifier uses 10 to 50mm pea coal as ideal fuel, which largely increases the gasification intensity,accelerates the reaction, improves the gasification rate of coal, and makes charcoal react with vapor to form combustive air such as carbon monoxide and hydrogen, so as to reach complete gasification and produce gas continually and steadily.

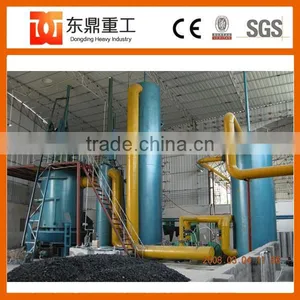

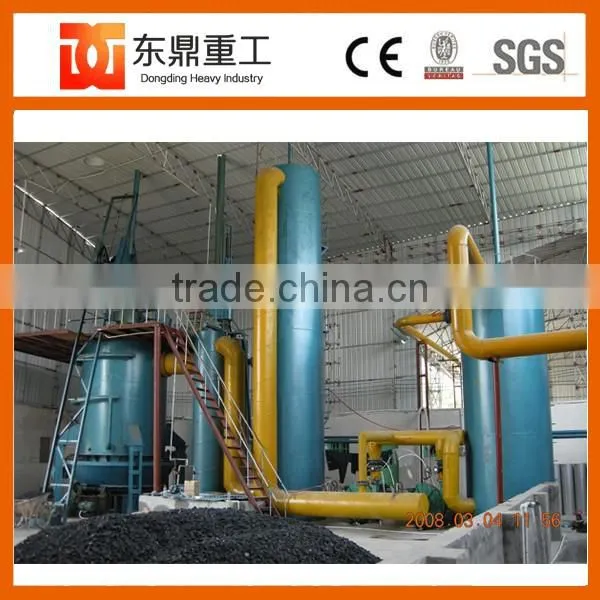

Three set QM 2.0 diameter coal gasifier working site
QM-2 COAL GASIFIER SPECIFICATON
items |
unit |
type & certification |
||||
QM0.8 |
QM1.0 |
QM1.2 |
QM1.5 |
QM1.6 |
||
I.D.of chamber |
mm |
800 |
1000 |
1200 |
1500 |
1600 |
Hearth effect area |
M2 |
0.5 |
0.785 |
1.13 |
1.77 |
2.01 |
Applicable fuel |
Non-caking or weak-caking anthracite, bituminous coal, coke, coal property should comply with the requirement of GB9143 |
|||||
Fuel size |
mm |
13-25 25-50 |
||||
Fuel consumption |
Kg/h |
40~100 |
70~140 |
120~190 |
160~350 |
350~460 |
Air agent |
Air, stream |
|||||
Gas output |
Nm3/h |
140~350 |
245~490 |
420~670 |
560~1200 |
1200~1600 |
Net heating value |
Kj/Nm3 |
5020~5670 (related to coal sorts) |
||||
Gas exit temperature |
℃ |
300-500 |
||||
Gas exit pressure |
Pa |
<1000 |
||||
Air pressure |
Pa |
<3000 |
||||
Saturated temperature |
℃ |
50-60 |
||||
Ash tray speed |
R/H |
0.177-1.77 |
||||
Air entrance diameter |
mm |
108 |
108 |
133 |
165 |
219 |
Complete machine power |
kw |
<6 |
<6 |
<6 |
<7 |
<8 |
Equipment weight |
T |
3.5 |
4.5 |
5 |
7.5 |
10 |
Export standard container 20GP OR 40GP,40HQ,FR container,In bulk,the spare parts in wooden case.
