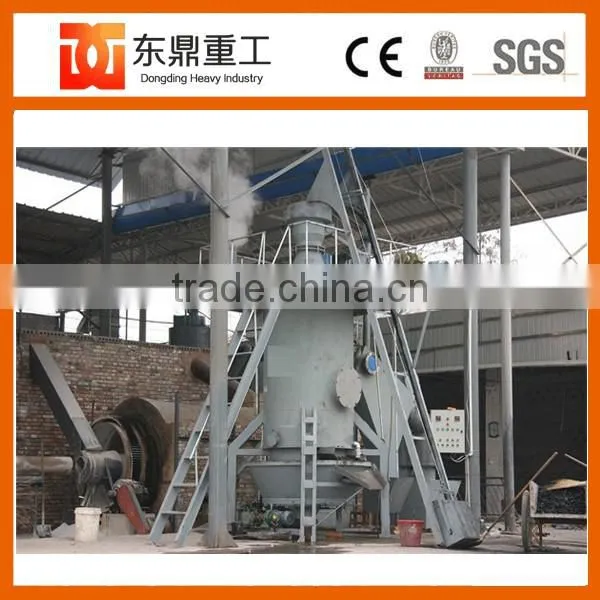

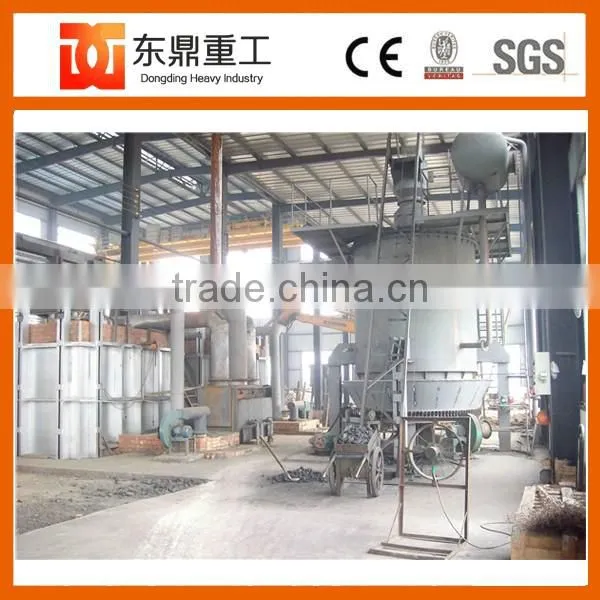

2017 New Type Coal Gasifier/coal gasification Used for Produce Coal Gas
coal gasifier Characteristics:
1.This type coal gasifier is we are special design to energy-saving and environment-friendly:
2.With high efficient coal gasifier,the calories of re-burning 1kg standard sized coal equals to that of 0.6kg gasoline, 0.3kg liquefied petroleum gas and 6.5 degrees of electricity.
3.The smoke emission of coal gasifier is complies with the GB9078-96 environment-friendly standard,our coal gasifier is burning no pollution.
4.Our company can design and produce coal gasifier and other air heating furnace according to users' requirement.
5.We also undertake the renovation of all kinds of oil fuel, natural gas, coal fuel and electric air heating furnace with the heating cost 70% less than electricity, 40 to 60% oil, 30% gas
6.Coal gasifier use reciprocating grate cleaner: strong ability to break and loosen slags as well as to ventilate with slim chance of slag bonding
7.Special ash grate design of coal gasifier: grate protected by low-temperature slags to prolong the grate's service time largely
8.When we design this type coal gasifier ,we are in consideration of safety,so we design extensive water seal explosion preventing grooves at the part of ash hopper: apt to react and safe to use
9.Combination of air producing and other heating equipment: convenient to control temperature
10.Gas produced immediately by burning coal when it is needed: needless to remove ash, reduce temperature or add pressure, with the manufacturing cost largely reduced.
QM-2 COAL GASIFIER SPECIFICA
items |
unit |
type & certification |
||||
QM0.8 |
QM1.0 |
QM1.2 |
QM1.5 |
QM1.6 |
||
I.D.of chamber |
mm |
800 |
1000 |
1200 |
1500 |
1600 |
Hearth effect area |
M2 |
0.5 |
0.785 |
1.13 |
1.77 |
2.01 |
Applicable fuel |
Non-caking or weak-caking anthracite, bituminous coal, coke, coal property should comply with the requirement of GB9143 |
|||||
Fuel size |
mm |
13-25 25-50 |
||||
Fuel consumption |
Kg/h |
40~100 |
70~140 |
120~190 |
160~350 |
350~460 |
Air agent |
Air, stream |
|||||
Gas output |
Nm3/h |
140~350 |
245~490 |
420~670 |
560~1200 |
1200~1600 |
Net heating value |
Kj/Nm3 |
5020~5670 (related to coal sorts) |
||||
Gas exit temperature |
℃ |
300-500 |
||||
Gas exit pressure |
Pa |
<1000 |
||||
Air pressure |
Pa |
<3000 |
||||
Saturated temperature |
℃ |
50-60 |
||||
Ash tray speed |
R/H |
0.177-1.77 |
||||
Air entrance diameter |
mm |
108 |
108 |
133 |
165 |
219 |
Complete machine power |
kw |
<6 |
<6 |
<6 |
<7 |
<8 |
Equipment weight |
T |
3.5 |
4.5 |
5 |
7.5 |
10 |
