Introduction of coal slime drying machine :
coal slime is a kind of lowest degree coalification coal mining.
Due to the coal slime is rich in volatile components,So it is easy not to burn and have smoke. coal slime as fuel for power plants, also can used for chemical raw materials, catalyst carriers, adsorbents, sewage purification and recovery of metal.
In view of the coal slime contains more impurities, coal slime and other coal resources mined to go through the washing, elect more high quality coal residue in the washing process, because of the high moisture difficult to burn and inconvenient to use,in the past year coal slime as a waste of resources.
In order to reduce the waste of resources, our company professional design the new type coal slime dryer to drying coal slime, coal moisture evaporation be used to reduce waste. coal slime after drying that can produce briquettes for cooking and heating, it can also be used as a source of activated carbon for water treatment, recovery of gold and extraction of iodine.

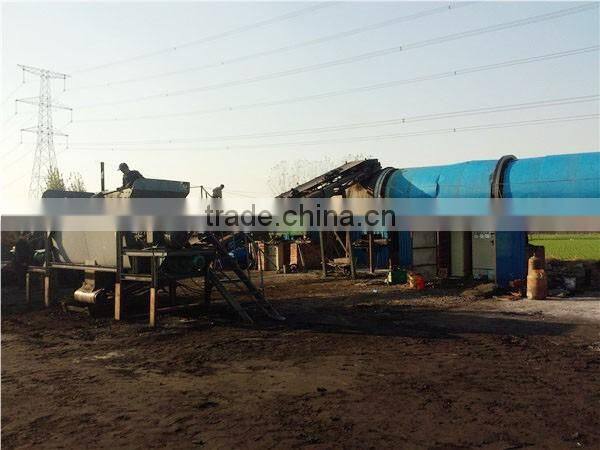

coal slime drying machine system working site 300 ton per day:
coal slime drying machine technology features:
Our company research and development of energy-saving drum drying technology and equipment is coal slime drying new technology:
1.control the best temperature of the material put into the dryer, and the material output temperature.
2.This coal slime dryer use specially designed lifting plate,this lifting plate is different to common dryer lifting plate.
3.Determine the evaporation intensity of coal slime dryer can be control.
4.Volatile loss control coal slime drying process
5.To control feed size of coal slime drying effect
6.Control the degree of fragmentation in the coal slime drying process
7.Research coal slime drying damp characteristics
8.Ensure the security of the drying process, as well as the safety of workers
9.Study emissions harmful content in the exhaust gas, reduce air pollution
coal slime drying machine working site 1000 ton per day
The simple drawing of coal slime drying machine system:
The technology Parameters of coal slime drying machine:
Model |
Diameter (m) |
Length (m) |
speed |
Installation obliquity (%) |
Drying temperature (°c) |
Capacity (t/h) |
Motor (kw) |
Weight (ton) |
Φ1.8x18 |
1.8
|
18 |
3-6 |
3-5% |
≥800 |
5.0-5.5 |
18.5 |
30-35 |
Φ1.8x20 |
1.8
|
20 |
3-6 |
3-5% |
≥800 |
5.5 |
18.5 |
33-38 |
Φ2.2x20 |
2.2
|
20 |
3-6 |
3-5% |
≥800 |
6.5-7.0 |
22 |
56-60 |
Φ2.4x20 |
2.4
|
20 |
3-6 |
3-5% |
≥800 |
7.5-8 |
30 |
60-65 |
Φ2.5x20 |
2.5
|
20 |
3-5 |
3-5% |
≥800 |
8-9 |
30 |
63-68 |
Φ2.5x25 |
2.5
|
25 |
3-5 |
3-5% |
≥800 |
10-11 |
37 |
68-73 |
Φ2.8x20 |
2.8
|
20 |
3-5 |
3-5% |
≥800 |
13-15 |
45 |
75-80 |
Φ2.8x30 |
2.8
|
30 |
3-5 |
3-5% |
≥800 |
18-20 |
55 |
83-88 |
Φ3.0x20 |
3.0
|
20 |
3-5 |
3-5% |
≥800 |
18-20 |
55 |
78-85 |
Φ3.0x22 |
3.0
|
22 |
3-5 |
3-5% |
≥800 |
20-25 |
55 |
80-90 |
Φ3.0x30 |
3.0
|
30 |
3-5 |
3-5% |
≥800 |
25-28 |
75 |
90-100 |
Export standard container 20GP OR 40GP,40HQ,FR container,In bulk,the spare parts in wooden case.
Some case of our rotary dryer shipping to customer
Henan Donging Heavy Industry Equipment CO.,LTD is a new energy equipment, high humidity material drying equipment, environmental protection and research-based professional development of enterprise groups, is the only domestic industry drying equipment research and development, design, production and sales of high-tech enterprise group, and the first certified by ISO quality management system. Dongding Heavy Industry Equipment is a project co-drying equipment, Tsinghua University, Henan University research base, China Petroleum and Chemical Industry Federation drying technology professional group member units, Henan Province, the top ten most of the growth of science and technology enterprises.
As a professional manufacture,we are supply machinery as below:
1.) Rotary dryer,lignite coal dryer, coal slime drying machine,Brewer grain dryer and other dryer
2.) Wood pellet machine, Biomass pellet machine, Animal feed pellet machine,Small pellet machine
3.)Coal gasifier,Biomass gasifier,MSW gasifier,Sawdust burner,wood pellet burner,biomass pellet burner, wood/biomass prowder burner and others
4.)wood chipper,wood hammer mill,wood crusher and other machine.
If you have any need of coal slime drying machine,lignite dryer,coal dryer and others, please contact with us.
