Introduction of lignite coal dryer :
lignite coal is a kind of lowest degree coalification coal mining.
Due to the lignite coal is rich in volatile components,So it not easy to burn and have smoke. lignite coal as fuel for power plants, also can used for chemical raw materials, catalyst carriers, adsorbents, sewage purification and recovery of metal.
In view of the lignite contains more impurities, lignite and other coal resources mined to go through the washing, elect more high quality coal residue in the washing process, because of the high moisture difficult to burn and inconvenient to use,in the past year lignite coal as a waste of resources.
In order to reduce the waste of resources, our company professional design the new type lignite dryer machine to drying lignite coal, coal moisture evaporation be used to reduce waste. lignite coal after drying that can produce briquettes for cooking and heating, it can also be used as a source of activated carbon for water treatment, recovery of gold and extraction of iodine.

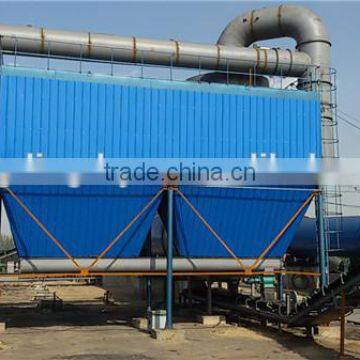

lignite dryer machine system working site 300 ton per day:
The description of lignite dryer machine:
lignite coal dryer mainly consists of Dryer cylinder ,raw materials feeding plate(feed head), rolling ring,roller, motor,speed reducer, driving and supporting device, etc.
The description of lignite dryer machine :
lignite dryer mainly consists of Dryer cylinder ,raw materials feeding plate(feed head), rolling ring,roller, motor,speed reducer, driving and supporting device, etc.
lignite dryer machine technology features:
Our company research and development of energy-saving drum drying technology and equipment is lignite coal drying new technology:
1.control the best temperature of the material put into the dryer, and the material output temperature.
2.This lignite dryer machine use specially designed lifting plate,this lifting plate is different to common dryer lifting plate.
3.Determine the evaporation intensity of lignite coal dryer can be control.
4.Volatile loss control lignite coal drying process
5.To control feed size of lignite coal drying effect
6.Control the degree of fragmentation in the lignite coal drying process
7.Research lignite coal drying damp characteristics
8.Ensure the security of the drying process, as well as the safety of workers
9.Study emissions harmful content in the exhaust gas, reduce air pollution
lignite dryer machine working site 1000 ton per day
The lignite dryer machine system equipment:
The lignite dryer machine system mainly consists of burning furnace,feed conveyor, dryer machine, output conveyor, dust catcher,electrical cabinet and others.
lignite dryer machine working site with capacity 500 ton per day
The technology Parameters of lignite dryer machine:
Model |
Diameter (m) |
Length (m) |
speed |
Installation obliquity (%) |
Drying temperature (°c) |
Capacity (t/h) |
Motor (kw) |
Weight (ton) |
Φ1.8x18 |
1.8
|
18 |
3-6 |
3-5% |
≥800 |
5.0-5.5 |
18.5 |
30-35 |
Φ1.8x20 |
1.8
|
20 |
3-6 |
3-5% |
≥800 |
5.5 |
18.5 |
33-38 |
Φ2.2x20 |
2.2
|
20 |
3-6 |
3-5% |
≥800 |
6.5-7.0 |
22 |
56-60 |
Φ2.4x20 |
2.4
|
20 |
3-6 |
3-5% |
≥800 |
7.5-8 |
30 |
60-65 |
Φ2.5x20 |
2.5
|
20 |
3-5 |
3-5% |
≥800 |
8-9 |
30 |
63-68 |
Φ2.5x25 |
2.5
|
25 |
3-5 |
3-5% |
≥800 |
10-11 |
37 |
68-73 |
Φ2.8x20 |
2.8
|
20 |
3-5 |
3-5% |
≥800 |
13-15 |
45 |
75-80 |
Φ2.8x30 |
2.8
|
30 |
3-5 |
3-5% |
≥800 |
18-20 |
55 |
83-88 |
Φ3.0x20 |
3.0
|
20 |
3-5 |
3-5% |
≥800 |
18-20 |
55 |
78-85 |
Φ3.0x22 |
3.0
|
22 |
3-5 |
3-5% |
≥800 |
20-25 |
55 |
80-90 |
Φ3.0x30 |
3.0
|
30 |
3-5 |
3-5% |
≥800 |
25-28 |
75 |
90-100 |
Export standard container 20GP OR 40GP,40HQ,FR container,In bulk,the spare parts in wooden case.
