Help CenterProfessional Manufacturer Coal Slime Dryer/lignite Drying Machine Supply
Related Products
-
Low Calorific Value Coal Slime Drying Machine/lignite Rotary Dryer/coal Dryer ManufacturerUS$ 20,000 - 20,000MOQ: 1 Set -
800 Ton per Day Low Energy Consumption Coal Slime Dryer Machine/Coal Powder Rotary Dryers Low Price SupplierUS$ 20,000 - 20,000MOQ: 1 Set
-
No Pollution Lignite/brown Coal/coal Slime Rotary Dryer With Safety OperationUS$ 20,000 - 20,000MOQ: 1 Set
-
1200 Ton per Day Large Capacity Brown Coal Drying Equipment/coal Slime Dryer From Indonesia and MalaysiaUS$ 20,000 - 20,000MOQ: 1 Set
-
Good Selling 8 Ton Coal Slime Dryer Machine/brown Coal Rotary Dryer With Good QualityUS$ 20,000 - 20,000MOQ: 1 Set
coal slime rotary dryer application
1, In coal industry, dry the flotation clean coal, raw coal, coal slime, mixing clean coal, etc.
2, In building industry, dry sand, clay, limestone, blast furnace slag, quartz stone, bentonite, etc.
3, In mineral processing industries, dry various metal concentrate, tailings, waste residue, etc.
4, In chemical industry, can dry non-thermal sensitive material.
coal slime rotary dryer performance characteristics
al slime rotary dryer has great handling ability, fuel consumption less, low drying cost.
2.High temperature resistant, this dryer can use high temperature and hot air to dry materials rapidly.
al slime dryer expanded ability is strong, design considered production surplus, even if yield increased slightly, also need not changing equipment.
al slime dry adopts “self-aligning type” tug structure,tug match up well with rolling ring, and greatly reduce wear and power consumption.
5.Special designed catch wheel structure, greatly reduces tilt of the equipment which work provides the horizontal thrust.
6.Environmental protection.
7.Dry and moisture control, minimum up to 5% or less, meet material widely.

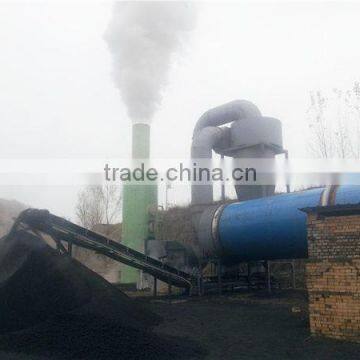

coal slime rotary dryer system working site 300 ton per day:
coal slime rotary dryer operating principle
1. A rolling cylinder which slightly inclines is the main part of coal slime dryer. The wet materials are fed from the higher end of the cylinder when the heating media are being sent through the lower end.
2. Under influence of the gravity,wet materials flow downwards to the lower end and contact the heating media directly or indirectly.
3. There is a stirring plate on the inner wall of the cylinder to
stir materials continuously and make them have a full contact with air stream.
coal slime rotary dryer structure
al slime rotary dryer is formed by rotary body, lifting blade, driving device, supporting device and sealing ring.
al slime rotary dryer is mainly composed of shell, back and forth supporting wheel, feeding and discharging unit and gear cap.
3. The accessories which are not in the scope of this machine include firebox, feeding and discharging equipment, dust catcher, etc.

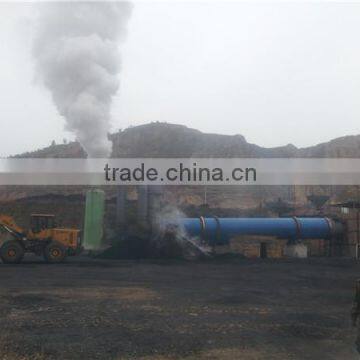

coal slime rotary dryer working site 1000 ton per day
The simple drawing of coal slime rotary dryer system:
The technology Parameters of coal slime rotary dryer:
Model |
Diameter (m) |
Length (m) |
speed |
Installation obliquity (%) |
Drying temperature (°c) |
Capacity (t/h) |
Motor (kw) |
Weight (ton) |
Φ1.8x18 |
1.8
|
18 |
3-6 |
3-5% |
≥800 |
5.0-5.5 |
18.5 |
30-35 |
Φ1.8x20 |
1.8
|
20 |
3-6 |
3-5% |
≥800 |
5.5 |
18.5 |
33-38 |
Φ2.2x20 |
2.2
|
20 |
3-6 |
3-5% |
≥800 |
6.5-7.0 |
22 |
56-60 |
Φ2.4x20 |
2.4
|
20 |
3-6 |
3-5% |
≥800 |
7.5-8 |
30 |
60-65 |
Φ2.5x20 |
2.5
|
20 |
3-5 |
3-5% |
≥800 |
8-9 |
30 |
63-68 |
Φ2.5x25 |
2.5
|
25 |
3-5 |
3-5% |
≥800 |
10-11 |
37 |
68-73 |
Φ2.8x20 |
2.8
|
20 |
3-5 |
3-5% |
≥800 |
13-15 |
45 |
75-80 |
Φ2.8x30 |
2.8
|
30 |
3-5 |
3-5% |
≥800 |
18-20 |
55 |
83-88 |
Φ3.0x20 |
3.0
|
20 |
3-5 |
3-5% |
≥800 |
18-20 |
55 |
78-85 |
Φ3.0x22 |
3.0
|
22 |
3-5 |
3-5% |
≥800 |
20-25 |
55 |
80-90 |
Φ3.0x30 |
3.0
|
30 |
3-5 |
3-5% |
≥800 |
25-28 |
75 |
90-100 |
Export standard container 20GP OR 40GP,40HQ,FR container,In bulk,the spare parts in wooden case.
Some case of our rotary dryer shipping to customer
Henan Donging Heavy Industry Equipment CO.,LTD is a new energy equipment, high humidity material drying equipment, environmental protection and research-based professional development of enterprise groups, is the only domestic industry drying equipment research and development, design, production and sales of high-tech enterprise group, and the first certified by ISO quality management system. Dongding Heavy Industry Equipment is a project co-drying equipment, Tsinghua University, Henan University research base, China Petroleum and Chemical Industry Federation drying technology professional group member units, Henan Province, the top ten most of the growth of science and technology enterprises.
As a professional manufacture,we are supply machinery as below:
1.) Rotary dryer,lignite coal dryer, coal slime dryer,Brewer grain dryer and other dryer
2.) Wood pellet machine, Biomass pellet machine, Animal feed pellet machine,Small pellet machine
3.)Coal gasifier,Biomass gasifier,MSW gasifier,Sawdust burner,wood pellet burner,biomass pellet burner, wood/biomass prowder burner and others
4.)wood chipper,wood hammer mill,wood crusher and other machine.
If you have any need of coal slime dryer,lignite dryer,coal dryer and others, please contact with us.
