Main structure of wood chips dryer
1. wood chips dryer is composed of the cylinder, before and after the roller circle, a large gear, gear roll, drag roller, a small gear, a feeding device, lifting plate, reducer, motor, feeding devices and other components.
2. According to client needs, furnace and the combustion chamber, bucket elevator, belt conveyor, feeder, dust and other system equipment can be designed, and steam coal could be used as heat resources.
Main advantages of wood chips dryer
1. The wood chips dryer's design is reasonable, have reliable performance, high efficiency, dry and heat uniform, maintenance convenient.
2. Resistance to overload ability, cylinder smooth operation and high reliability,lower fuel consumption and dry cost.
3. wood chips dryer has the characteristics of high temperature resistant, high temperature hot air could be used for a rapid drying of material.
The simeple of wood chips dryer system

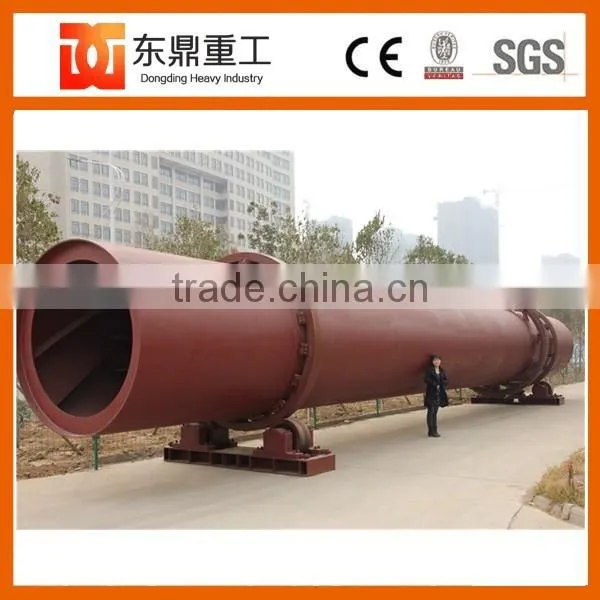

Detail parts and information of wood chips dryer
The technology Parameters of wood chips Dryer:
Model |
Diameter (m) |
Length (m) |
speed |
Installation obliquity (%) |
Drying temperature (°c) |
Capacity (t/h) |
Motor (kw) |
Weight (ton)
|
Φ0.8x8 |
0.8
|
8 |
3-6 |
3-5% |
≥800 |
0.6-0.8 |
3 |
3 |
Φ1.0x10 |
1.0
|
10 |
3-6 |
3-5% |
≥800 |
1-1.5 |
4 |
7 |
Φ1.2x10 |
1.2
|
10 |
3-6 |
3-5% |
≥800 |
1.8-2 |
7.5 |
14 |
Φ1.2x12 |
1.2
|
12 |
3-6 |
3-5% |
≥800 |
2-3 |
11 |
15 |
Φ1.5x15 |
1.5
|
15 |
3-6 |
3-5% |
≥800 |
3-3.5 |
15 |
20 |
Φ1.8x18 |
1.8
|
18 |
3-6 |
3-5% |
≥800 |
5.0-5.5 |
18.5 |
30 |
Φ1.8x20 |
1.8
|
20 |
3-6 |
3-5% |
≥800 |
5.5 |
18.5 |
33 |
Φ2.2x20 |
2.2
|
20 |
3-6 |
3-5% |
≥800 |
6.5-7.0 |
22 |
56 |
Φ2.4x20 |
2.4
|
20 |
3-6 |
3-5% |
≥800 |
7.5-8 |
30 |
60 |
Φ2.5x20 |
2.5
|
20 |
3-5 |
3-5% |
≥800 |
8-9 |
30 |
63 |
Φ2.5x25 |
2.5
|
25 |
3-5 |
3-5% |
≥800 |
10-11 |
37 |
68 |
Φ2.8x20 |
2.8
|
20 |
3-5 |
3-5% |
≥800 |
13-15 |
45 |
75 |
Φ2.8x30 |
2.8
|
30 |
3-5 |
3-5% |
≥800 |
18-20 |
55 |
83 |
Φ3.0x20 |
3.0
|
20 |
3-5 |
3-5% |
≥800 |
18-20 |
55 |
78 |
Φ3.0x22 |
3.0
|
22 |
3-5 |
3-5% |
≥800 |
20-25 |
55 |
80 |
Φ3.0x30 |
3.0
|
30 |
3-5 |
3-5% |
≥800 |
25-28 |
75 |
90 |
Export standard container 20GP OR 40GP,40HQ,FR container,In bulk,the spare parts in wooden case.

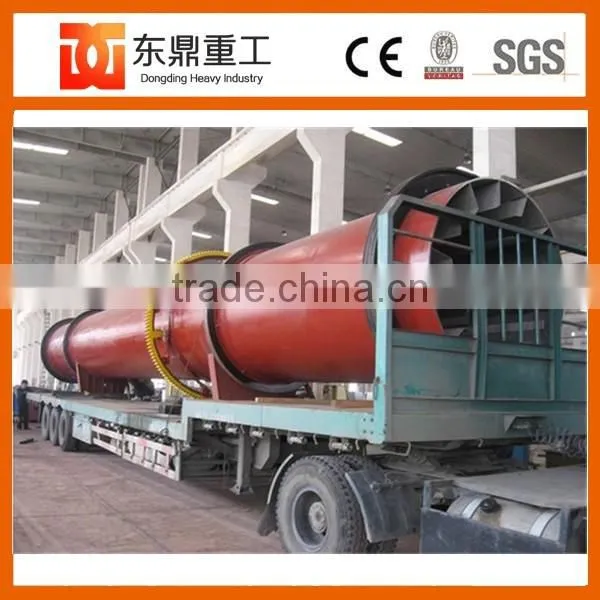

Some case of our rotary dryer shipping to customer
Henan Donging Heavy Industry Equipment CO.,LTD is a new energy equipment, high humidity material drying equipment, environmental protection and research-based professional development of enterprise groups, is the only domestic industry drying equipment research and development, design, production and sales of high-tech enterprise group, and the first certified by ISO quality management system. Dongding Heavy Industry Equipment is a project co-drying equipment, Tsinghua University, Henan University research base, China Petroleum and Chemical Industry Federation drying technology professional group member units, Henan Province, the top ten most of the growth of science and technology enterprises.
As a professional manufacture,we are supply machinery as below:
1.) Rotary dryer,Sawdust dryer, Wood chips dryer,Brewer grain dryer and other dryer
2.) Wood pellet machine, Biomass pellet machine, Animal feed pellet machine,Small pellet machine
3.)Coal gasifier,Biomass gasifier,MSW gasifier,wood chips burner,wood pellet burner,biomass pellet burner, wood/biomass prowder burner and others
4.)wood chipper,wood hammer mill,wood crusher and other machine.
