wood shavings rotary dryer is to use screw conveyor transports the wet sawdust of the continuous entering into the dryer.In the high speed transmission and dispersion of hot air,wet material moisture to evaporate quickly,when the moisture reach need and get drying sawdust, all the drying process finish. This sawdust drying system main included:heating source,conveyor equipment,rotary dryer,dust catcher,fan, output conveyor equipment and other equipment.
wood shavings rotary dryer features:
1.our wood shavings rotary dryer with large intensity of drying,the material being lifted and fully contact with hot air, this increase the drying efficiency.
2. The drying time is very short,and the drying moisture is can be control with need,this wood shavings rotary dryer can be adjust with drying efficiency.
3.our new type wood shavings rotary dryer have a simple structure ,small footprint,easy to operation and maintain.
4.our professional wood shavings rotary dryer have a large capacity,high drying efficiency,when drying the out water can reach 60%.
The simeple of wood shavings rotary dryer system
Detail parts and information of wood shavings rotary dryer

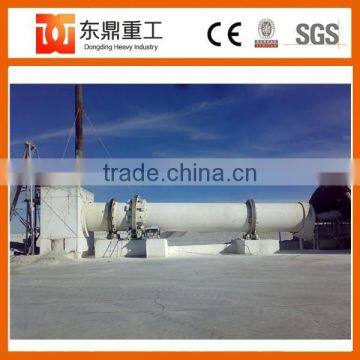

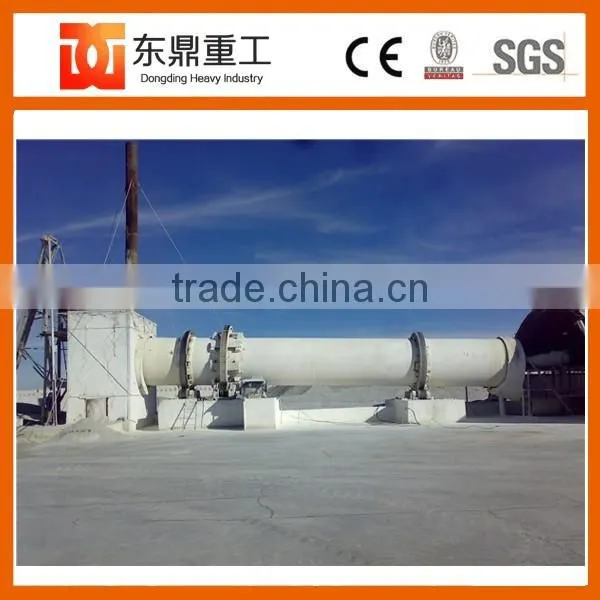

wood shavings rotary dryer working site:
The technology Parameters of Wood shavings rotary dryer:
Model |
Diameter (m) |
Length (m) |
speed |
Installation obliquity (%) |
Drying temperature (°c) |
Capacity (t/h) |
Motor (kw) |
Weight (ton)
|
Φ0.8x8 |
0.8
|
8 |
3-6 |
3-5% |
≥800 |
0.6-0.8 |
3 |
3 |
Φ1.0x10 |
1.0
|
10 |
3-6 |
3-5% |
≥800 |
1-1.5 |
4 |
7 |
Φ1.2x10 |
1.2
|
10 |
3-6 |
3-5% |
≥800 |
1.8-2 |
7.5 |
14 |
Φ1.2x12 |
1.2
|
12 |
3-6 |
3-5% |
≥800 |
2-3 |
11 |
15 |
Φ1.5x15 |
1.5
|
15 |
3-6 |
3-5% |
≥800 |
3-3.5 |
15 |
20 |
Φ1.8x18 |
1.8
|
18 |
3-6 |
3-5% |
≥800 |
5.0-5.5 |
18.5 |
30 |
Φ1.8x20 |
1.8
|
20 |
3-6 |
3-5% |
≥800 |
5.5 |
18.5 |
33 |
Φ2.2x20 |
2.2
|
20 |
3-6 |
3-5% |
≥800 |
6.5-7.0 |
22 |
56 |
Φ2.4x20 |
2.4
|
20 |
3-6 |
3-5% |
≥800 |
7.5-8 |
30 |
60 |
Φ2.5x20 |
2.5
|
20 |
3-5 |
3-5% |
≥800 |
8-9 |
30 |
63 |
Φ2.5x25 |
2.5
|
25 |
3-5 |
3-5% |
≥800 |
10-11 |
37 |
68 |
Φ2.8x20 |
2.8
|
20 |
3-5 |
3-5% |
≥800 |
13-15 |
45 |
75 |
Φ2.8x30 |
2.8
|
30 |
3-5 |
3-5% |
≥800 |
18-20 |
55 |
83 |
Φ3.0x20 |
3.0
|
20 |
3-5 |
3-5% |
≥800 |
18-20 |
55 |
78 |
Φ3.0x22 |
3.0
|
22 |
3-5 |
3-5% |
≥800 |
20-25 |
55 |
80 |
Φ3.0x30 |
3.0
|
30 |
3-5 |
3-5% |
≥800 |
25-28 |
75 |
90 |
Export standard container 20GP OR 40GP,40HQ,FR container,In bulk,the spare parts in wooden case.
Some case of our rotary dryer shipping to customer
Henan Donging Heavy Industry Equipment CO.,LTD is a new energy equipment, high humidity material drying equipment, environmental protection and research-based professional development of enterprise groups, is the only domestic industry drying equipment research and development, design, production and sales of high-tech enterprise group, and the first certified by ISO quality management system. Dongding Heavy Industry Equipment is a project co-drying equipment, Tsinghua University, Henan University research base, China Petroleum and Chemical Industry Federation drying technology professional group member units, Henan Province, the top ten most of the growth of science and technology enterprises.
As a professional manufacture,we are supply machinery as below:
1.) Rotary dryer,Sawdsut dryer, Wood chips dryer,Brewer grain dryer and other dryer
2.) Wood pellet machine, Biomass pellet machine, Animal feed pellet machine,Small pellet machine
3.)Coal gasifier,Biomass gasifier,MSW gasifier,Sawdust burner,wood pellet burner,biomass pellet burner, wood/biomass prowder burner and others
4.)wood chipper,wood hammer mill,wood crusher and other machine.
