wood chip dryer Introduction:
Usually wood chips raw materials with high humidity is above 30%,such a high humidity can not use,so in order to make the most of wood chips ,we need to install a wood chip dryer before further processing.This wood chip professional dryer can reduce the humidity of wood materials below 8% per time.
The cost of wood chip dryer is much lower than common drying machine
This type dryer machine is professionally designed for drying different kinds of lightweight material ,such as wood chips ,wood sawdust,wood shavings ,straw,bagasse,cassava dregs, bean dregs and others.
The simeple drying system of wood chip dryer

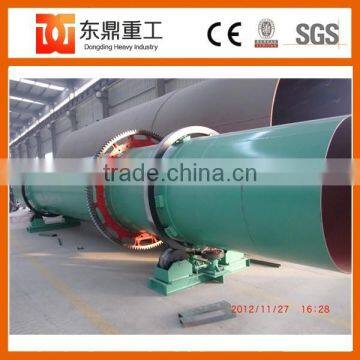

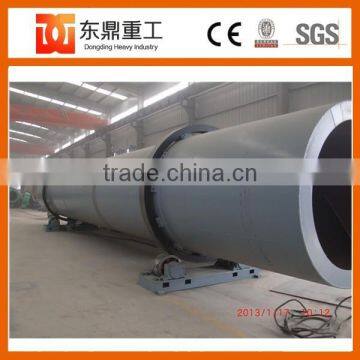

The detail parts of wood chip dryer
wood chip dryer mechanical structure and working principle:
Regarding wood chip small type wood chips dryer machine (with one stove), it is suitable to process materials which moisture content between 20 to 25%
It can reduce the moisture at 8 to 12% one drying time
Regarding big wood chips dryer machine (with two stoves), it is suitable to process materials which moisture content between 35 to 50%
It can reduce the humidity to 8 to 12% one drying time
That means it can reduce approximately 30% for one drying time
But if the humidity of materials is lower than 35%, the capacity will be increased with less of fuel .
All of round places can be adjusted to any angle of 360 centigrade degree according to operation request
Clients can change the angle of drying machines base on the production field

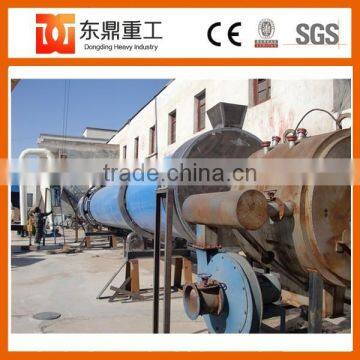

wood chip dryer system testing at our factory
The technology Parameters of Wood chip dryer:
Model |
Diameter (m) |
Length (m) |
speed |
Installation obliquity (%) |
Drying temperature (°c) |
Capacity (t/h) |
Motor (kw) |
Weight (ton)
|
Φ0.8x8 |
0.8
|
8 |
3-6 |
3-5% |
≥800 |
0.6-0.8 |
3 |
3 |
Φ1.0x10 |
1.0
|
10 |
3-6 |
3-5% |
≥800 |
1-1.5 |
4 |
7 |
Φ1.2x10 |
1.2
|
10 |
3-6 |
3-5% |
≥800 |
1.8-2 |
7.5 |
14 |
Φ1.2x12 |
1.2
|
12 |
3-6 |
3-5% |
≥800 |
2-3 |
11 |
15 |
Φ1.5x15 |
1.5
|
15 |
3-6 |
3-5% |
≥800 |
3-3.5 |
15 |
20 |
Φ1.8x18 |
1.8
|
18 |
3-6 |
3-5% |
≥800 |
5.0-5.5 |
18.5 |
30 |
Φ1.8x20 |
1.8
|
20 |
3-6 |
3-5% |
≥800 |
5.5 |
18.5 |
33 |
Φ2.2x20 |
2.2
|
20 |
3-6 |
3-5% |
≥800 |
6.5-7.0 |
22 |
56 |
Φ2.4x20 |
2.4
|
20 |
3-6 |
3-5% |
≥800 |
7.5-8 |
30 |
60 |
Φ2.5x20 |
2.5
|
20 |
3-5 |
3-5% |
≥800 |
8-9 |
30 |
63 |
Φ2.5x25 |
2.5
|
25 |
3-5 |
3-5% |
≥800 |
10-11 |
37 |
68 |
Φ2.8x20 |
2.8
|
20 |
3-5 |
3-5% |
≥800 |
13-15 |
45 |
75 |
Φ2.8x30 |
2.8
|
30 |
3-5 |
3-5% |
≥800 |
18-20 |
55 |
83 |
Φ3.0x20 |
3.0
|
20 |
3-5 |
3-5% |
≥800 |
18-20 |
55 |
78 |
Φ3.0x22 |
3.0
|
22 |
3-5 |
3-5% |
≥800 |
20-25 |
55 |
80 |
Φ3.0x30 |
3.0
|
30 |
3-5 |
3-5% |
≥800 |
25-28 |
75 |
90 |
Export standard container 20GP OR 40GP,40HQ,FR container,In bulk,the spare parts in wooden case.
Some case of our rotary dryer shipping to customer
Henan Donging Heavy Industry Equipment CO.,LTD is a new energy equipment, high humidity material drying equipment, environmental protection and research-based professional development of enterprise groups, is the only domestic industry drying equipment research and development, design, production and sales of high-tech enterprise group, and the first
certified by ISO quality management system. Dongding Heavy Industry Equipment is a project co-drying equipment, Tsinghua University, Henan University research base, China Petroleum and
Chemical Industry Federation drying technology professional group member units, Henan Province,
the top ten most of the growth of science and technology enterprises.
As a professional manufacture,we are supply machinery as below:
1.) Rotary dryer,wood shavings rotary dryer, Wood chip dryer,Brewer grain dryer and other dryer
2.) Wood pellet machine, Biomass pellet machine, Animal feed pellet machine,Small pellet machine
3.)Coal gasifier,Biomass gasifier,MSW gasifier,Sawdust burner,wood pellet burner,biomass pellet burner, wood/biomass prowder burner and others
4.)wood chipper,wood hammer mill,wood crusher and other machine.
