Hammer Mill Machine Crush Wood Chips Machinery Price
Cynthia Tel:8613165110202 Skype:woodpelletmachine19
What's hammer mill ?
A machine crushing wood chips and other materials into sawdust .
Like this :

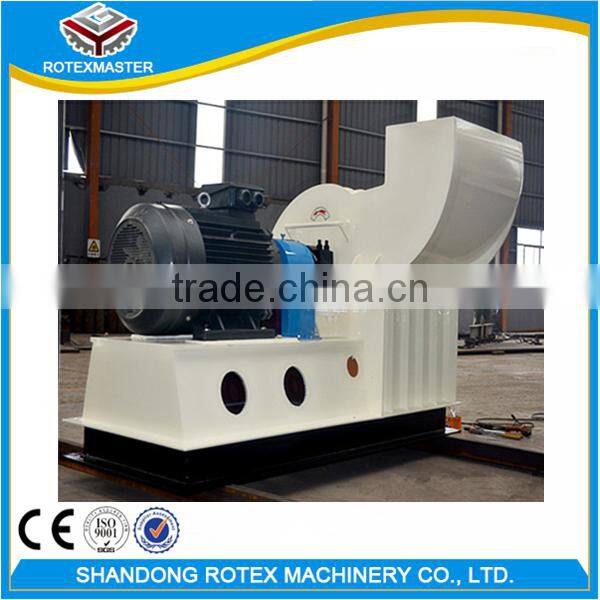

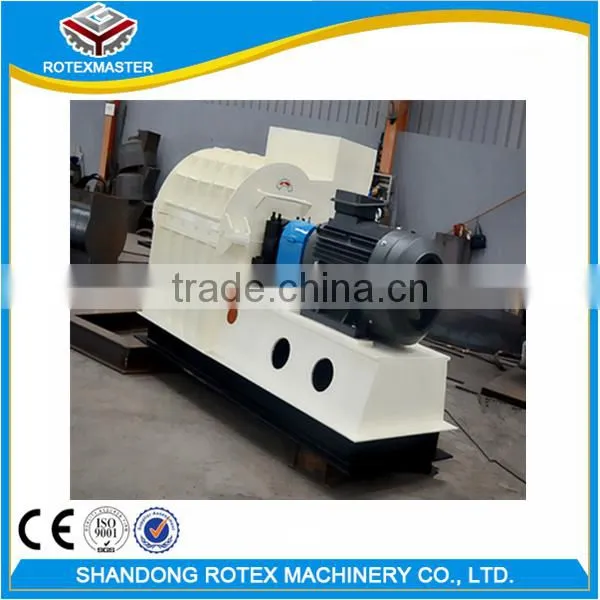

Rotex YSG65*55 Hammer Mill
Model | YSG65*55 |
Power(kw) | 37 |
Capacity(t/h) | 1-2 |
Hammers | 48 |
Weight (t) | 1.5 |
Dimensions(mm) | 1700*1000*1100 |
WHY CHOOSE ROTEX ?
Brief Introduction
The hammer mill's working principle is that when the material enters into the crusher,grinded by the beat, fraction power from the high speed rotating hammers, then the required power screened by the sieve.
The YSG series hammer mill can crush the wood chips, rice husk, agricultural stalk/straw pieces, and shell or grain crops. Meanwhile, the hammer mills grind the PVC and rubber with water cooling system, so it called the multifunctional hammer grinding machine.
Advantages
The motor and rotor are installed in the same heavy-duty base, using coupling direct drive, rotor passes accurate dynamic balancing test, the hammers are arranged symmetrically.
Unique Feeding Design, the feeding inlet is made at the side of the device to make feeding easily.
The shell is welded by steel plate, the site in the crush room which connects to the materials all use the wearable and commutative parts and double wear plate.
Hammers adopts special abrasion resistent treatment technology, extend its lifetime greatly.
Technical Paremeters
Model | Power(kw) | Capacity t/h | Hammers | Weight (t) |
YSG40 | 7.5 | 0.2-0.5 | 16 | 0.27 |
YSG50 | 15 | 0.6-0.8 | 16 | 0.45 |
YSG65*27 | 22 | 0.8-1.5 | 24 | 1.1 |
YSG65*55 | 37 | 1-2 | 48 | 1.5 |
YSG65*75 | 55 | 2-3 | 72 | 1.9 |
YSG65*100 | 90 | 3-4 | 96 | 2.3 |
YSG130*55 | 110 | 5-6 | 80 | 5.3 |
YSG130*100 | 160 | 7-8 | 160 | 6.8 |

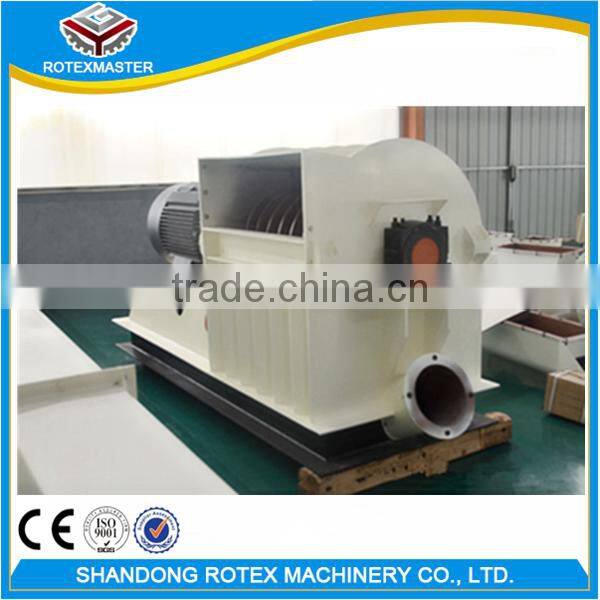

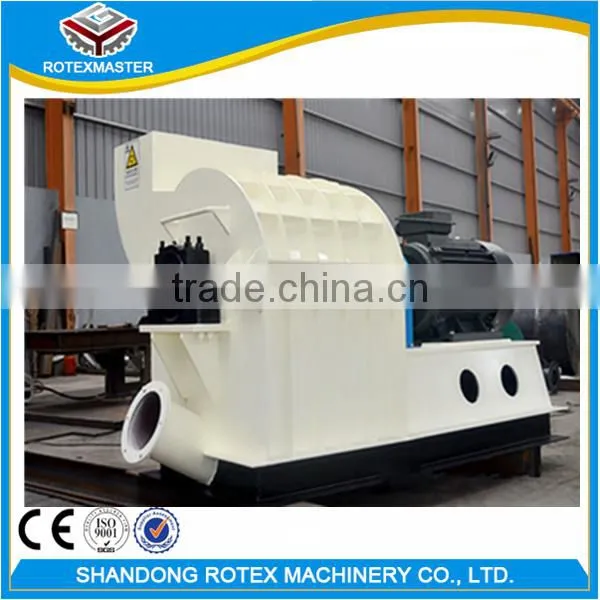

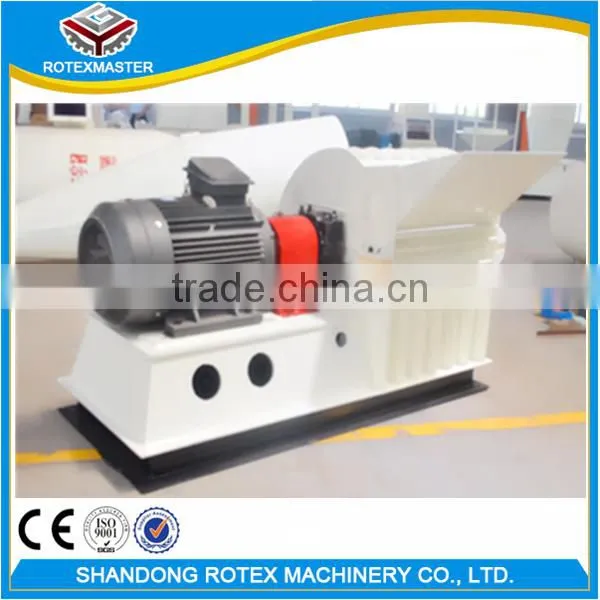

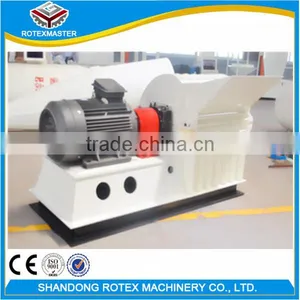

Product show
Inside show

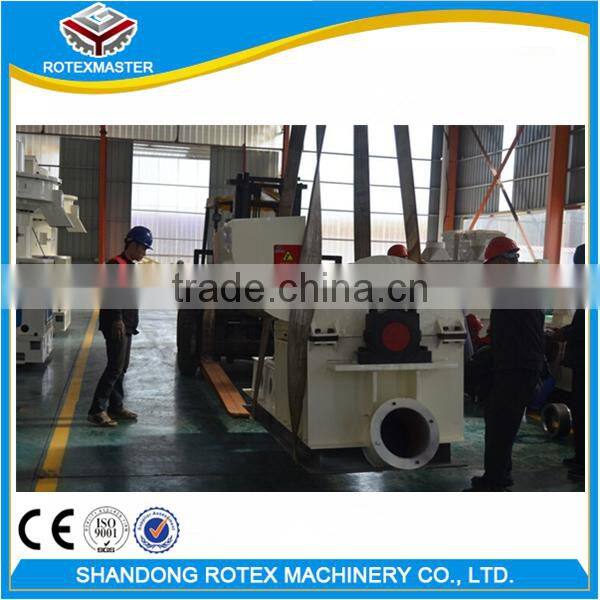

Delivery
Our service
1.Company adhere to the " Service & Quality First, Brand & Reputation First " Principle to provide our customers the best quality service. Welcome thecustomers to visit our factory.
2.Our professional service includes: free training, guidance, installation, and debugging.
3.After selling, we provide the warranty of one year.
4.If you have any problems, we will help to solve on line or live in time.
5.Authorized oversea agents are also engaged in serving.
Company show
ROTEX is an enterprise combined of science and technology, which is specialized an manufacturing and installation training and international trade. Especially in the energy shorttage today, starting from customers' interests, standing in the perspective of customers, to provide our customer the best service, we should like to use our professional knowledge and design the most suitable chart flow and produce the best much better products.
We are doing biomass fuel machinery, fodder farming machinery, and supporting the auxiliary equipment of dryer, cooler, dust removal equipment and other machinery products, the main products: wood pellet machine, feed pellet machine, drum wood chipper and hammer mill, rotary dryer, cooling equipment, conveyors equipment and other auxiliary equipments.
Related equipment

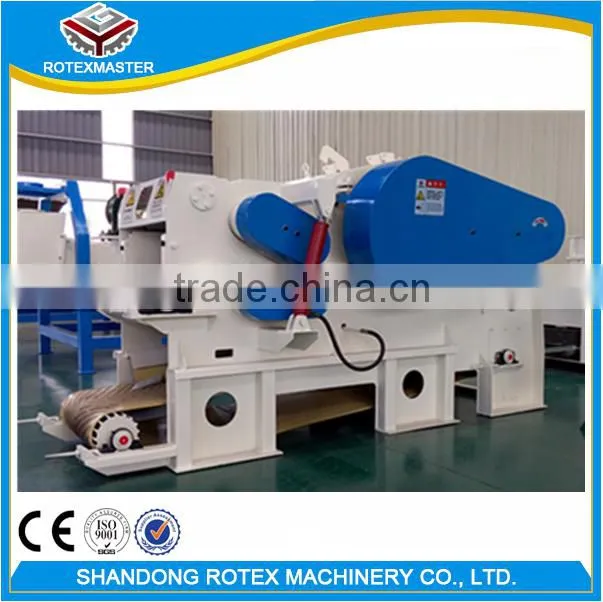

Drum wood chipper

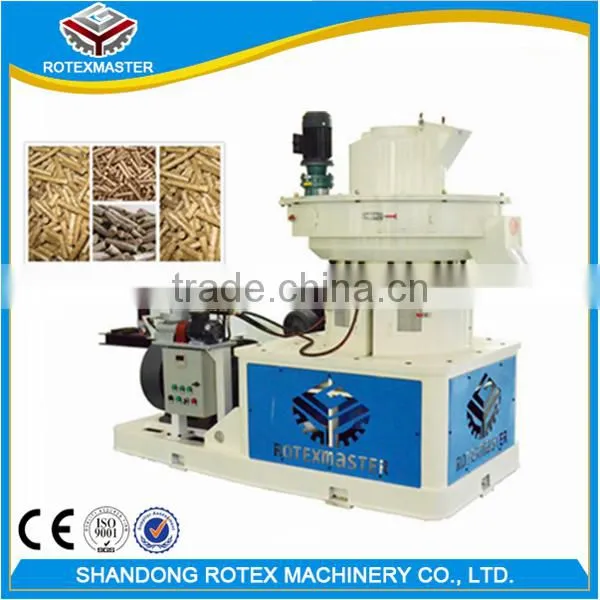

Wood pellet machine
Thanks for your reading .
If there is any interest , please kindly contact me .
I am Cynthia .
