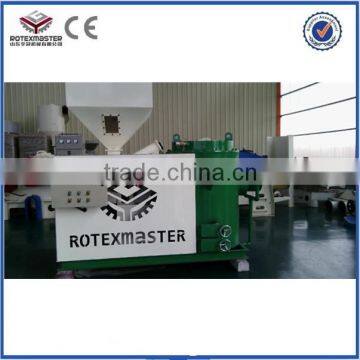

Energy-efficiency industrial biomass wood pellet burner
Pellet Burner Description:
Pellet Burner is the equipment of changing forest waste, scraps into high quality
fuel gas, no harmful emission, protects the limited fossil resources, use the
renewable energy enough, in line with the world, especially the energy conservation
and emission reduction national conditions of our developing country.
The Model of Biomass Burner
Model |
Calorific value (kilocalorie) |
Power (Kw) |
Consumption of fuel(Kg) |
Weight (T) |
Dimension (mm) |
Equipment protection way |
YGF20 |
20 |
0.75 |
50 |
0.6 |
1900*910*1710 |
air-cooled |
YGF30 |
30 |
0.75 |
75 |
0.7 |
1920*925*1750 |
|
YGF45 |
45 |
1.12 |
115 |
1 |
1830*1100*2130 |
|
YGS/F60 |
60 |
1.9 |
150 |
1.6 |
2340*980*2180 |
water-cooled |
YGS90 |
90 |
3.1 |
225 |
2.2 |
2340*980*2180 |
|
YGS120 |
120 |
3.7 |
300 |
3 |
2790*1190*2400 |
|
YGS180 |
180 |
5.25 |
450 |
3.8 |
2900*1300*2400 |
|
YGS240 |
240 |
8.45 |
600 |
4.8 |
3180*1490*2400 |
|
YGS300 |
300 |
10.45 |
750 |
8 |
3800*1950*3130 |
|
YGS360 |
360 |
10.45 |
900 |
9 |
3950*2100*3270 |
Wide application of Pellet Burner
pellet burner is suitable for steam boiler, fuel oil, gas, coal boiler, various kinds of
organic spray drying equipments, large-scale farming factories, cereal and food
drying, tobacco drying, various kinds of large, medium, small workshops,
greenhouse heating and etc.
Details of the burner
1,burner mouth :connect with boiler or dryer. according to the size of your boiler,
then design the burner mouth for you.
2,water inlet. Cool water can enter into the water interlayer from here. This is
water cooling system, thus can reduce the temperature of burner.
3,water outlet.hot water can be come out from the water outlet.
4,air increasing fan, there are two air increasing fans in it. One of them for burner
mouth, and anther one is for bottom of burner. for sufficient burning.
5,igniting hole, for ignite the biomass burner automaticly.,
6,ash discharge hole , for cleaning some times.
7,view hole, we can watch the flame situation the fire of burn.
8,feed inlet connect with pipe, so the material be entered into from here.
9,diesel igniter for ignite biomass burner.
Some details of the burner
Save for you(1000kg/h steam boiler)
Boiler equipments |
Material consumption |
Unit price of fuel |
Operation cost |
Light diesel oil boiler |
66Kg |
1USD/KG |
69.3USD |
Heavy oil boiler |
70Kg |
0.75USD/KG |
52.5USD |
Natural gas boiler |
79.3Nm |
0.58USD/KG |
46.3USD |
Electricity boiler |
720Kw |
0.2USD/KG |
144USD |
Biomass burner |
145Kg |
0.16USD/KG |
24.2USD |
Fuel coal boiler can recovery cost within 2- 3months ,
Fuel oil (natural gas) boiler can recovery cost within 20-30days.
Fuel coal boiler can save energy 30%-40%.
Fuel oil(natural gas)boiler can save energy 50%-70%
We can also provide you various types different capacities wood pellet machines:
Contact
Skype:3085457114(at)
Tele/fax:+86-0531-18615687606
Tradmanager:cn1513371974
Whatsapp:+86-0531-18615687606
Shandong Rotex Machinery Co.,Ltd is an enterprise of research and development,
manufacturing, international trade as a whole, registered capacity is 10 million
Yuan, more than 150 staff. Strong technical force, advanced production technology,
perfect after-sales service.
Mainly produce: biomass fuel pellet production line, feed pellet production line,
organic fertilizer and Municipal Solid Waste processing equipment, agricultural
equipment, forestry equipment, etc.
1.Technical guidance, according to your capacity and raw material ,recommend a
suitable model;
2.Visit to our factory and have an investigation and performance test;
3.Engineers available to service machinery overseas;
4.Warranty 1 year,quality guarantee except wear parts and wrong operation.
