Competitive Price Hookah Charcoal Making Machine

Hookah charcoal making machine is applicable to make the coal powder into different shapes bar or rod shape briquettes. The working process is like the following: the motor transfers the power to the transmission through triangle belt, then the output shaft on the transmission transfers the power to the propeller shaft, finally the propeller on the propeller shaft pushes the coal powder into the mold and out, then the ideal high pressure coal rod is generated. This process is very simple, and it's easy to operate.

♦ Technical Parameters of hookah charcoal making machine:

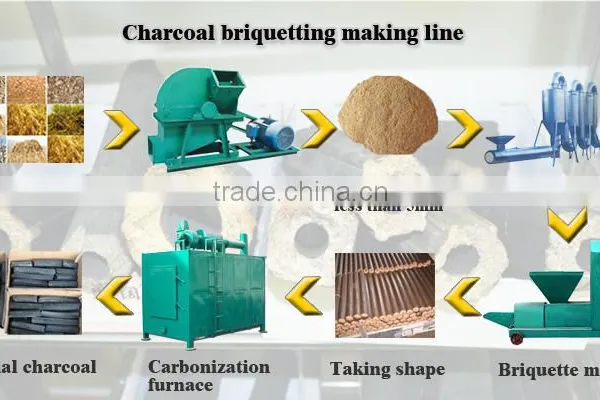

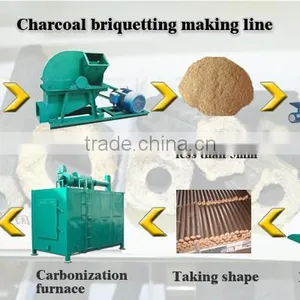

1.First step(Crushing): crush the raw materials into small pieces (3-5mm) by wood crusher/Hammer Mill;

raw material as below :

 including: wood chips, maize stalks, soybean stalks, broomcorn stalks, cotton stalks, rape stalks, peanut plants, sunflower stalks, bamboo saw dust, bagasse agro-forestry wastes, such as sawdust, wood chips, branches, crop stalks, sugarcane residue, coffee husk, paddy straw, sunflower stalk, cotton stalks, bamboo dust, tea waste,palm husk, soybeans husk,etc.

2.Second step (drying): dry the crushed materials by flash dryer to reduce the crushed material's moisture content below 8-12%

3.Third step(briquetting):Put the dried materials into the briquette machine to make sawdust briquettes. This stick is 45-80mm in diameter, occurs in the hollow quadrangular or hexagonal cylinder or hollow hexagonal with a 15-20mm hole through the body.

Final briquettes/charcol of this machine:

♦ square, round, hexagonal, pentagon(with/without edge)

♦ Hollow
♦ Stick shape
♦ Diameter: 40-80mm
♦ Inside diameter: 15-20mm
♦ Length: 20-50cm
♦ Specific gravity: 1200—1300kg/m3
♦ Calorific value:4400-5000kcal/kg

Final briquettes after carbonization:


1.Below is some parts of this machine of wood charcoal making machine , please check it. When you buy our machine, we will attach 1*propeller, 1*shaping pipe , 3* welding rods, 3* Heating rings.

2.Additionally, our company provides technical support and fittings for life. After-sales service isn't restricted by time and we will solve your problems in time. If you are caught in some problems when using our products, welcome to contact us at any time.

Our hookah charcoal making machine will be packaged by standard export wooden package case, it can ensure the machine intact.

1. We can deliver the hookah charcoal making machine to your nearest seaport by sea, by air, by express, etc.
2. Any special requirement of shipping, please talk with us, we will help you to solve the problems.

*In order to provide you the quotation timely and accurate,please let me know the answers of the following question

1.What's your raw materials to process?
2.The moisture and size of your raw materials?
3.what is the machine production capacity do you need?
4.The shape and size of the final product you want?
