Specifications
1.CE,ISO,BV certificate2.Good price and good quality
3.non-pollution
Introduction
Pre-gelatinized starch is an effective and economical fluid loss agent in water based drilling fluids, which is a starch derivative. It is not bacterial degradation when at 120°C, environmentally acceptable and non-toxic. Modified Starch can produce a thin, slick, tough filter cake and promotes faster penetration rates with reducer friction. It can be used in all kinds of drilling fluid system. Pre-gelatinized starch is also sometimes "pregelatinized" to make them easier to dissolve during product manufacture. Modified starch is widely used in oil drilling, textile, paper and food industries.
Modified flours and starches usage
These products, which are also called swelling flours or swelling starch, are especially
characterized by their modified water absorption and solubility properties. The viscosity
of flour-(starch-)and-water suspensions is adjusted to suit customers’ specific needs.
Suitable thermal or mechanical energy input into a mixer and extruder allows
products to be made which are soluble in cold or hot water and which have a wide range
of viscosities. Modified flours and starches are applied in the following products:
After our extrusion cooking
Bakery products Water binders, freshness extenders, binders
Sauces, soups Binders
Meat, fish, sausages Fillers, adhesion promoters, breadings, binders
Desserts Firming agents
Instant beverages Thickeners
Confectionery Flavor carriers
Baby foods Bases, calorie carriers
Feeds Bases in calf rearing
Crude oil production Lining of boreholes
Textiles Upgrading of textile threads
Paper Additives
Building construction Addition in construction chemicals
Adhesives Additives

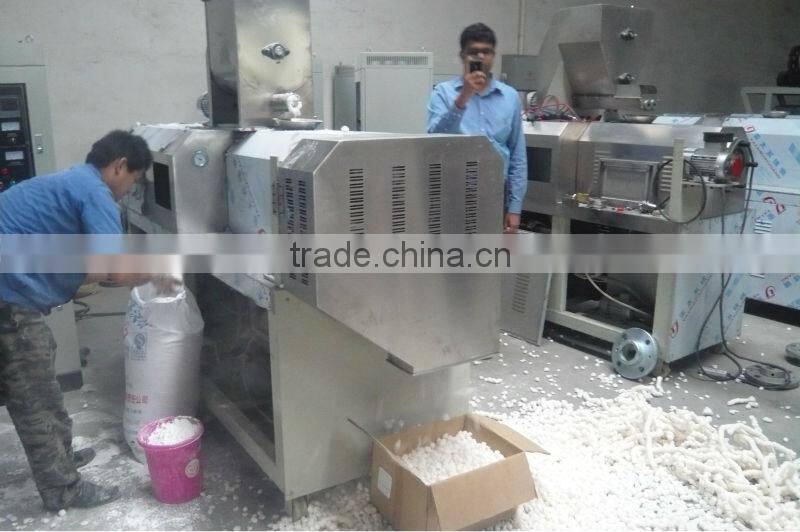

Whole processing line introduction
|
Specification Model |
DP65-Ⅲ Twin screw extrusion line |
DP70-II Twin screw extrusion line |
DP85-II Twin screw extrusion line |
DP110-II Extrusion line |
DP130 Extrusion line |
Main extrusion motor power |
22KW |
45KW |
90KW |
110KW |
132kw |
Installed power |
70KW |
100KW |
170KW |
220KW |
280kw |
Actual consumption |
45KW |
70KW |
100KW |
130KW |
200kw |
Capacity |
100-130kg/h |
200-240kg/h |
300-400kg/h |
700-1000kg/h |
2tons-3tons |
Size |
11×1.3×2.4m |
12×1.3×2.4m |
15×1.3×2.4m |
18*1.2*3.0m |
22*1.2*4.0m |
Machines list for production line
No. |
Name |
Quantity |
1 |
Mixing system machine |
1set |
2 |
Screw conveyor |
1set |
3 |
Pre-conditioner |
1set |
4 |
Extruder |
1set |
5 |
Air conveyor |
1set |
6 |
Oven/dryer |
1set |
7 |
Cooling machine |
1set |
8 |
Pulverizer machine |
1set |
9 |
Packing machine |
1set |
10 |
Metal detector |
1set |
