Cement Screw Conveyor of Yuhui With ISO9001:2000 of China

Cement Screw Conveyor of Yuhui With ISO9001:2000 of China photo-1
Cement Screw Conveyor of Yuhui With ISO9001:2000 of China photo-2
Cement Screw Conveyor of Yuhui With ISO9001:2000 of China photo-3
Cement Screw Conveyor of Yuhui With ISO9001:2000 of China photo-4

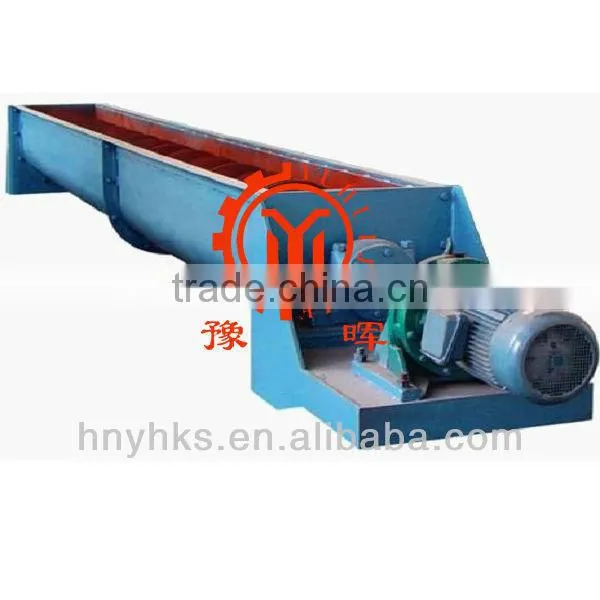

Cement Screw Conveyor of Yuhui With ISO9001:2000 of China photo-5

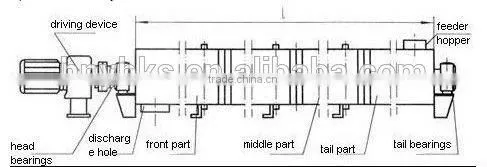

Cement Screw Conveyor of Yuhui With ISO9001:2000 of China photo-6
US$ 100 - 99,999,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Vibrating Conveyor
Material:
Stainless Steel
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Shanghai Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Vibrating Conveyor
Material Stainless Steel
Material Feature Heat Resistant
Structure Roller Conveyor
Load Capacity Unknown
Place of Origin Henan, China
Brand Name Yuhui
Model Number Many types
Voltage 380v
Power(W) 2200~7500
Dimension(L*W*H) Many types
Certification ISO9001:2000
After-sales Service Provided Engineers available to service machinery overseas

Cement screw conveyor of Yuhui with ISO9001:2000 of China

Cement screw conveyor of Yuhui with ISO9001:2000 of China

working Principle of conveyor belt

The  material feed into the casing and screw flight was hold back by the frication resistance acted on the wall of casing during running, the screw flight push the material and make the material do axial movement, simultaneity the clockwise and counterclockwise fight act as mixer. The material can be discharged at the proper outlet at the bottom of casing or transport out at the end of chute. Conveyor with simple construction, be able to feed and discharge in many position, it is easy to operate, have good seal capability and environmental friendly.



Application range of conveyor belt:

Screw conveyor is widely used in various industries, such as building materials, chemicals, electric power, metallurgy, coal, grain and other industries, for horizontal or inclined conveyor dust, granular materials and small block, such as coal, ash, slag, cement, food, etc. The material temperature is less than 200 °C.

It is not suitable for conveying perishable, viscous, easy caking materials.



Main Technical Parameters of conveyor belt

Model

Transmission length

(m)

Coal Capacity

(t)

Cement Capacity

(t)

Raw material Capacity(t)

Power

(kw)

Weight

(t)

GX200*10m

3-70

8.5

7.9

7.3

2.2

0.7

GX250*10m

3-70

16.5

15.6

13.8

3

0.95

GX300*10m

3-70

20

21

18.7

3

1.4

GX400*10m

3-70

54

51

45

5.5

2.1

GX500*10m

3-70

79

84.4

74

7.5

3.2





Cement screw conveyor of Yuhui with ISO9001:2000 of China

Cement screw conveyor of Yuhui with ISO9001:2000 of China

 Cement screw conveyor of Yuhui with ISO9001:2000 of ChinaCement screw conveyor of Yuhui with ISO9001:2000 of ChinaCement screw conveyor of Yuhui with ISO9001:2000 of ChinaCement screw conveyor of Yuhui with ISO9001:2000 of ChinaCement screw conveyor of Yuhui with ISO9001:2000 of ChinaCement screw conveyor of Yuhui with ISO9001:2000 of ChinaCement screw conveyor of Yuhui with ISO9001:2000 of ChinaCement screw conveyor of Yuhui with ISO9001:2000 of ChinaCement screw conveyor of Yuhui with ISO9001:2000 of China
