Specifications
GX series screw type conveyor1.CE&ISO certificate
2.high capacity
3.motor power2.2-7.5kw
4.transmission length3-70m

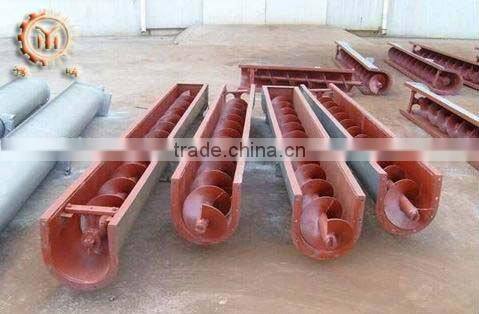

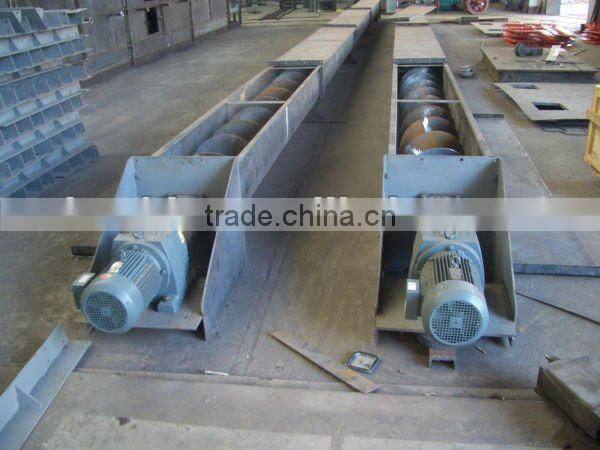

GX series screw type conveyor
I. Brief description of Screw Conveyor:
GX-type screw conveyor is the earliest production of generic stereotypes of production equipment. The screw conveyor is most suitable for transporting all kinds of powder, granular materials, lumpish materials, such as coal, sand, lump coal, cement, cereal, etc. perishable, viscous, easy caking materials are not available to transport.
II. Screw Conveyor's advantage:
♦1. Simple structure, cross-section size is small, the cost of the end;
♦2. The middle of loading and unloading easy;
♦3. Simple operation;
♦4. Conveying materials from the outside world, good seal.
III. Technical Parameters of screw conveyor:
Model |
Transmission length |
Capacity (T) |
Motor power(KW) |
Weight(T) |
||
Coal |
Cement
|
Raw material |
||||
GX200X10M |
3-70M |
8.5 |
7.9 |
7.3 |
2.2 |
0.7 |
GX250X10M |
3-70M |
16.5 |
15.6 |
13.8 |
3 |
0.95 |
GX300X10M |
3-70M |
20 |
21 |
18.7 |
3 |
1.4 |
GX400X10M |
3-70M |
54 |
51 |
45 |
5.5 |
2.1 |
GX500X10M |
3-70M |
79 |
84.4 |
74 |
7.5 |
3.2 |
