Help CenterGX Series Spiral Small Screw Conveyor
Related Products
-
China Professional Competitive Screw Conveyor PriceUS$ 2,000 - 99,999MOQ: 1 Set -
GX Series Cement Screw ConveyorUS$ 1,000 - 9,999,999MOQ: 1 Set
-
GX Series Cement Screw Conveyor of China MadeUS$ 2,300 - 9,999,999MOQ: 1 Set
-
GX 200*10M Cement Screw ConveyorUS$ 1,200 - 9,999,999MOQ: 1 Set
-
GX250*10 Cement Screw Conveyor Hot Selling to the Middle EastUS$ 489 - 989MOQ: 1 Set
Specifications
small screw conveyor1.ISO9001-2000 certificate
2.transmission length3-70m
3.high efficiency
4.great seal

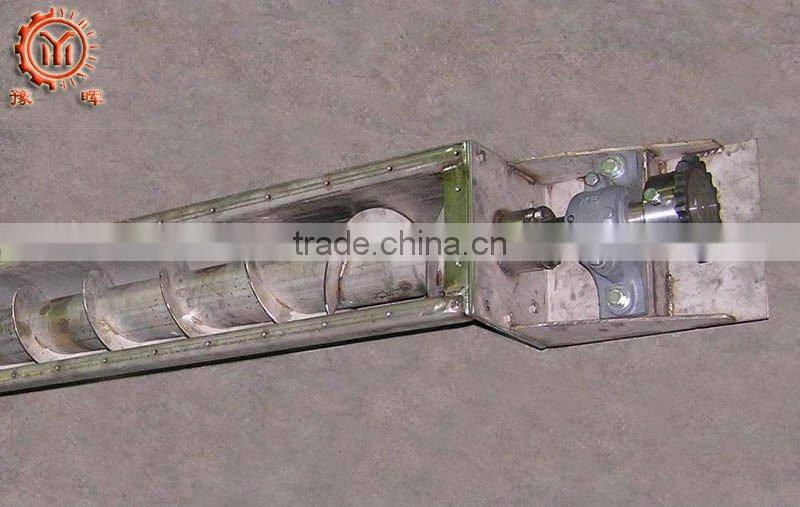

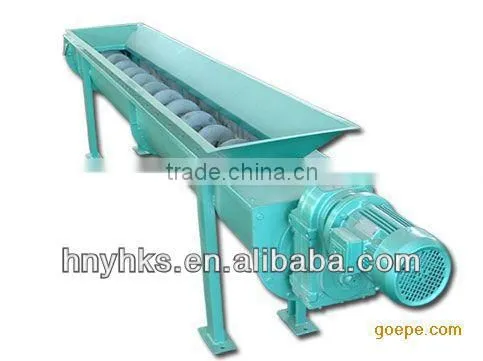

GX series spiral small screw conveyor
1. Application of small screw conveyor:
The screw conveyor is generally used to transport used to transport powdery, granular and nubbly bulk material, unsuitable to convey perishable, glutinous and lumpish material. It is widely used to metallurgy, chemical, construction material and food industry. Usually assembly under the silo or hopper, act as screw conveyor, arch breaker and mixer.
2. Working Principle of small screw conveyor:
The material feed into the casing and screw flight was hold back by the frication resistance acted on the wall of casing during running, the screw flight push the material and make the material do axial movement, simultaneity the clockwise and counterclockwise fight act as mixer. The material can be discharged at the proper outlet at the bottom of casing or transport out at the end of chute. Conveyor with simple construction, be able to feed and discharge in many position, it is easy to operate, have good seal capability and environmental friendly.
3. Main Structure of small screw conveyor:
The six screw conveyor is made up of reducer with motor, sprocket, gear, six screw flight, casing, lubrication system, etc.
4. Main technical parameters of small screw conveyor:
Model |
Transmission length |
Capacity (T) |
Motor power(KW) |
Weight(T) |
||
Coal |
Cement
|
Raw material |
||||
GX200X10M |
3-70M |
8.5 |
7.9 |
7.3 |
2.2 |
0.7 |
GX250X10M |
3-70M |
16.5 |
15.6 |
13.8 |
3 |
0.95 |
GX300X10M |
3-70M |
20 |
21 |
18.7 |
3 |
1.4 |
GX400X10M |
3-70M |
54 |
51 |
45 |
5.5 |
2.1 |
GX500X10M |
3-70M |
79 |
84.4 |
74 |
7.5 |
3.2 |
