Specifications
rotary kiln incinerator1.Durability
2.Low cost and low noise
3.ISO9001:2000&CE
4.Saving water and energy

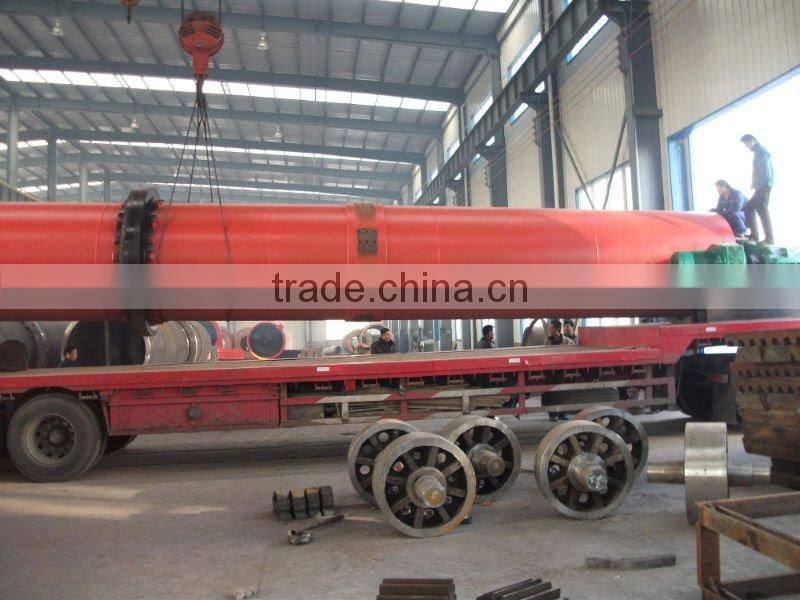

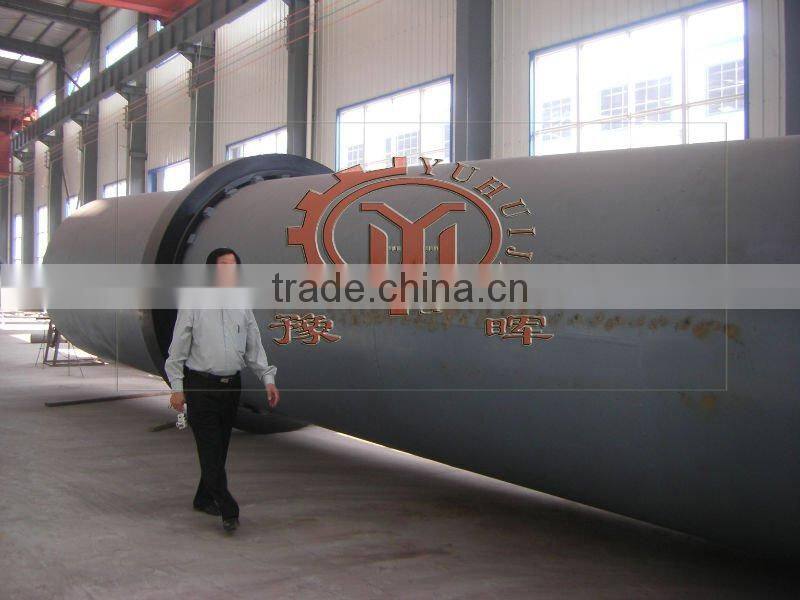

rotary kiln incinerator with shaft preheater and cyclone preheater
1. rotary kiln incinerator main usages:
Our company manufactur rotary kiln incinerator for 30 years , widely used in metallurgy,construction , chemical industry.
Materials produced using rotary kilns include:
• Cement
• Lime
• Refractories
• Metakaolin
• Titanium dioxide
• Alumina
• Vermiculite
• Iron ore pellets
2.rotary kiln incinerator constructions:
The basic components of a rotary kiln incinerator are the shell, the refractory lining, support tyres and rollers, drive gear and internal heat exchangers.
3.rotary kiln incinerator working principle:
The kiln is a cylindrical vessel, inclined slightly to the horizontal, which is rotated slowly about its axis. The material to be processed is fed into the upper end of the cylinder. As the kiln rotates, material gradually moves down towards the lower end, and may undergo a certain amount of stirring and mixing. Hot gases pass along the kiln, sometimes in the same direction as the process material (co-current), but usually in the opposite direction (counter-current). The hot gases may be generated in an external furnace, or may be generated by a flame inside the kiln.
4.rotary kiln incinerator specification:
Specification | Capacity(t/d) | Kiln obliquity (%) | Bearing quantity | Kiln rotation speed(r/min) | Main driving (r/min) | ||||||
Motor | Reductor | ||||||||||
Main driving | Auxiliary driving | Type | Rated power (KW) | Speed adjustment range (r/min) | Rated voltage (v) | Type | Speed ratio | ||||
Φ2.5×40 | 180 | 3.5 | 3 | 0.98-2.94 | 0.036 | YCT315-4B | 45 | 132-1320 | 380 | ZS145-1-I | 49.63 |
Φ2.5×60 | 168 | 3.5 | 4 | 0.516-1.549 | 0.036 | YCT355-4B | 75 | 440-1320 | 380 | ZS165-7-II | 99.96 |
Φ3×48 | 700 | 3.5 | 3 | 0.726-3.63 | 0.1375 | ZSN4-280-091B | 110 | 200-1000 | 440 | ZSY450-35-V | 30.794 |
Φ3×60 |
| 3.5 | 4 | 0.492-1.476 | 0.034 | YCT355-4B | 75 | 440-1320 | 380 | ZL165-7-I | 99.96 |
Φ3×100.94 | 450 | 4 | 4 | 0.3-1.503 | 0.275 | ZSN4-250-21B | 90 | 100-1000 | 440 | NZS995-90-VI-L | 90 |
Φ3.2×46 | 1000 | 3.5 | 3 | 0.36-3.57 | 0.108 | ZSN4-280-091B | 160 | 100-1000 | 440 | NZS995-40VIBR | 40 |
