Specifications
rotary kiln incinerator1.Long serving life
2.Low cost and low noise
3.ISO9001:2000&CE
4.Low energy consumption
rotary kiln incinerator hot sell to india
1. construction of rotary kiln incinerator:
The basic components of a rotary kiln furncae are the shell, the refractory lining, support tyres and rollers, drive gear and internal heat exchangers.

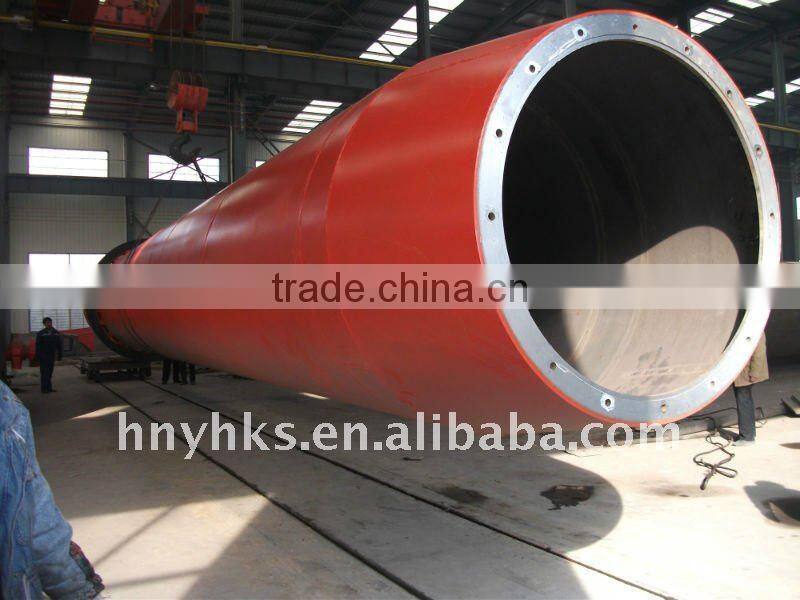

2. introduction of kiln shell:
This is made from rolled mild steel plate, usually between 15 and 30 mm thick, welded to form a cylinder which may be up to 230 m in length and up to 6 m in diameter. Upper limits on diameter are set by the tendency of the shell to deform under its own weight to an oval cross section, with consequent flexure during rotation.
3. Thermal efficiency
The thermal efficiency of the rotary kiln is about 50-65%
4. main technical data of rotary kiln :
Specification | Kiln demensions | Output(t/h) | Rotation speed(r/min) | Moto power(kw) | Weight | Note | ||
Diameter | Length | Obliquity | (t) | |||||
ø1.4*33 | 1.4 | 33 | 3 | 0.9-1.3 | 0.39-3.96 | 18.5 | 47.5 | ---- |
ø1.6*36 | 1.6 | 36 | 4 | 1.2-1.9 | 0.26-2.63 | 22 | 52 | ---- |
ø1.8*45 | 1.8 | 45 | 4 | 1.9-2.4 | 0.16-1.62 | 30 | 78.2 | ---- |
ø1.9*39 | 1.9 | 39 | 4 | 1.65-3 | 0.29-2.93 | 30 | 77.59 | ---- |
ø2.0*40 | 2 | 40 | 3 | 2.5-4 | 0.23-2.26 | 37 | 119.1 | ---- |
ø2.2*45 | 2.2 | 45 | 3.5 | 3.4-5.4 | 0.21-2.44 | 45 | 128.3 | ---- |
ø2.4*40 | 2.4 | 40 | 3.5 | 6.2-6.8 | 0.39-2.44 | 55 | 136.5 | ---- |
ø2.5*40 | 2.5 | 40 | 3.5 | 9.0-10.5 | 0.44-2.44 | 55 | 149.61 | ---- |
ø2.5*50 | 2.5 | 50 | 3 | 6.25-7.4 | 0.62-1.86 | 55 | 187.37 | ---- |
ø2.5*54 | 2.5 | 54 | 3.5 | 6.9-8.5 | 0.48-1.45 | 55 | 196.29 | ---- |
ø2.7*42 | 2.7 | 42 | 3.5 | 10.0-11.0 | 0.10-1.52 | 55 | 198.5 | ---- |
ø2.8*44 | 2.8 | 44 | 3.5 | 12.5-13.5 | 0.437-2.18 | 55 | 201.58 | Suspension preheating kiln |
