Specifications
rotary drum dryer for wet material1.capacity1-36/h
2.water less 0.5%
3.packed continuously
4.CE&ISO certificate

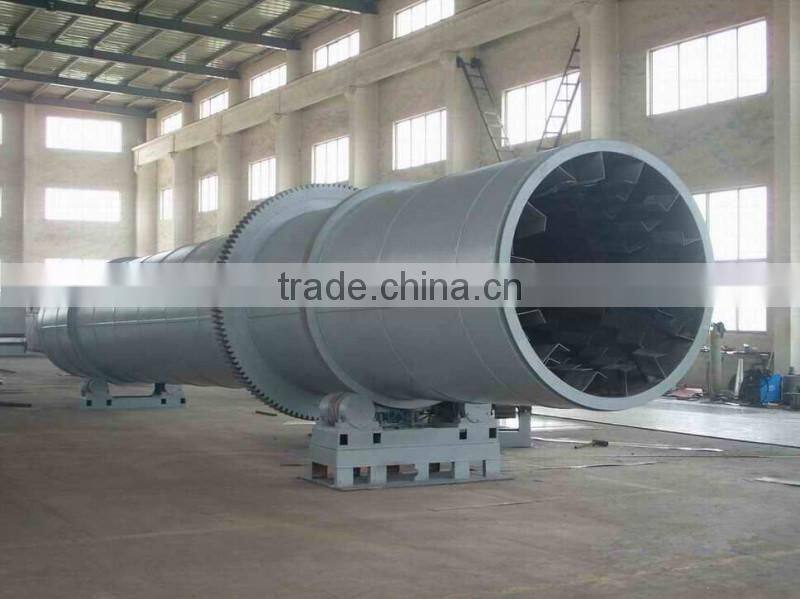

Yuhui brand rotary drum dryer for wet material
1.Performance and Feature of Rotary drum dryer:

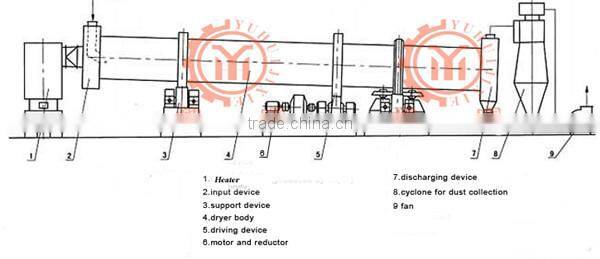

The rotary drum dryer mainly consists of rotor, shed plate, transmission device, support device, seal ring, and other spare parts. The rotary drum dryer has the advantages of reasonable structure, excellent manufacture, high output, low energy consumption, convenient operation and so on. The rotary drum dryer is applicable for particle materials, and is also applicable for paste and viscous materials which are mingled with particle materials, or materials whose water content is high. It has the advantages of large production volume, wide application range, small flow resistance, large adjustable range, and convenient operation, etc.
2.Application of Rotary drum dryer:
This rotary drum dryer can dry many kinds of materials which contain moisture, such as coal, coal slurry, slag, industrial waste, and clay stone. Rotary drum dryer are widely used in building materials, metallurgy, and chemical industry.
3.Technical Specification of Rotary drum dryer:
type(mm) | indiclination(%) | rotation speed(r/min) | input tempreture(ºC) | motor power(kw) | outpur(t/h) | weight(t) | reforance |
Φ600×6000 | 3-5 | 3-8 | ≤700 | 3 | 0.5-1.5 | 2.9 |
|
Φ800×8000 | 3-5 | 3-8 | ≤700 | 4 | 0.8-2.0 | 3.5 |
|
Φ800×10000 | 3-5 | 3-8 | ≤700 | 4 | 0.8-2.5 | 4.5 |
|
Φ1000×10000 | 3-5 | 3-8 | ≤700 | 5.5 | 1.0-3.5 | 5.6 |
|
Φ1200×10000 | 3-5 | 3-8 | ≤700 | 7.5 | 1.8-5 | 14.5 |
|
Φ1200×12000 | 3-5 | 3-8 | ≤700 | 11 | 2-6 | 14.8 |
|
Φ1500×12000 | 3-5 | 2-6 | ≤800 | 15 | 3.5-9 | 17.8 |
|
Φ1800×12000 | 3-5 | 2-6 | ≤800 | 18 | 5-12 | 25 |
|
Φ2200×12000 | 3-5 | 1.5-6 | ≤800 | 18.5 | 6-15 | 33 |
|
Φ2200×18000 | 3-5 | 1.5-6 | ≤800 | 22 | 10-18 | 53.8 |
|
Φ2200×20000 | 3-5 | 1.5-6 | ≤800 | 30 | 12-20 | 56 |
|
Φ2400×20000 | 3-5 | 1.5-5 | ≤800 | 37 | 18-30 | 60 |
|
Φ2800×15000 | 3-5 | 1.5-5 | ≤800 | 40 | 20-35 | 72.5 |
|
Φ2800×18000 | 3-5 | 1.5-5 | ≤800 | 40 | 25-35 | 75 |
|
Φ3000×20000 | 3-5 | 1.5-5 | ≤800 | 55 | 28-40 | 78 |
|
Φ3000×25000 | 3-5 | 1.5-5 | ≤800 | 75 | 32-45 | 104.9 |
|
