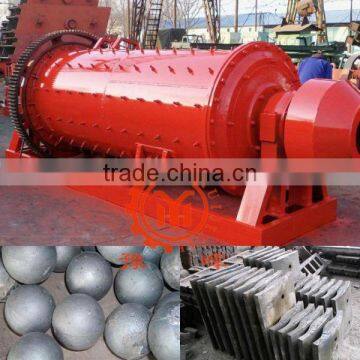

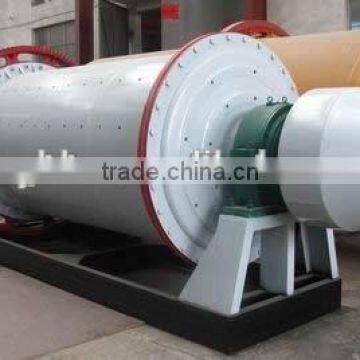

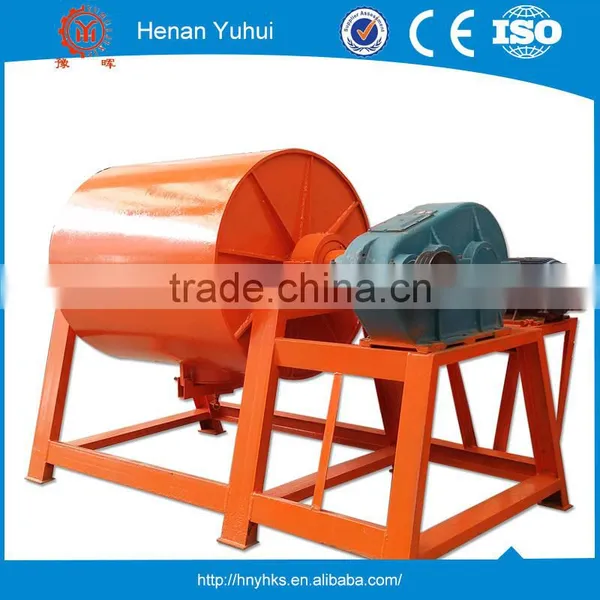

Labratory mini ball mill machine
Brief introduction of ball mill:
This machine changes the original grinding machine structure to integrate it body and underbed. When installed, it can be located on a base plane surface at one time. Because its main bearing uses two row self-aligning spherical roller bearing, it can reduce energy consumption by 30%. The intrinsic grille pattern forced discharging is substituted by the overall pattern controlling one. This can improve the milled granularity and the capacity can be increased by 15-20%.
Ball Mill Application:
The ball mill is widely applied in mineral classification and selection, cement, fireproof materials, glass, pottery, chemical industry and so on. The ball mill can grind all kinds of rocks and grinding materials. There are two ways of grinding: the dry process and the wet process.
Ball Mill Working Principle:
The ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.
Technical parameter of ball mill:
Model | Feeding size(mm) | Discharging size(mm) | Weight of ball(t) | Rotational speed (r/min) | Power(kw) | Capacity(t/h) | Weight(t) |
Φ900*1800 | ≤20 | 0.075-0.89 | 1.4 | 42 | 18.5 | 0.65-2 | 3.6 |
Φ900*2100 | ≤15 | 0.075-0.83 | 1.7 | 41 | 15 | 0.7-3.5 | 3.9 |
Φ900*3000 | ≤20 | 0.075-0.89 | 2.5 | 41 | 22 | 1.1-3.5 | 4.5 |
Φ1200*2400 | ≤25 | 0.075-0.6 | 3.5 | 36 | 30 | 1.5-4.7 | 11.5 |
Φ1200*2800 | ≤25 | 0.075-0.6 | 4.5 | 36 | 37 | 1.5-5 | 13 |
Φ1200*4500 | ≤25 | 0.075-0.4 | 5.5 | 32 | 55 | 1.6-5.8 | 13.8 |
Φ1500*3000 | ≤25 | 0.047-0.4 | 8.68 | 31 | 75 | 2-7 | 17 |
Φ1500*3500 | ≤25 | 0.047-0.4 | 7.75-6.4 | 31 | 75 | 3-8.5 | 17.5 |
Φ1500*4500 | ≤25 | 0.047-0.4 | 10.5 | 27 | 110 | 3.5-8 | 21 |
Φ1500*5700 | ≤25 | 0.047-0.4 | 15 | 27 | 130 | 3.5-10 | 24.7 |
Φ1830*3000 | ≤25 | 0.047-0.4 | 18 | 26 | 160 | 4-12 | 28 |
Φ1800*3600 | ≤25 | 0.047-0.4 | 10.6-11.35 | 26 | 160 | 5-13 | 33.5 |
Φ1830*4500 | ≤25 | 0.047-0.6 | 12 | 26.5 | 185 | 5.5-20 | 35 |
Φ1830*7000 | ≤25 | 0.047-0.4 | 25 | 26 | 210 | 6.5-22 | 36 |
Φ2100*3600 | ≤25 | 0.047-0.4 | 14-15.2 | 24 | 185 | 15-30 | 46.8 |
Φ2200*5500 | ≤25 | 0.047-0.4 | 30 | 21 | 245 | 10-20 | 48.5 |
Φ2200*6500 | ≤25 | 0.047-0.4 | 31 | 21 | 380 | 14-50 | 52.8 |
Established in the 1970s, Henan Yuhui Mining machinery Co.Ltd has developed into a famous manufacturer through
40 years’ struggling and progressing.Specialized in producing mineral dressing equipment, compound fertilizer
equipment, cement equipment, as well as sand making equipment.
Henan Yuhui Mining machinery Co.Ltd is located in Zhengzhou City in central plains, which adjoins to ancient
millennium Shaolin Temple (Kongfu Origin) to the south, and Yellow River to the north. With Lianhuo highway
and Longhai railway, it owns convenient transportation and pleasant scenery.
