2016 Qie manufacturer almond oil machine
Almond oil mill machinery flowchart:
Model |
Squeeze worm rotation speed |
Exterior size(mm) |
Cpacity |
Main engine |
Vacuum pump |
Heater |
6YL-80 |
30-45tun/min |
1650x1150x1750 |
80-150kg/h |
Y160L-6-5.5KW |
Y90S-4-0.55KW |
2KW |
6YL-100 |
30-40turn/min |
1950x1300x1900 |
150-250kg/h |
Y160M-6-7.5 |
Y90S-4-1.1 |
3KW |
6YL-120 |
30-40turn/min |
2050x1350x2000 |
200-300kg/h |
Y160L-6-11KW |
Y100L1-4-1.5KW |
3.3KW |
6YL-130 |
28-40turn/min |
2200x1600x2150 |
250-400kg/h |
Y180L-6-15KW |
Y100L1-4-2.2KW |
3.8KW |
6YL-160 |
28-40turn/min |
2500x1600x2500 |
400-600kg/h |
Y200L-6-18.5KW |
Y100L1-4-2.2KW |
4KW |
6YL-180 |
28-38turn/min |
2750 x1750 x2350 |
800-1000kg/h |
6-22kw |
2.2kw |
3kw |

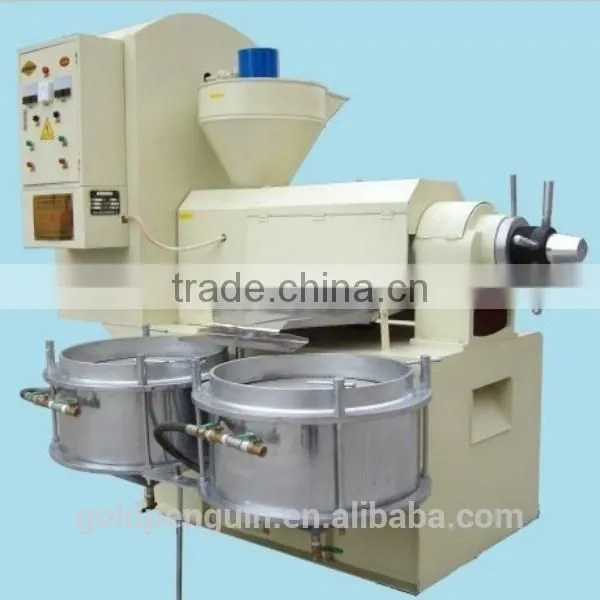

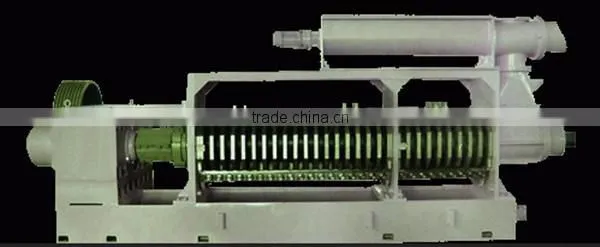

almond oil machine

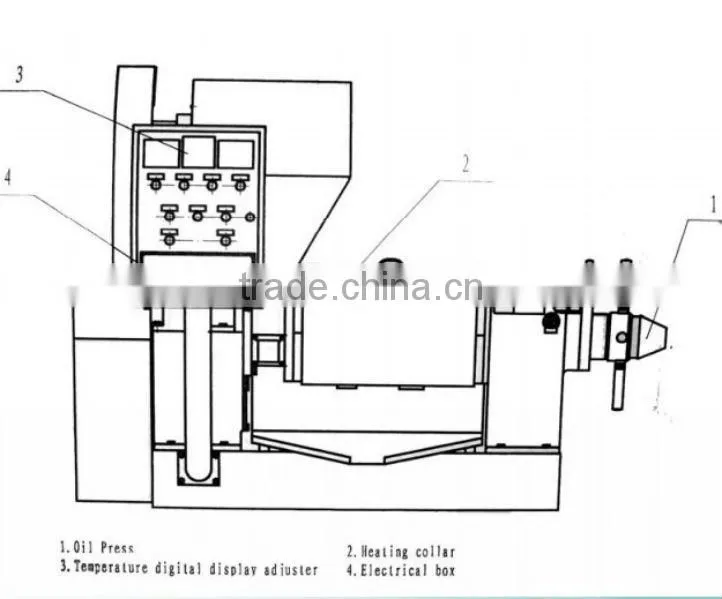

Almond oil mill machinery operating principle:
When oil press operating, the prepared materials enter the pressing chamber from the hopper and then move forwards by the rotating of pressing screw and is pressed under the high-pressure condition in the chamber, friction between material and chamber will be created, which also created friction and relative movement among material particles, on the other hand, root diameter of the pressing screw carries larger from one end to the other. hence, when rotating, it not only pushed particles moving forwards but also turns them outwards as well, meanwhile, particles adjacent the screw will rotation along with screw’ rotating, causing every particle inside the chamber to possess different speed, therefore relative movement among particle creates heat which is necessary during manufacturing. because of helping protein change property, damage colloid, increase plasticity, decrease oil’s elasticity, resulting in high oil productivity.
Almond oil mill machinery advantages:
1.saving labor: only one or two person are able to make production
2.widely-used: the oil press can be used for more than 20 kinds oil crops, such as sesame, peanut, soybean, black seed, sunflower seed, flax, vegetable seed, castor seed, cotton seed, rape seed, camellia seed, walnut, etc. by third levels for one time.
3.pure oil quality:the vacuum oil filtering is used to remove residue so as to ensure the pure oil quality and meet the standard of health quarantine.
4.small land-using:an area of 10-20 square meters workshop can meet the need of production.
Zhengzhou QI'E Grain&Oil Machinery Co.,Ltd is a large-size joint-equity enterprise which specialize in producing edible oil mechanical equipment and it is also a group enterprise integrating scientific research, manufacturing, sales as one. Research Institute of Machine Design Company and Henan, Henan University of Technology (formerly the Zhengzhou Grain College) school-enterprise cooperation in the oil equipment to carry out long-term, protein extraction, phospholipid extraction, etc. R & D and application of new technologies.
