Specifications
PET Bottle Filling Mill1Control by PLC, with weighing requirements.
2 flowmeter ,contol the filling time

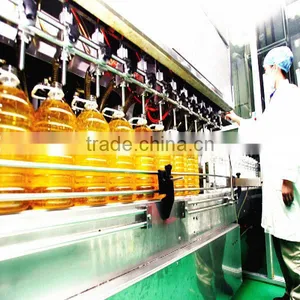

Double Heads PET Bottle Filling Mill
Technical performance:
filling and capping multifunction machine
Performance advantages:
1. Control system----Mitsubishi PLC control system, random minitrimming filling measurement
2.Control panel----Colour touching screen,easy-operated , stable and reliable
3. Function improvement----The feeding nozzle is equipped with filling blocker. This machine can
realize diving filling according to the material properties.(this function can be selected)
4.Real-time alarm----Automatic alarming ,when the fault happens,automatic stopping and alarms
when the system appears serious breakdown.
5.Electrical elements----Adopting international famous brand to ensure the remarkable quality,
stability and high precision.
Machine elements----The parts contacted with the material use the SS316 and non-poisonous, anti-corrosive PTEF hose.Other machine parts use the SS304
6. Counting detection----Real- time counting,reflecting the output directly.
7.Function improvement----Can add intelligent weighing feedback system to realize the
unmanned debugging function.(we having obtained the China patent, counterfeiting not allowed)
8.Maintenance condition----Fully accords to the GMP requirements, easy to disassemble and clean.
Technical parameters:
1.Filling head:4head (4/8 heads can be selected)
2.Application: 20ml-150ml
3. Power: 1.5Kw
4.Suitable barrel diameter: ≤accords to the customer's requiremnets
5.Filling error: ≤±1‰
6.Filling Speed: ≤1000-3000b/h(different filling capacity ,different speed )
7.Overall dimension: 2000mm × 800mm × 2200mm
8.Machine weight: 800 kg
9.Air source requirements: clean 0.55Mpa-0.65Mpa air
