Home > Packaging & Printing > Packing Machinery > Sealing Machine > DGYF-500A Hand Hold Aluminum Foil Sealing Machine Supplier Price

DGYF-500A Hand Hold Aluminum Foil Sealing Machine Supplier Price

Name: DGYF-500A Hand Hold Aluminum Foil Sealing Machine Supplier Price
Brand: JinFeng
SKU: 141237976
Availability: InStock

Guangzhou Jinfeng Light Industry Machinery Co., Ltd.

DGYF-500A Hand Hold Aluminum Foil Sealing Machine Supplier Price thumbnail-1

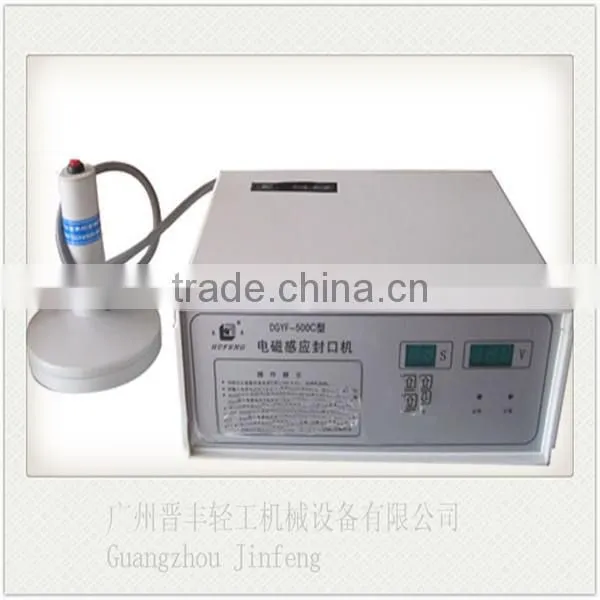

DGYF-500A Hand Hold Aluminum Foil Sealing Machine Supplier Price photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Application:

Beverage, Chemical, Commodity, Food, Medical

Packaging Type:

Cartons, Case

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Application Beverage, Chemical, Commodity, Food, Medical

Packaging Type Cartons, Case

Packaging Material Paper, Wood

Automatic Grade Semi-Automatic

Driven Type Electric

Voltage 220v

Power 500w

Place of Origin Guangdong, China

Brand Name JinFeng

Model Number DGYF-500A

Dimension(L*W*H) custom made

After-sales Service Provided Engineers available to service machinery overseas

Specifications

1. simple operation
2. working is stable
3.Induction sealer

[Product name]DGYF-500A Induction sealer

[Product introduce]

Overview

On plastics, glass and other non-metallic bottle for induction heating sealing, is one of the most advanced, popular with sealing method. By induction heating sealing products, in product quality, prevent the damp, prolong shelf life, enhance the security and the sealing speed and the sealing quality are improved. Has been the majority of drugs, chemicals, beverages, oils, cosmetics and other industries use, and become the necessary sealing equipment.

Working principle

Machine adopts the principle of electromagnetic induction heating, by non-contact induction heating, the induction of membrane instantaneously generate heat to melt, firmly stick to the mouth of the bottle, to achieve the purpose of sealing mouth.

Performance characteristics

The machine adopts manual induction head moving sealing operation, simple operation, is provided with over current, overheat protection circuit, stable and reliable work, long service life.

Note: This machine of aluminum foil composite film and vacuum aluminizing composite membrane is invalid.

Main technical parameters

Voltage	AC220v+10%,50/60Hz
Power	500w
The no-load power	≤0.1A
Max working flow	<8A
Sealing diameter	DGYF-500A 20-100(mm) DGYF-500B 15-35(mm)Suitable for small caliber, high cap DGYF-500C 60-130(mm)Suitable for big caliber DGYF-500D 20-60(mm)Apply with a handle at the oiler
Sealing speed	10-30 bottle/min
Sealing material	Special induction film, aluminum foil composite film
Machine size	340290130(mm)
Machine weight	5kg
Production standard	Q/WCH 01-2007

Operating instructions

1. The machine is placed in a metal bench, connected to power boot. Note: power line area must ≥0.75mm2

2. Voltage meter readings for the current power supply voltage.

3. Sealing time as the initial value of 1.5 seconds, the operator should according to the sealed bottle sealing time adjustment.

4. The loading sensing film bottles in the induction to cast, press the sealing switch, sealing time countdown, when the time to stop back to the set value, the sealing finish. Note: the center of the bottle mouth with quasi induction head center, otherwise there will be side the other side seal on prison phenomenon.

5. Sealing time adjustment: mouth leak, for light hand seal that is off or the sealing membrane and a pad of paper without separation, the need to increase the sealing time. The bottle mouth sealing membrane wrinkled melt obviously, blistering, must shorten sealing time. Changes in the supply voltage exceeds 10V, requires a corresponding increase or decrease in sealing time.
