[Product name] JF-16A Automatic 16 head cosmetic cream filling machine
[Product introduce]
Performance and number
1.Touch screen controller, humanized design, simple and intuitive operation. All the filling quantity of touch screen control.
2.Microcomputer PLC programmable control, convenient conversion specification change parameters.
3.Accurate liquid level sensor automatic feeding atmospheric fixed flow parameters, to help you complete accurate filling operations.
4.Through the special design of integral lifting mechanism, of its own. Convenient adjustment, can meet a variety of specifications and packing of the container. Different from the traditional way of lifting, bending and make pipe too filling time.
5.Photoelectric sensor and pneumatic door linkage control, lack of bottle, pour bottles of automatic protection.
6 .Pneumatic control valve,and high safety.Each port can be adjusted independently and cleaning.
7 .Length×width×height):4000mm ×1200mm×2200mm(the actual shall prevail) .
8 .The filling speed of about 80-100 bottles/per min
Machine weight.450kg (the actual shall prevail).
No. |
Name |
Model |
Remark |
1 |
Check bottle of magic eye*1 |
FS-M1 |
Schneider electric |
2 |
PLC control system*1 |
FP0-C16CT |
Schneider electric |
3 |
Touch screen |
5060ih |
Schneider electric |
4 |
Conveyor belt motor |
YS5624 |
Delta |
5 |
Conveyor belt motor gearbox |
B14 |
|
6 |
Company take the motor |
|
Schneider electric |
7 |
Original steam |
|
Taiwan and dirk |
8 |
Automatic absorption material |
gear pump |
|
9 |
Liquid level switch |
|
|
10 |
Automatic mixing with device |
|
|
11 |
Whole machine |
SUS316L |
Sus304 |
12 |
Electronics |
|
Schneider electric |
13 |
Link joint |
4 time |
Netherlands NCC |

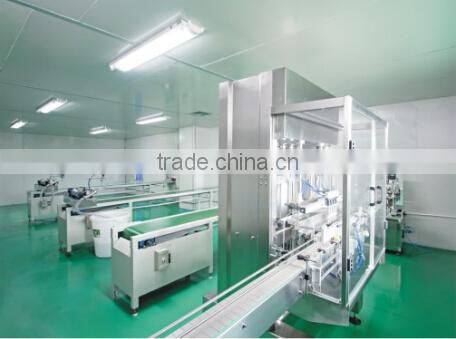

Picture show
