2015 GZJ-A Metal Tube Filling And Sealing Machine
Specifications
Metal tube filling and sealing machine
1.easy to operate
2 have CE control
3.PLC control
4.high speed

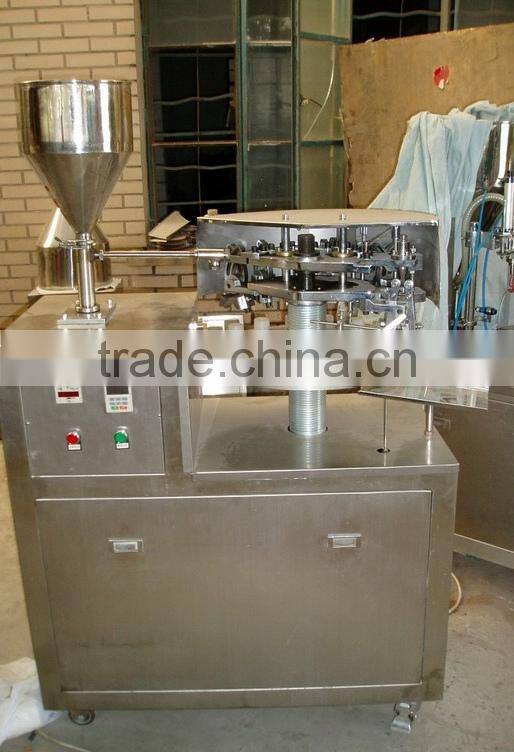

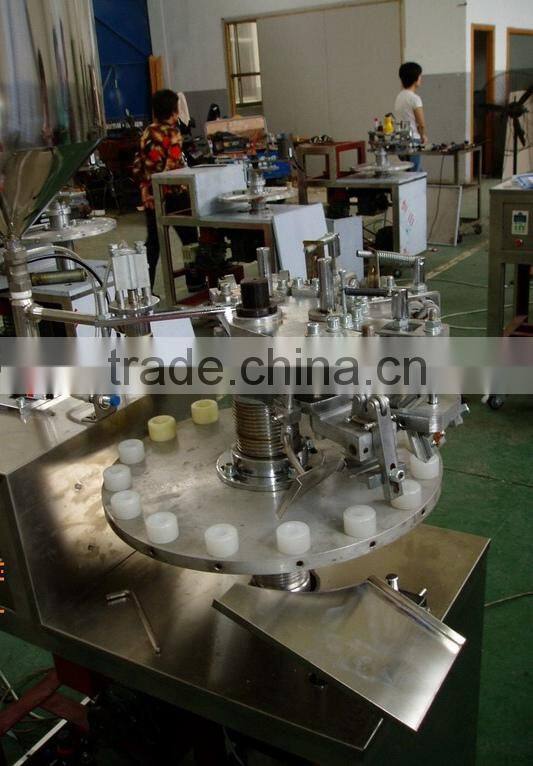

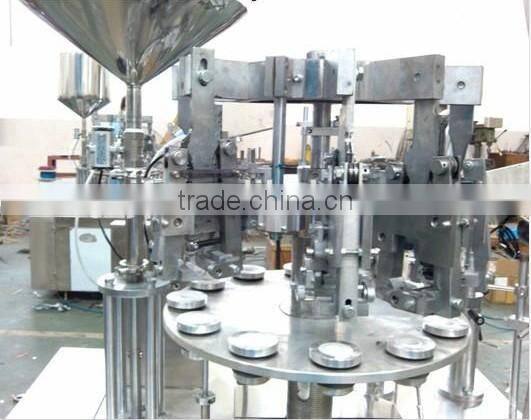

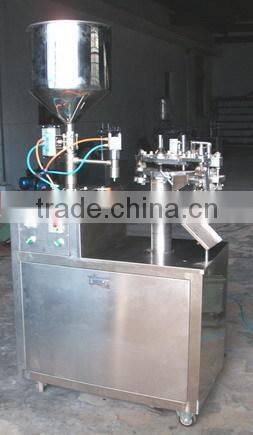

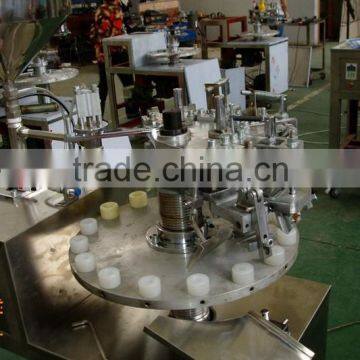

GZJ-A type metal tube filling and sealing machine, mainly used for metal hose for quantitative filling, packaging
materials and sealing. Widely used in pharmaceutical, chemical, food, chemical and other industries Product packaging. Such as: ointment, AB glue, adhesive, chloroprene rubber, epoxy, skin cream, hair coloring agent toothpaste, shoe polish, liquid or paste material filling and sealing. Artificial metal hose into the indexing coil seat (16 stations), using a mechanical driving automatic indexing. Automatic detection, confirmed the tube and inserted correctly, filling system began to automatic measuring and filling, then seventy percent off or sixty
percent off two-way sealing, printing batch number, product exit.
The filling speed and the measurement precision can be conveniently adjusted, the adjustment of high precision, good stability. Metal hose filling replacement base can be applicable to various specifications of the tail, sealing appearance neat, tight sealing. The machine where the material contact parts are made of high quality stainless steel material.
Model |
GZJ-A |
Voltage |
AC 220V±10%50Hz |
Temperature |
5~50℃ |
Filling range |
5-30 25-125 |
Measurement error |
<2% |
Power |
1.1kw |
Compressed air |
0.6--0.7Mpa |
Air supply |
≥0.2M3/min |
Working capacity |
10-50 b/min(Adjust) |
Machine size |
1000*600*1700(mm) |
Machine weight |
400kg |
Guangzhou Jinfeng Light Industry Machinery Co., Ltd. is a manufacturer that produces cosmetic, pharmaceutical, chemical and dairy equipment. We undertake equipment design, manufacture, installation, maintenance, technical improvement support, technical consultancy and other services. Our main products are vacuum homogeneous emulsifying machines, reverse osmosis water treatment machines, automatic and semi-automatic filling machines and all kinds of stainless steel tanks. All of them are of reliable quality and good effect. We have more than ten years' experience in machinery manufacturing and our products have been entered into domestic and overseas markets. The diverse products with high quality can meet various needs of industries mentioned above.
If you are not satisfied, Don't be disappointed,u can tell us ur request and we will recommend one to u. And also can customized, our engineer can exclusively design for u.Thank u for ur inquiry !
