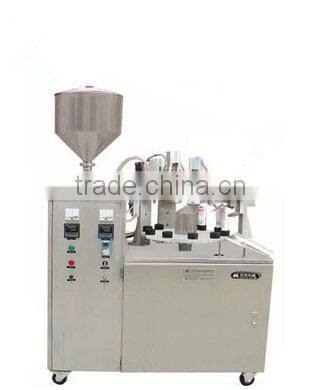

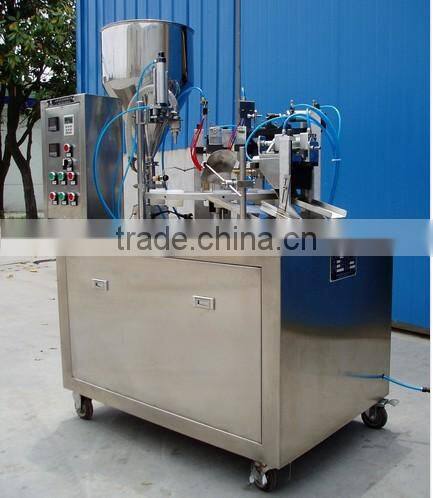

GZJ-B Aluminum-plastic Composite Plastic Tube Filling and Sealing Machine

GZJ-B Aluminum-plastic Composite Plastic Tube Filling and Sealing Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage, Chemical, Commodity, Medical
Packaging Type:
Bottles
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Beverage, Chemical, Commodity, Medical
Packaging Type Bottles
Packaging Material Glass, Plastic
Automatic Grade Automatic
Driven Type Electric
Voltage 220V
Power 150W
Place of Origin Guangdong, China
Brand Name Jinfeng
Model Number GZJ-B
Dimension(L*W*H) 1230*700*1400mm
Weight 230kg
Certification ISO9001
After-sales Service Provided No overseas service provided

[Product name]   GZJ-B aluminum-plastic composite plastic tube filling and sealing machine

 GZJ-B aluminum-plastic composite plastic tube filling and sealing machineGZJ-B aluminum-plastic composite plastic tube filling and sealing machine

[Product introduce]



Use



This machine is mainly used for composite hose, plastic tube is a quantitative filling, packing container material and sealing, this machine is widely used in pharmaceutical, chemical, food, chemical and other industries packaging. Such as cream, skin cream, toothpaste, shoe polish, glue, AB glue, epoxy glue, hair coloring agent, etc., liquid or cream filling and sealing.



Working principle



Artificial the pipe is inserted into the sockets, through mechanical transmission, automatic rotation of eight stations, when the photoelectric detection to the tube, quantitative filling; no tube no filling, through heating, sealing, batch number, the product launch package shear.



Feature



Composite tube filling and sealing machine uses the stainless steel manufacture, all work with high precision cylinder stroke, easy to adjust filling volume, the filling speed can be adjusted. Sealing appearance neat, tight sealing, high precision, good stability. Optional according to different materials: hopper heating system, anti-drawing filling head.



Main technical parameters



Model

GZJ-B

Voltage

AC 220V   50HZ

Power consumption

150W×8(Tube heating)

Air supply

0.6-0.8(MPa)

Gas consumption

<30(dm³/min)

Filling range

 5-75    20-150   30-250(ml)

Working capacity

20-40(b/min)

Measurement precision

<2%

Machine size

1230×700×1400mm

Machine weight

230kg
