WPC Broom handle stick making machine Plastic Machinery
wood milling/pulverizer machine
wpc crushing machine
wpc mixing machine/wood powder plastic material mixer
wpc granulating/pelletizing machine
wpc board/profie production line
PVC WPC foam skinning board extrusion line
PE/PP WPC profile making extruder line
1. CE/ISO9001 certificate.
2. Warranty is a year(12months).
3. T/T, L/C are both accepted by our industry.
4. Testing, We can arrange the machine testing according to your requirements.
5. After-sales services: Our engineers can do the installation and testing services in your area.
6. Delivery time, our Production Department can arrange the delivery within 35days after our Account Departmen confirmed the down payments.
All kinds of machine running video list(copy and paste into browser)
/channel/UC_hh85lhZMx2ycw6mN3E03g
WPC Broom handle stick making machine Plastic Machinery
Introduction of wood plastic machinery process
Wood plastic broom stick extrusion line/broom handle/broom stick making machine
Wood Powder(65%-70%) + 100% recycled PE/PP plastic flakes(20%-30%) +chemical additives(5%-10%)→PE/PP WPC granules →PE/PP WPC profile products
The wood-plastic is new kind of synhetic material through the process of crushing, milling, mixing, granulating, extruding, calibrating, hauling off and cutting, which uses PVC, PP,PE resin or recycled plastic and plant fiber(wood powder, chaff, straw, etc.) as raw material. This kind of wood plastic is not only very similar with naturalwood in apperance and feel, but also has the same characteristics as wood of being sawable, planeable, drillable.
WPC Products usements:
The wood plastic products are widely used in outdoor floor, close to water construction, balcony, landscape architecture, chairs and benches, fences, interior doors and windows, furniture, etc.
The machines can also be manually adjusted separately. With the advantages of good plastication, low energy consumption, such as vacuum calibrating platform, haul off machine, cutting machine and material stacker. It is mainly used for extruding outdoor decorative wpc profiles, such as gardening landscapes, outdoor landscapes, pallets, etc.
| Item/Model | SJMS65/132 | SJMS80/156 | SJMS92/188 |
| Screw diameter(mm) | 65 | 80 | 92 |
| L/D ratio | 22(25) | 22(25) | 22(25) |
| Output (kg/h) | 200-240 | 250-350 | 400-500 |
| Heating Power(kw) | 37 | 55 | 110 |
| Heating Power(kw) | 4ZONE, 20KW | 5ZONE, 38KW | 6ZONE,54KW |
Pictures
WPC CPMPLETE PRODUCTION MAKING LINE PROCESSING
WOOD MILLING MACHINE FOR MAKING THE WOOD POWDER + RECYCLED PLASTIC MATERIALS (THROUGH THE CRUSHING MACHINE, PLASTIC MILLING MACHINE) +OTHER ADDITIVES --- THROUGH THE EXTRUDING SYSTEM

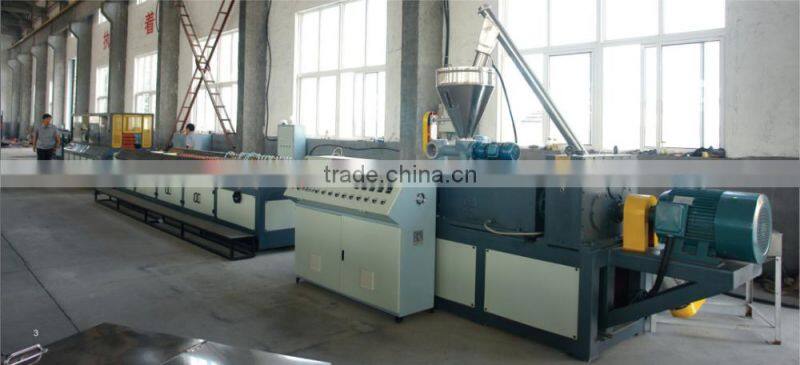

WPC Profile Broom Handle Production Line
Extruder
Die head and Mould
Haul off machine and Cutting machine
WPC CPMPLETE PRODUCTION MAKING LINE PROCESSING
WOOD MILLING MACHINE FOR MAKING THE WOOD POWDER + RECYCLED PLASTIC MATERIALS (THROUGH THE CRUSHING MACHINE, PLASTIC MILLING MACHINE) +OTHER ADDITIVES --- THROUGH THE EXTRUDING SYSTEM
| Name of machine | picture | function |
| Wood milling machine | ; |
milling the recycled wood pieces, wood straw,etc into wood powder |
| WPC Crushing machine | |
crushing recycled plastic/ recycled wpc products into flakes |
| PVC WPC mixing machine | |
mixing the wood powder, pvc powder and auxiliary materials |
| PVC WPC foam board extrusion line | |
Extruding PVC WPC board products |
| PE/PP WPC mixing machine | |
mixing the PE/PP +wood powder +auxiliary materials |
| PE/PP WPC granulating machine | |
granulating mixed materials into granular |
|
PE/PP WPC profile extrusion line PVC WPC door frame machine line(changing the screw and mould) |
|
extruding PE/PP WPC profile
|

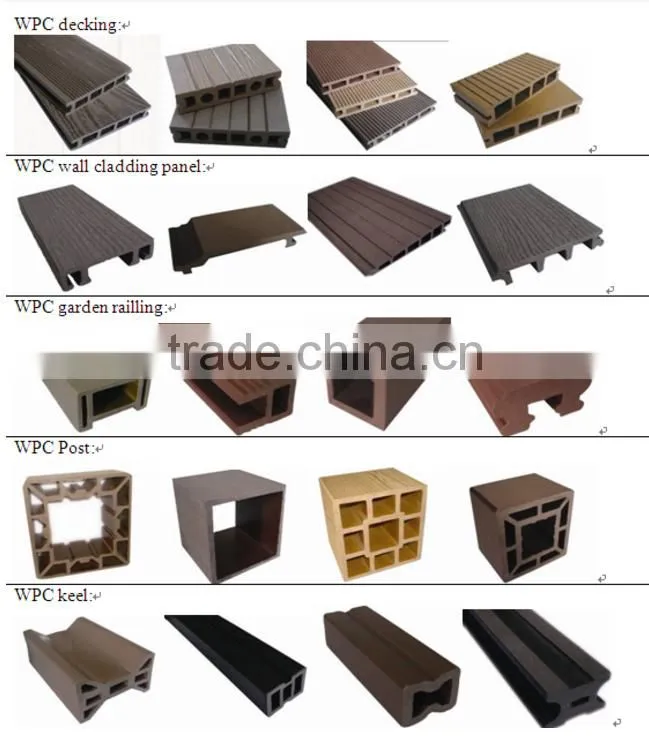

WPC PE/PP PRODUCTS (Broom handle machiney change mould can produce these products)
As exported standard
1. We will provide the Feasibility Analysis Report for the wood-plastic project.
2. We will provide the model selection and technical parameter for wood-plastic machinery.
3. We will provide the design for the plant and electric power accounting for the facilities.
4. We will provide the design for wood-plastic formular according to the product requirements.
5. We will provide the technology of wood-plastic product surface treatment.
6. We will provide the technique training for operator.
7. We will provide solution for the practical problem during the production.
8. We will install and test the machine for free.
9. We will provide the turnkey project to customers.
QINGDAO HEGU WOOD-PLASTIC MACHINERY CO., LTD. is a joint-stock private high-tech enterprise, which is devoting itself to the research, development and production of various wood plastic machine and products, It is always making innovations and keeping up with the times.
We provide serious of wpc extrusion line for customers. Our main products including: wood milling machine, WPC thin plate extrusion line, WPC thickness plate extrusion line, WPC profiles extrusion line, WPC decking extrusion line, WPC granulating machine, PVC WPC foamed plate extrusion line, WPC PVC skinning foamed plate extrusion line, PVC/PE/PP wood-plastic profile extrusion line and other auxiliary equipments.
Customers & Salers
Q.: Are you a trade company or a factory ?
A.: We are a factory which do business in machinery line for more than 15years.
Q.: What is the WPC production line price ?
A.: The WPC production line is about 40,000usd-80,000usd. The details price and further information, Please add my whatsapp: +86 183 6427 1532 and send an enquiry to me. (Lucy)
Q.: Visit factory ?
A.: You only need to confirm the time and your reaching place then we will arrange to pick up you from airport or hotel to our factory. Welcome you !
Q. : Delivery time ?
A.: We have the WPC machinery line in stocks, after our Account Department confirm your payment, we will delivery goods within 40days.
Q. : Payment terms ?
A.: 30% of total amount should be paid by T/T as down payment, the balance (70% of total amount) should be paid before delivery by T/T or confirmed irrevocable L/C at sight.
100% confirmed irrevocable L/C at sight also can be accepted by our factory.
Q. : Installant and test ?
A.: Seller send technician to buyer’s factory installed and tested the machinery, teach the workers
how to use it. The buyer should pay the fee of tickets, accommodation and the salary of workers 80dollars per day per person.
Q.: Samples of finish products ?
A.: We can supply the customers free samples of finish products, and the freight cost need to be paid by customers.
