Specifications
WPC PE/PP Granulator for Recycled Wood-Plastic1) CE Certificated
2) in stock
3) high efficiency and high output
4) 240kgs/h

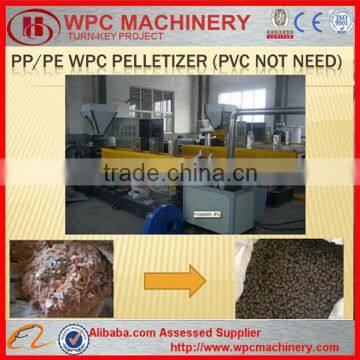

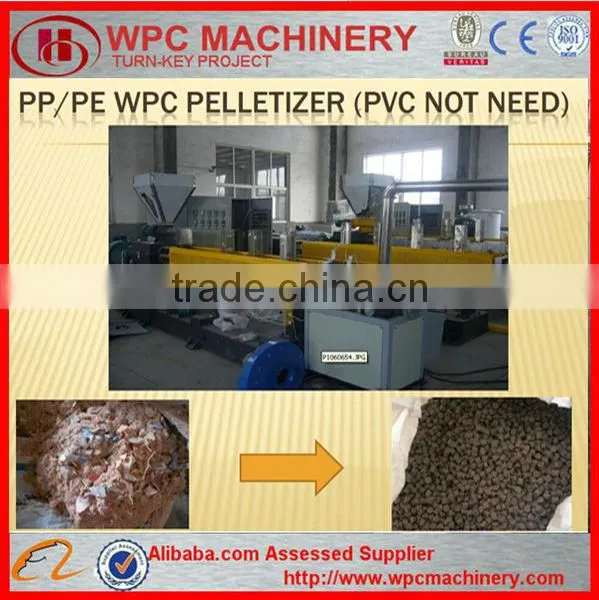

WPC PE/PP Granulator for Recycled Wood-Plastic

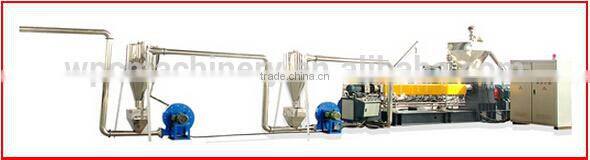

WPC Granulating Machine Line
WPC granulating Machine Line Application:

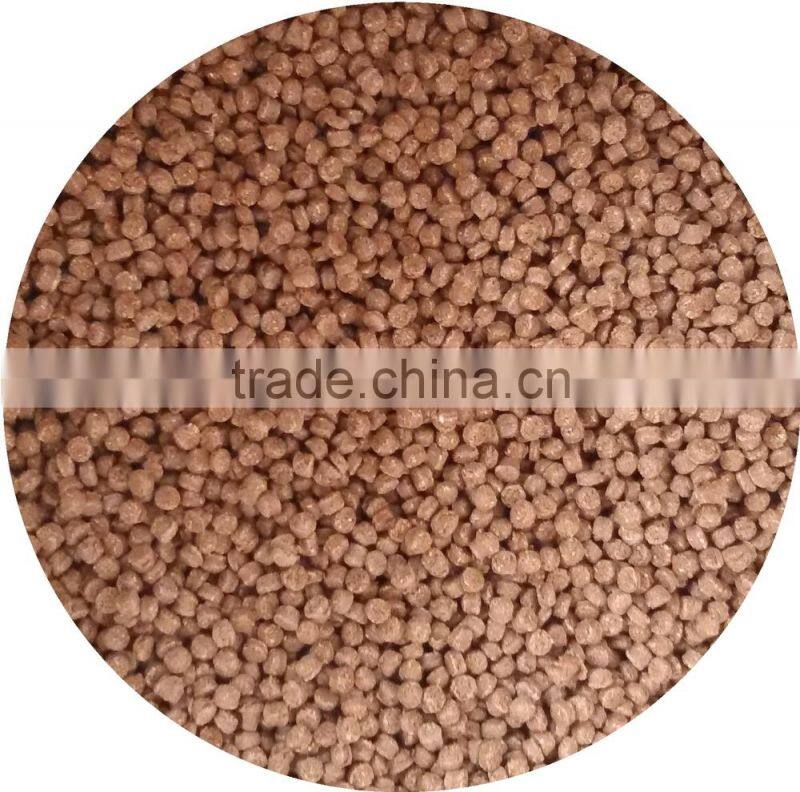

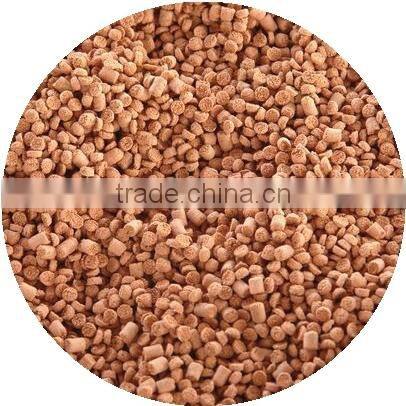

to make wood plastic composites (PP PE ABS PVC) pellets/ WPC granules especially for WPC extrusion line

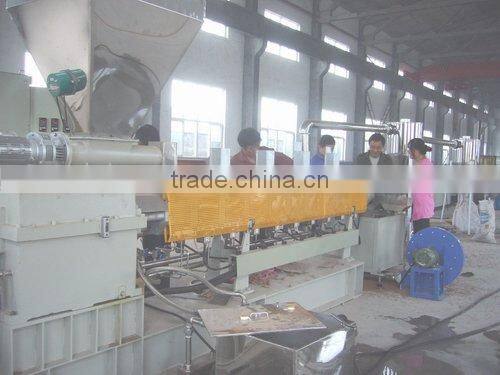

This Co-Rotating parallel twin-screw granulating machine consist of co-rotating parallel twin-screw extruder, granulate die head, granule cutting machine, three-grade air supplying system, storage chamber, etc. This WPC granulating production line has features of high efficiency, low energy-consumption, etc, especially applicable to the WPC granulation process.
The parallel twin-screw adopts modular construction, with advantages of all gear-closing and strong self-cleaning.
The barrel has a good exhaust effect. The bi-metal alloy bushing is of wear-resistance and corrosion-resistance. The machines can be combined freely according to the material characteristics and production process, so it is of widely use.
Die head is made from high-quality mould steel, under hard chrome plating treatment. The reasonable-distributed material running channel can ensure the uniform extrusion of the granules without mutual influence.
The unique three-dimensional cooling structure and the new-type multi powerful blower cooling mode make the cooling effect better.
Besides, the precise cutter ensures the even and smooth surface of the products. The speed frequency regulation meets different granulating requirements.
The pelletizing extrusion line contains following parts:
Granulator Mixing machine:
Mixer machine units are widely used in mixing ,drying ,coloring for all kinds of resin such as PVC ,PP, PE .They can also be applied in dryness of ABS, polycarbonate,and mixing hydroxybenzene ,Alde Hyde Resin.
This unit is composed for one hot mixing pot and one cooling pot ,the material from hot mixer will be filled into the cooling mixer automatically,so it can eliminate huminaty.And protect from agglomeration.

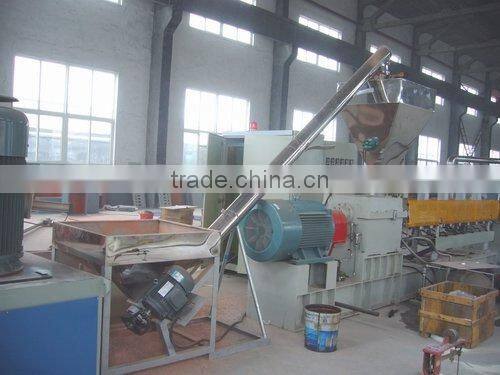

Measuring material feeding device and parallel double-screw extruder:

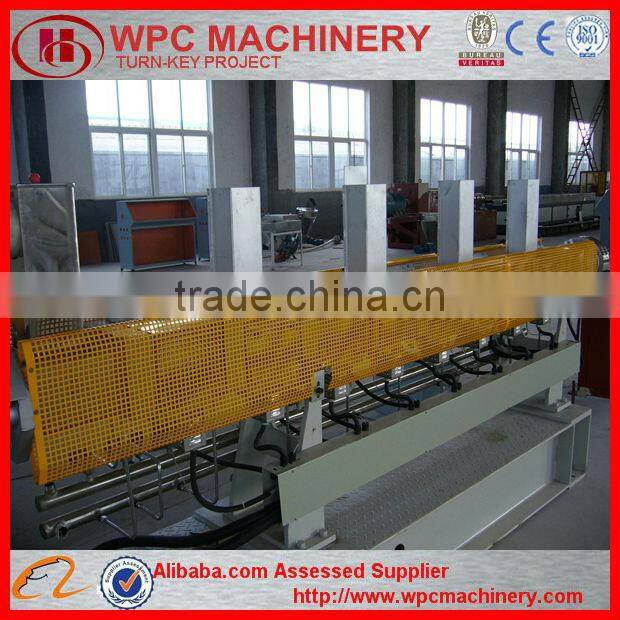

Granulator Degassing vent:
Features: more vents designed to easy expel moisture and gas

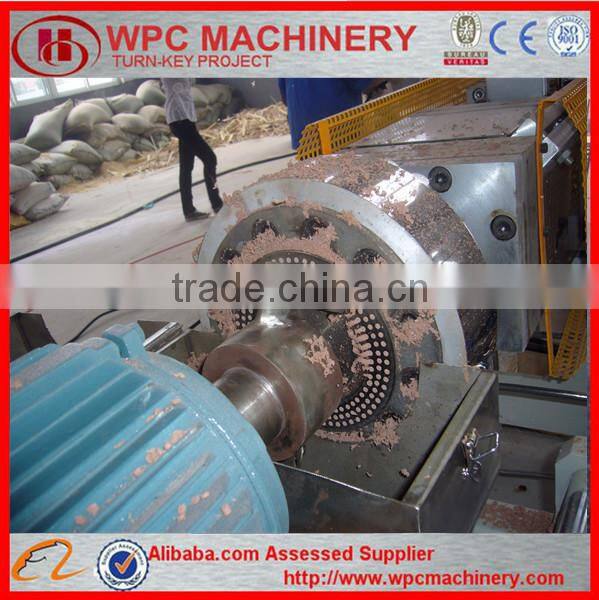

Pelletizer Cutting die head:
the pelletizing die head is hot pelletizing, face to face pelletizing, it makes high output and the wpc granules are cut of almost same size

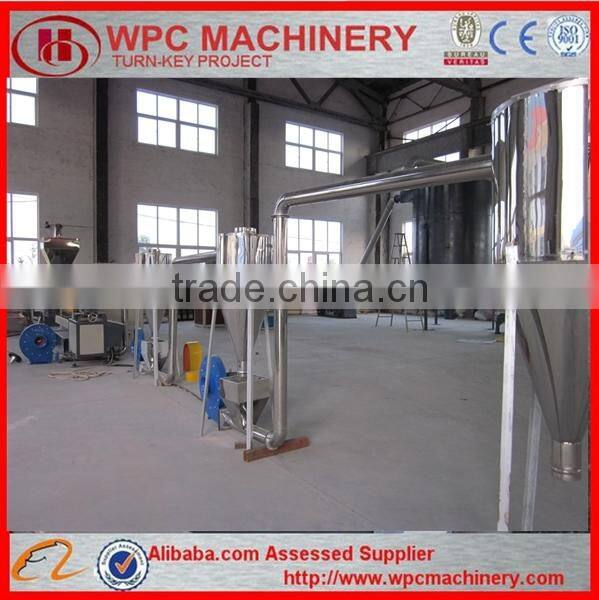

three-grade air supplying system, storage chamber, etc.
The complete WPC wood plastic granulating machine line:
| Model | Screw diameter | screw quality | L/D | Main motor(kw) | Rotating speed | Capacity(kg/h) |
| SJMS 60 | 60 | 2 | 28-48 | 45-55 | 0-400/600 | 90-120 |
| SJMS 65 | 65 | 2 | 28-48 | 55-75 | 0-400/600 | 150-280 |
| SJMS 72 | 72 | 2 | 28-48 | 90-132 | 0-400/600 | 180-450 |
| SJMS 75 | 75 | 2 | 28-48 | 90-132 | 0-400/600 | 180-450 |
| SJMS 95 | 95 | 2 | 28-48 | 220-280 | 0-300/400 | 450-900 |
Guarantee:
1 year (12 months) counting from the machinery installed and tested by our engineer, free change for the broken spare part for free during guarantee period.
Install and test:
Professional engineer will be sent to your company to install, test and teach operator at your factory
Operation book and video:
Operational manual book and video will be sent together with custom clearance documents
1.We will provide the Feasibility Analysis Report for the wood-plastic project.
2.We will provide the model selection and technical parameter for wood-plastic machinery.
3.We will provide the design for the plant and electric power accounting for the facilities.
4.We will provide the design for wood-plastic formula according to the product requlrements.
5.We will provide the technology of wood-plastic product surface treatment .
6.We will provide technique training for operator.
7.We will provide solution for the practical problem during the production.
8.We will install and test the machine for free.
9.We will provide turnkey project to customers.
Our company can supply total WPC (wood plastic composite) production line, including wood milling machine, PVC milling machine, Mixer, PVC foam board machine, Chiller, Air compressor, Plastic crusher, etc.
We have this machine in our stock now, please come and check our machine running.
Contact Person: Sally
Mobile: 86-18366236672 Skype: s88sally
Email: sally(at)
salersally(at)
