- Qingdao Hegu Wood-Plastic Machinery Co., Ltd.
- China Manufacturer with main products:Plastic Machinery Plastic Pipe Machine ,Plastic Plate Machine ,WPC Profile Machine ,WPC Plate Machine ,Single Wall Corrugated Pipe Machine ,Double Wall Corrugated Pipe Machine ,Plastic Machinery Milling Machine ,WPC Granulating Machine ,WPC Profile Making Machine ,WPC Board Making Machine ,WPC Foamed Board Making Machine ,WPC Foaming Board Making Machine ,Auxiliary Machine
Home > Products > WPC granulating extruder > pelletizer, pelletizing machine for recycled plastic
pelletizer, pelletizing machine for recycled plastic
- 8 Set / Sets per Month
- qingdao
- T/T Credit Card
Product Details
Condition: | New | Application: | Granules | Plastic Processed: | Other, pp pe pvc + wood powder |
Screw Design: | Double-screw | Automatic Grade: | automatic | Place of Origin: | Shandong, China |
Brand Name: | QINGDAO hegu wpc machinery | Model Number: | SJMS 60 65 72 75 95 Series | Voltage: | 220-440V or as local |
Power(W): | 110KW wpc granulating machine | Dimension(L*W*H): | 20*2*5m wpc granulating machine | Weight: | 16000 KGS |
Certification: | CE ISO9001 | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
pelletizer, pelletizing machine for recycled plastic1) WPC granules extruding machine
2) CE
3) high capacity
pelletizer, pelletizing machine for recycled plastic
Wood plastic Composite PP PE Granulating machine
Measuring material feeding device | Specification |
Screw of feeding device | Diameter : 120mm |
| Inner height : 0.8m |
Diameter : above 0.8m | |
Driving motor : 1.5kw | |
The type of motor : AC motor |
One example for pelletizer, pelletizing machine for recycled plastic technical parameters:
SHJ-72 Parallel Double-Screw Extruder
The Auxiliary Machinery
Consistent of auxiliary machinery | Specification |
Material of fan bush | Stainless steel |
Cutting die head | Hot cutting die head |
Cutting lathe | The blade on the cutting lathe ,with speed frequency regulation ,the power of converter : 1.5kw |
Splitter filter | Diameter 800mm,Quantity : 2 sets |
Three fan cooling pipe | Equipped with 3 sets of fan blower, Power : 5.5kw |
Storage | 2m3 |
parallel double screw extruder, granulate die head, granulate cutting machine, three-grade air supplying system, storage chamber.
Model | Screw diameter (mm) | Screw quantity | L/D Ratio | Main Motor (kw) | Rotating Speed (rmp) | Capacity (kg/hr) |
SJMS-60 | 60 | 2 | 28-48 | 45-55 | 0-400/600 | 90-200 |
SJMS-65 | 65 | 2 | 28-48 | 55-75 | 0-400/600 | 150-280 |
SJMS-72 | 72 | 2 | 28-48 | 90-132 | 0-400/600 | 150-400 |
SJMS-75 | 75 | 2 | 28-48 | 90-132 | 0-400/600 | 180-450 |
SJMS-95 | 95 | 2 | 28-48 | 220-280 | 0-300/400 | 450-900 |

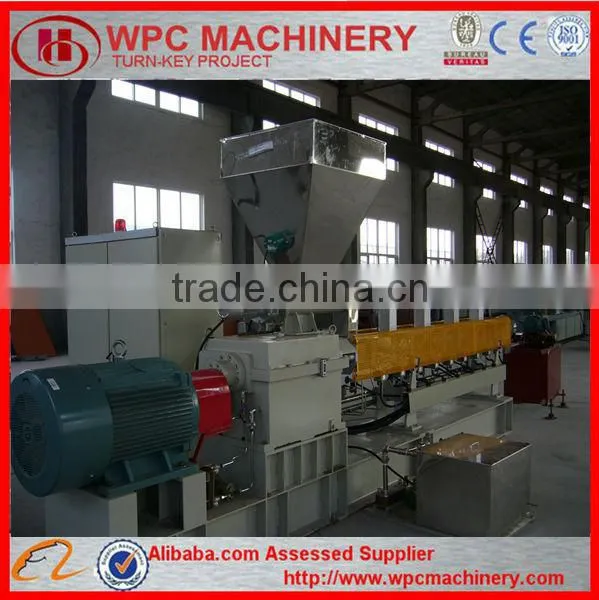

Machine's Photos
The complete pelletizer:
parallel twin-screw extruder
granulate die head
granule cutting machine
three-grade air supplying system
WPC pellet production line is including the following parts:
parallel double screw extruder, granulate die head, granulate cutting machine, three -grade air supplying system, storage chamber.
model | screw diameter | screw quality | L/D | main motor (KW) | rotating speed | capacity(KG/H) | |||||
SJMS-60 | 60 | 2 | 28-48 | 45-55 | 0-400/600 | 90-120 | |||||
SJMS-65 | 65 | 2 | 28-48 | 55-75 | 0--400/600 | 150-280 | |||||
SJMS-72 | 72 | 2 | 28-48 | 90-132 | 0--400/600 | 180--450 | |||||
SJMS-75 | 75 | 2 | 28-48 | 90-132 | 0-400/600 | 180--450 | |||||
SJMS-95 | 95 | 2 | 28-48 | 220-280 | 0-300/400 | 450-900 |
parrellel double screw extruder
granulator die head
the completely line
final product
Guarantee:
1 year (12 months) counting from the machinery installed and tested by our engineer, free change for the broken spare part for free during guarantee period.
Install and test:
Professional engineer will be sent to your company to install, test and teach operator at your factory
Operation book and video:
Operational manual book and video will be sent together with custom clearance documents
Contact Person: Sally
Mobile: 86-18366236672 Skype: s88sally
Email: sally(at)
salersally(at)
