Specifications
Double screw WPC PE granulating machine lineHigh output parallel double screw

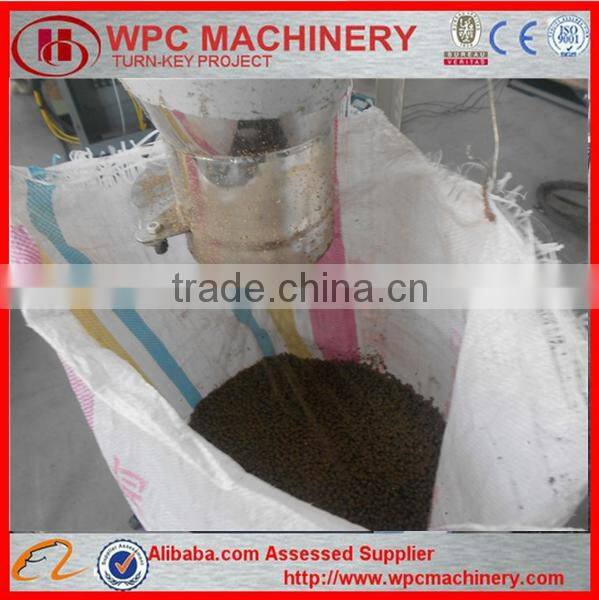

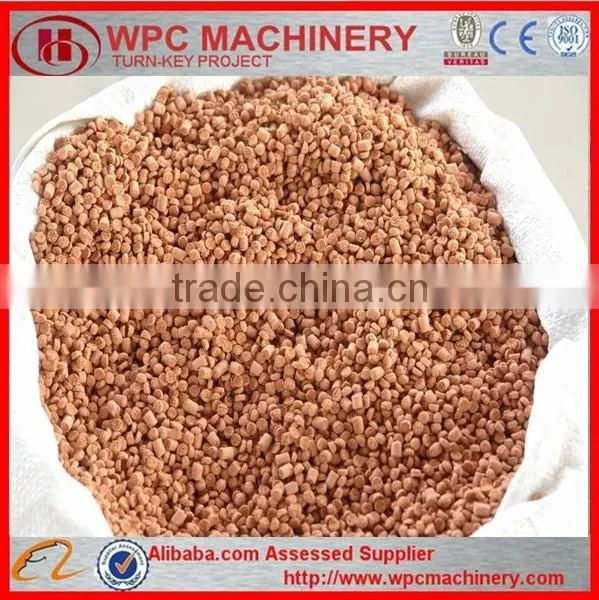

Good quality plastic pellets/ granules
Double screw WPC PE granulating machine line
WPC PP PE PVC pellets/ granules Extrusion Machine
High Output PE Plastic Granulate Machine
Plastic Pellets Making Machine Granulating from Recycled Plastic PP PE
Wood Plastic Composites WPC Granulating Extruder, WPC Pelletizing Machine
MACHINE RUNNING VIDEOS ON YOUTUBE
| 4 PE WPC granulating machine /Pelletizing machine | http://youtu.be/9uYPR0gpPg0 |
| 4 WPC plastic PE granules/pellets making machine/ wood plastic pelletizing machine line | http://youtu.be/lVywuSYo6Lk |

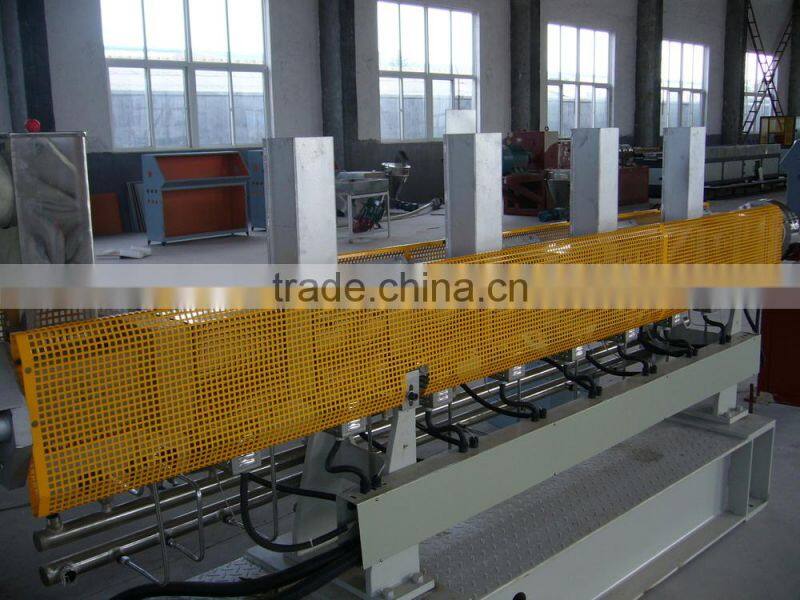

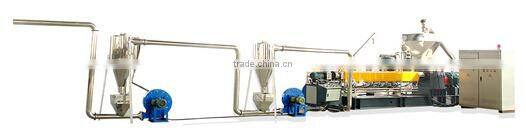

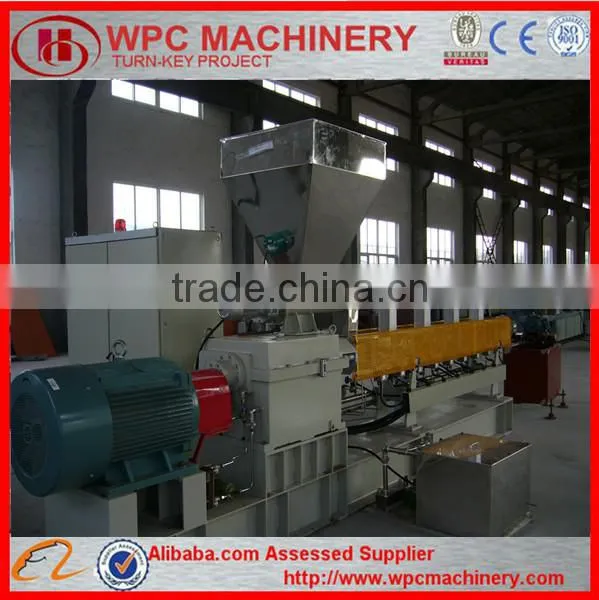

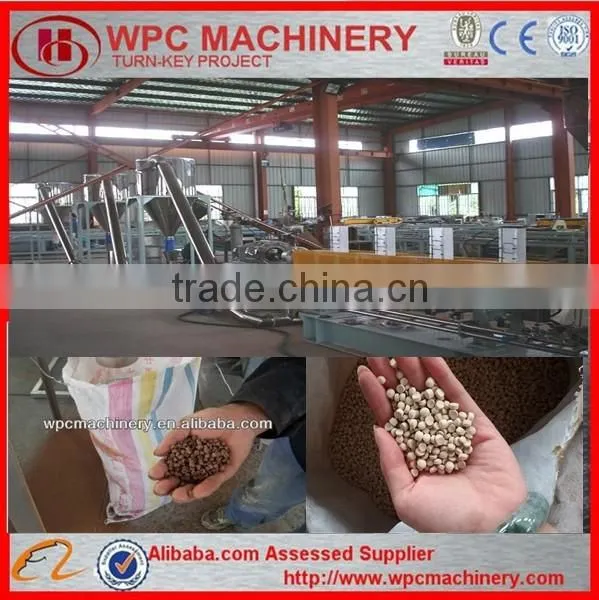

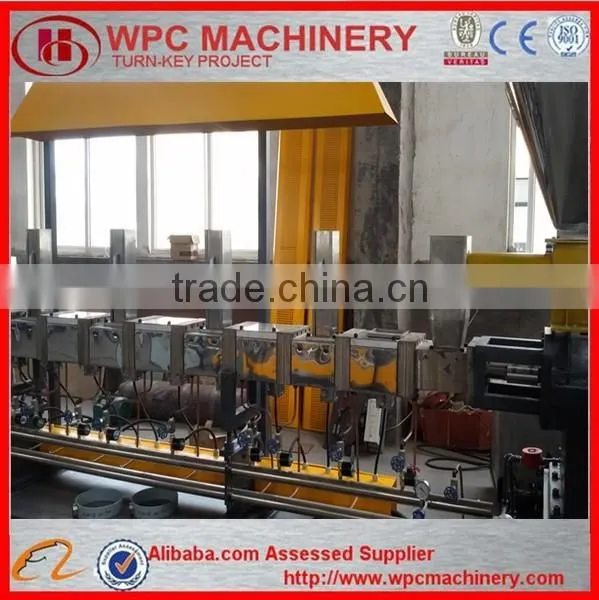

Double screw WPC PE granulating machine line :
Consistent of auxiliary machinery | Specification |
Material of fan bush | Stainless steel |

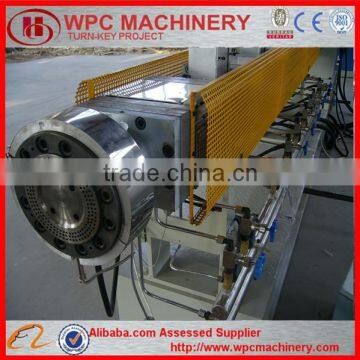

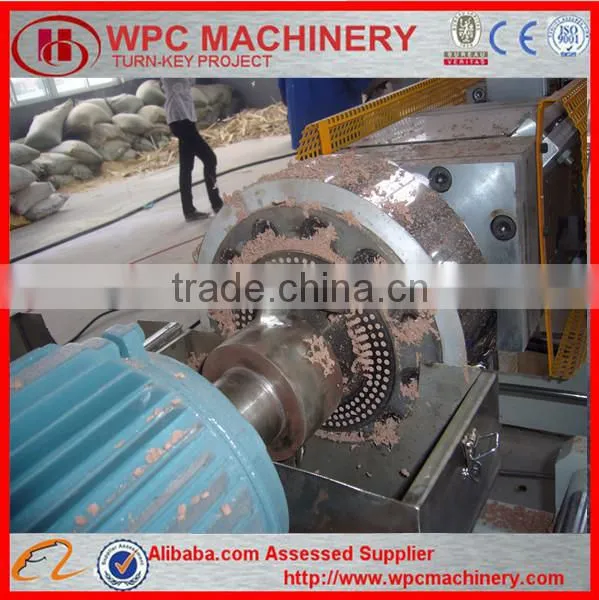

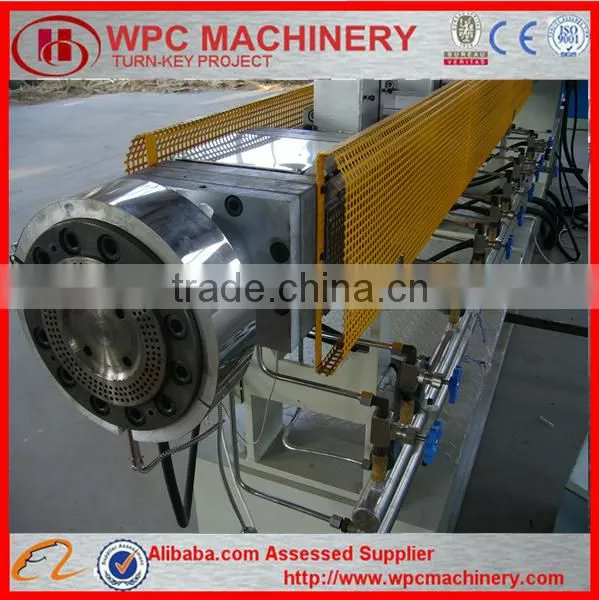

Cutting die head | Hot cutting die head |
Cutting lathe | The blade on the cutting lathe ,with speed frequency regulation ,the power of converter : 1.5kw |
Splitter filter | Diameter 800mm,Quantity : 2 sets |
Three fan cooling pipe | Equipped with 3 sets of fan blower, Power : 5.5kw |
Storage | 2m3 |
WPC PE Plastic Pellets making machine Models for your selection:
| Model | Screw Diameter(mm) | Screw Qty | L/D Ratio | Main Motor (kw) | Rotating Speed (rpm) | Capacity/ Output |
| SJMS-60 | 60 | 2 | 28-48 | 45-55 | 0-400/600 | 90-200 |
| SJMS-65 | 65 | 2 | 28-48 | 55-75 | 0-40/600 | 150-280 |
| SJMS-72 | 72 | 2 | 28-48 | 90-132 | 0-40/600 | 150-400 |
| SJMS-75 | 75 | 2 | 28-48 | 90-132 | 0-400/600 | 180-450 |
| SJMS-95 | 95 | 2 | 28-48 | 220-280 | 0-300/400 | 450-900 |
Processing line from wood powder to final WPC products:
| machine name | model | function | output |
| WOOD milling machine | HGMS60-50 | wood powder | 300-500kgs/h |
| plastic crusher | SWP360 | crush various sorts of plastic | 400kgsh |
| PE WPC Mixer | SHL 500A | mix wood powder and plastic pieces | 500liter |
| PE wpc Ggranulator | SJMS 65 | WPC pellet/ granules making | 150-280 kgs/h |
| WPC Extrusion line | SJMS65/132 | make WPC deckiong/ fence/ wall panel/ cladding and other WPC profiles and plates | 240kgs/h |
Surface treatment machines:
| Embossing machine | single/double face wmbosser | embossing width: 400-1300mm |
| Brushing machine | HG 400 | max napping width: 400mm |
| Sanding machine | HG400 | max sanding width: 400mm |
As for the embossing patterns, we can design for your selection or do as per your samples/ requirements.
1.milling machine: Make wood powder 2. vertical mixer: mix wood powder and plastic
3. Double screw WPC PE granulating machine line : make WPC(wood plastic composite) granules
4.extruding: make wpc profile products 5. embossing or poloshing: surface treatment

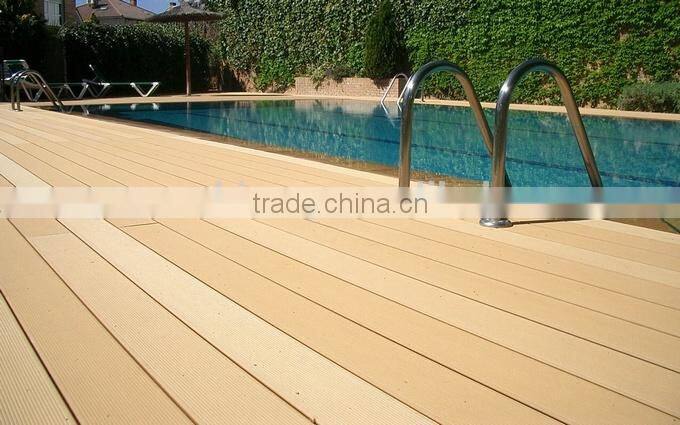

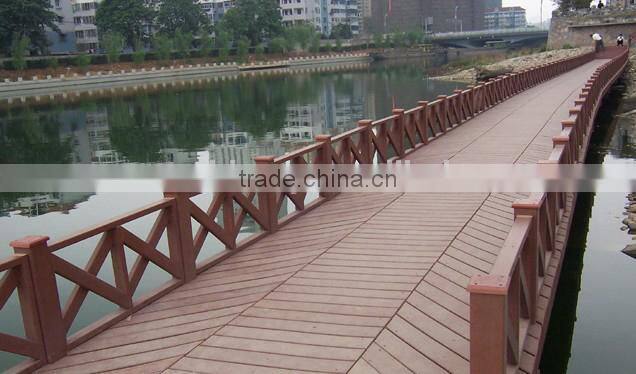

WPC Wood Plastic Machine for Fencing/balustrades around the water
:
We have rich experience in making wpc machine, we have installed successful WPC turnkey project in Many countries, such as Romania, Australia, Uzbekistan, Indian, Malaysia, Ecuador, Lebanon, Russian, Turkey, Saudi arabia, China...
WPC (wood plastic composite) machineries we provide:
Wood miller/ wood milling machine;
Wood pulverizer/ chipper;
PVC PE WPC mixer;
Parallel/ Conial Double Screw Extruder WPC Granulating machine line;
Parallel/ Conial Twin Screw PP PE PVC Profile Extrusion machine line, extruding machine line;
PVC WPC skinning/crust foam board/ door board/ Wood plastic plates extrusion line;
Co-extrusion PVC board machine line;
Surface treatment machines: embossing, sanding, brushing, lanination
And other auxiliary machines testing machines.
We have all Double screw WPC PE granulating machine lines in stock, you could come to our factory for a meeting. Please contact me if any query. Thanks!
Email: sally(at)
Mob. & Viber & Whatsapp: 86-183-6623-6672
