Specifications

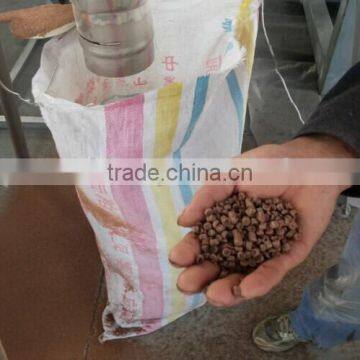

wpc granules production line wpc plastic pellets machine1.100% recycled plastic
2.rice straw..for wood
3.high output

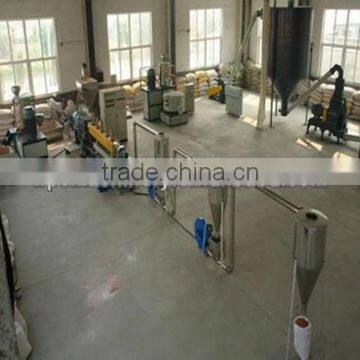

wpc granules production line wpc plastic pellets machine
Measuring material feeding device |
Specification |
Screw of feeding device |
Diameter : 120mm |
|
Inner height : 0.8m |
Diameter : above 0.8m | |
Driving motor : 1.5kw | |
The type of motor : AC motor |

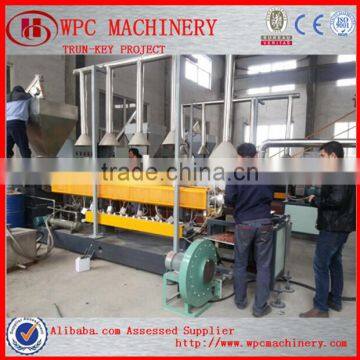

SHJ-72 Parallel Double-Screw Extruder quantity : 1
The consistent of extruder |
Specification |
Bearing |
Velocity ratio : i=3.75 Output rotating speed : 400rpm Central distance : 52mm Transmission body case :cast iron and optimized assembly design of anti-noise Gear:high precision of 6-grade,and hard-tooth surface of high speed and heavy loading ability . Material of gear shaft is 20CrNi2MoA ,HRC58-62. |
Shaft |
among all the bearings,two groups are thrusting bearings of series connection and others adopts Japanese "NSK"bearings Bearing : among all the bearings ,two group are thrusting bearings of series connection and others adopts Japanese "NSK"bearings . |
Lubricating system |
Inside of transmission case the bearings are of oil-immersion state Gear mesh and bearing are with compulsive shunt-circuit oil pressure lubricating Lubricating and cooling unit adopts cooler of outlay-type and specification is 1.3m3 Lubricating oil pump is of BB-B10 type with power of 1.1kw and the lubricating oil is of 46# engine oil . |
Motor |
The power of motor is 132kw (alternating current )under frequency control and equipped with ABB frequency converter. Rotating speed : 1500rpm |
Screw |
Diameter of screw : 71.5mm Adopt high quality 38Cr MoAIA ,under nitrogen treatment the hardness of nitride layer:HV950-1050, depth is 0.4-0.5mm,brittleness is of 1 degree Connecting mode with spindle : rectangle integral key |
Spindle |
Material:adopts high quality alloy steel 40CrNiMo,with good intensity ,hardening and tempering hardness is HB260-300 Connecting mode with screw : rectangle integral key |
Barrel |
Inner diameter:72mm Material:the inner of barrel adopts bi-alloy bushing,hard-wearing alloy.Length for per section is 290mm,and in total there are 9 sections and the total length is L=2610mm The first section:principal charging-in section.the barrel is usually cooled with water The fifth section:vacuum pumping section The eighth section vacuum pump section Barrel heating with 8-section.for each section there is independent circulating water cooling Barrel protective cover:stainless steel protective cover of sectional type |
Capacity |
300-350kg/h |
The Auxiliary Machinery
Consistent of auxiliary machinery |
Specification |
Material of fan bush |
Stainless steel |
Cutting die head |
Hot cutting die head |
Cutting lathe |
The blade on the cutting lathe ,with speed frequency regulation ,the power of converter : 1.5kw |
Splitter filter |
Diameter 800mm,Quantity : 2 sets |

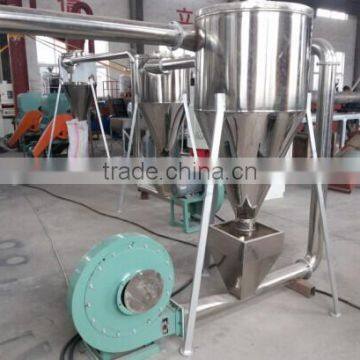

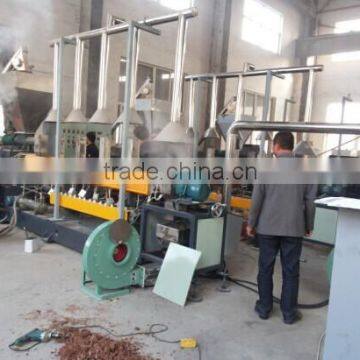

Three fan cooling pipe |
Equipped with 3 sets of fan blower, Power : 5.5kw |
Storage |
2m3 |
Please contact with Mr.Evan Cell: 0086-15194278092
