Home > Products > Wood milling machine > wood chipper/wood chipping machine to crush and mill big wood into powder of 80--120 mesh
wood chipper/wood chipping machine to crush and mill big wood into powder of 80--120 mesh
- 3 Set / Sets per Month
- Qingdao
- T/T L/C D/P D/A Credit Card PayPal
- natural fiber and wood block pilverizer / wood miller production line
- wood powder making milling machine
- natural fiber and wood block wood pilverizer plant
- complete rice milling machine wood powder making machine
- wood milling machine for rice straw wheat husk saw dust / wpc machine
- Plastic Lumber Recycling Machine/ Wood Powder Miller
Product Details
Condition: | New | Application: | Other, wood powder | Plastic Processed: | PVC |
Screw Design: | Double-screw | Automatic Grade: | full automatic | Place of Origin: | Shandong, China |
Brand Name: | HG wood chipping machine | Model Number: | JFS60/50 wood chipping machine | Voltage: | according to your need |
Power(W): | 50KW | Dimension(L*W*H): | 50X10X5m | Weight: | 20 ton |
Certification: | CE ISO, ISO CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
wood chipping machine
wood chipper/wood chipping machine to crush and mill big wood into powder of 80--120 mesh
Machine running video showroom:
1. wood feeding and cutting device: cut the big wood into wood blcok.
cutting power | 30kw |
feeding power | 2.2kw |
feeding mouth size | 200*180mm |
rotating speed | 600rpm |
cutting size | 5mm |
feeding type | conveyor belt |
Output capacity | 5tons /h |
2. crusher: crush the wood block into sawdust
Usage | Making wood block or straws into sawdust |
Power | 55kw |
Feeding mouth | 500mm length*250mm height |
With drying device | Natural drying |
3.drying machine: drying and sending the wood sawdust
4. wood pulverizer: pulverizer the wood sawdust into wood powder
Feeding type | Feed from the top |
Transmission type | Shaft joint, direct connection |
Motor rotating speed | 2970r/min |
Filtration system | With screen in the machine |
Power | 45kw |
Capacity | 350-450kg/h |
4. dust clean device: clean the dust in the wood powder
Feeding type | Blowing |
Suction blowing power | 7.5kw |
Quantity of bags | 9 bags |

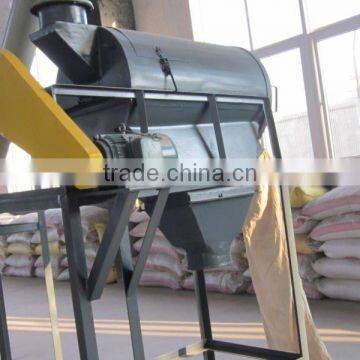

5. screen grader: loading and packing the wood powder
The rotating diameter of brusher | 420mm |
Feeding type | Spiral feeding |
Rotating speed of main spindle | 500r/min |
Feeding Power | 2.2kw |
Hole diameter of screen | 0.5mm |
Discharge mouth | Two, one for qualified powder, another for unqualified powder |
Filtration system | With rotating screen inside |
Email: salerjessica(at)
Skype: jessica.extruder
mobile: 008613969891023
whatsapp/viber/wechat: 008613969891023
QQ: 272164669
welcome visit sample machine, thank you !
