Specifications
wood milling machine for rice straw wheat husk saw dust / wpc machine1.high output with reasonable price
2 .machines in stoc

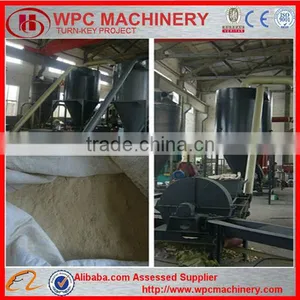

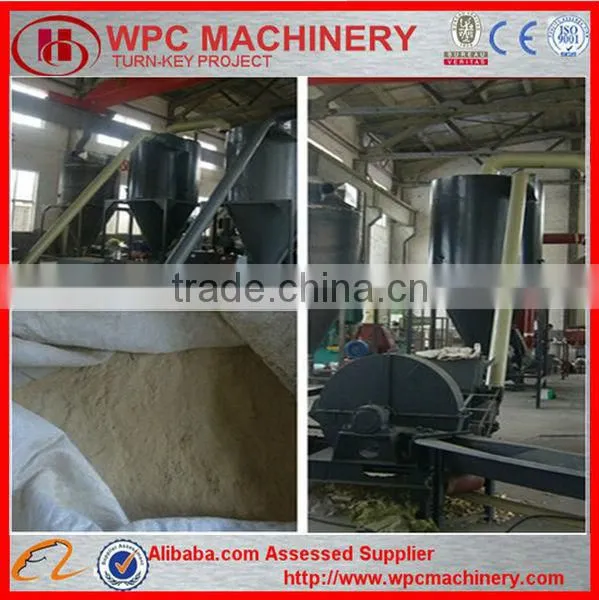

wood milling machine for rice straw wheat husk saw dust / wpc machine
Wood Miller
Wood milling machine sections:
| Item | Description |
| Crusher(coarse milling machine) SWP360 | 55KW; 400KG/H crushing capacity |
| Drying Silo | |
| Water Drop Fine Grinding Machine | motor:45kw; 2970rpm |
| Dust Blowing Machine | motor:7.5kw; 2800rpm |
| Powder Filling Machine | motor: 2.2kw; 1440rpm |
| Price | USD 25000, FOB QINGDAO,CHINA T/T |
Adopting the new domestic technique and production process, the milling machine is composed of coarse crushing device, fine crushing device and fans.
The machine body with two layes adopts water cooling and a new material for sound-proof and heat emission in the inner chamber, so the machine works in low noise and non-libration.
With the features of fine appearance, durable performance, and high output that is 50% higher than traditional one,this kind of milling machine is the leading breaking plant in china at present.
Main technique parameters
Model |
JFS-56-36 |
JFS-56-40 |
JFS-56-50 |
JFS-60-50 |
JFS-60-60 |
JFS-120-43 |
material |
wasted material |
wasted material |
||||
water percentage of raw material |
≤10% |
≤10% |
≤10% |
≤10% |
≤10% |
≤10% |
fineness of end product |
over 20 |
(40-120) |
||||
output |
200-300kg/h |
250-350kg/h |
300-450kg/h |
300-500kg/h |
450-600kg/h |
400-500kg/h |
total power |
19.5kw |
37kw |
55kw |
75kw |
90kw |
110kw |
total area of machinery |
40m2 |
50m2 |
70m2 |
82m2 |
95m2 |
105m2 |
1, coarse milling machine
2, Drying Silo
3, Water Drop Fine Grinding Machine
4, Dust Blowing Machine
5, Powder Filling machine.
6, Powder
1.We will provide the Feasibility Analysis Report for the wood-plastic project.
2.We will provide the model selection and technical parameter for wood-plastic machinery.
3.We will provide the design for the plant and electric power accounting for the facilities.
4.We will provide the design for wood-plastic formula according to the product requlrements.
5.We will provide the technology of wood-plastic product surface treatment .
6.We will provide technique training for operator.
7.We will provide solution for the practical problem during the production.
8.We will install and test the machine for free.
9.We will provide turnkey project to customers.
Video Links for WPC Extrusion Machine Running on Youtube
| 1 wood fiber wood milling machine line sally | http://youtu.be/S58t3M46GG8 |
| 1 wood pulverizer , wood powder making machine | http://youtu.be/XOavWl2cALM |
| 3 CO-extruding WPC PVC Crust Board Machine | http://youtu.be/fGAli5WNaSA |
| 3 WPC Board Extrusion Line 800mm length door board 4-5mm thickness | http://youtu.be/Q-kCZdedmpE |
| 3 PVC wood composite frame making process | http://youtu.be/bRoQkdrNJKc |
| 4 WPC granulating machine | http://youtu.be/9uYPR0gpPg0 |
| 4 WPC granules making machine/ wood plastic pelletizing machine line | http://youtu.be/lVywuSYo6Lk |
| 5 PE/PP WPC profile extrusion line running | http://youtu.be/cntpmCAVIBE |
| 5 PEPP WPC profile extrusion line | http://youtu.be/U_WTZqZnUhM |
| 5 PVC WPC extrusion line complete running video | http://youtu.be/ZADDDg4QvEE |
| 5 PVC WPC extrusion line complete running video | http://youtu.be/ZADDDg4QvEE |
| 5 PVC WPC machine to Canada | http://youtu.be/aMXehjImJbQ |
| 5 pvc wpc wall panel extrusion line | http://youtu.be/kP3j9LtrCPU |
| 5 SJMS 65/132 PE WPC decking machinery | http://youtu.be/oOwFGQcz51I |
| 6 embossing machine | http://youtu.be/J___IR7h4LE |
| 6 HEGU WPC SANDING MACHINE | http://youtu.be/zYHMP0Hb724 |
| 6 sanding machine | http://youtu.be/kr_leFRx5sU |
| 6 WPC decking napping machine | http://youtu.be/mzAiIkJZInM |
| 7 water chiller machine running video | http://youtu.be/TCySGPEuqZ0 |
For more WPC PP/PE/PVC wood plastic extrusion machine running video or other information, please contact me by email(sally#) or skype(s88sally) or call me(86-183-6623-6672). I will always give the earlist reply to you, Thanks!
