Specifications
PVC WOOD Mixing Machine PVC WPC Powder Making Machine1, machines in stock
2, CE ISO9001
3, HIGH capacity
PVC WOOD Mixing Machine PVC WPC Powder Making Machine

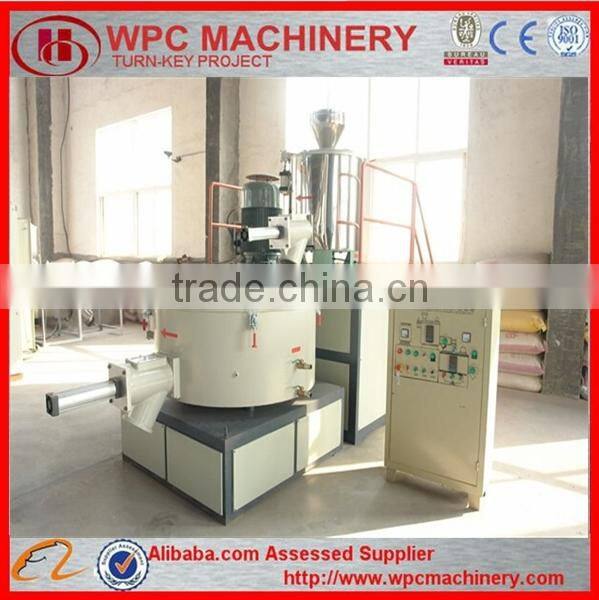

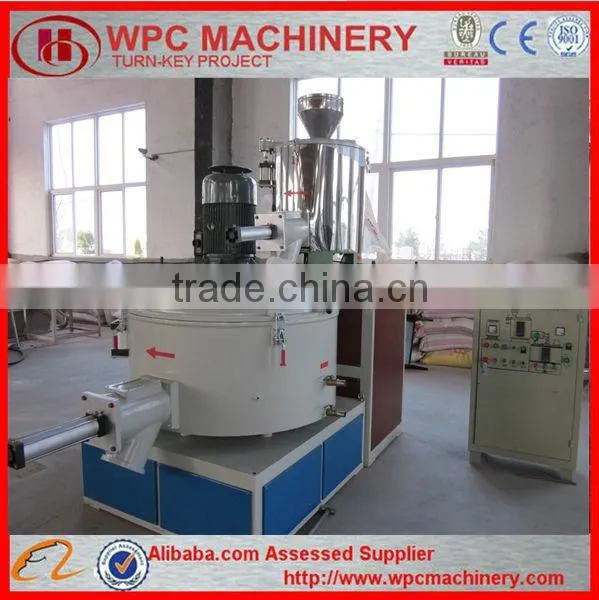

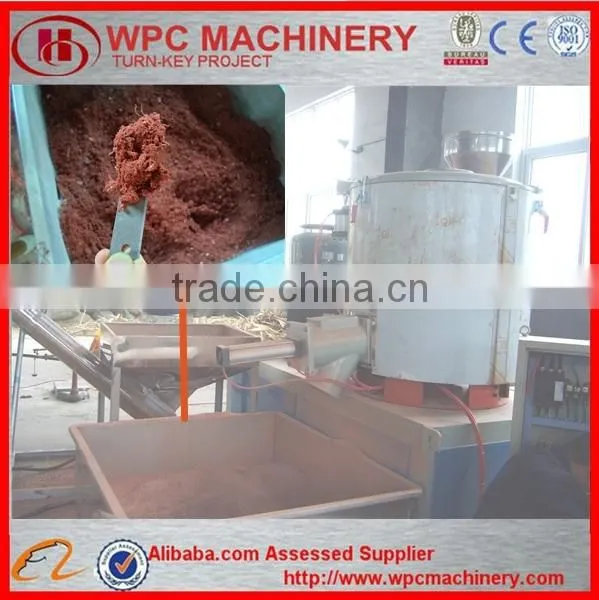

The mixing machine including following sections:
1, heating mixer
2, cooling mixer
3, small ladder
The material after heating mixing would turn into cooling mixer automatically, then the air would be exhausted and the material wouldn’t be blocking.
Parameter for wood plastic mixing machine:
| Total Volum | 500/1000 litres |
| Valid volum | 375/650 litres |
| Stir Speed | heating mixing blade 3 pieces; blade material: stainless steel |
| Rotary speed of heating mixing blade | heating mixing: 500/1000 rpm cooling mixing: 96 rpm |
| Heating mode | electricity / Self-friction automatic friction or electric heating |
| Cooling Mode | Water cooling |
| Mixing time | 6-10 mins. |
| Cooling Time | 10-15 mins. |
| Motor | Variable level multispeed three-phase asychronous motor |
| Motor parameters | 56/76/15 kw |
| Water Consumption | 6.9 t/h |
| Production Run | 700-900 kg/h |
| Discharging Mode | Pneumatic |
| Overall dimension | 4725*3000*4050 mm |
| Net Weight | 5800 kgs |

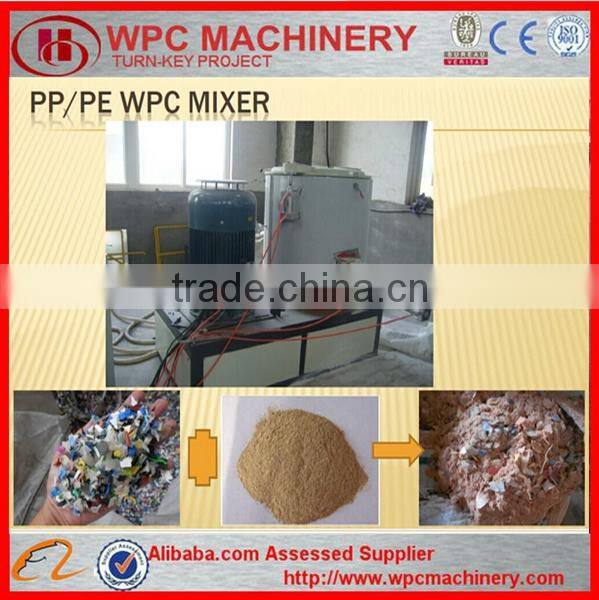

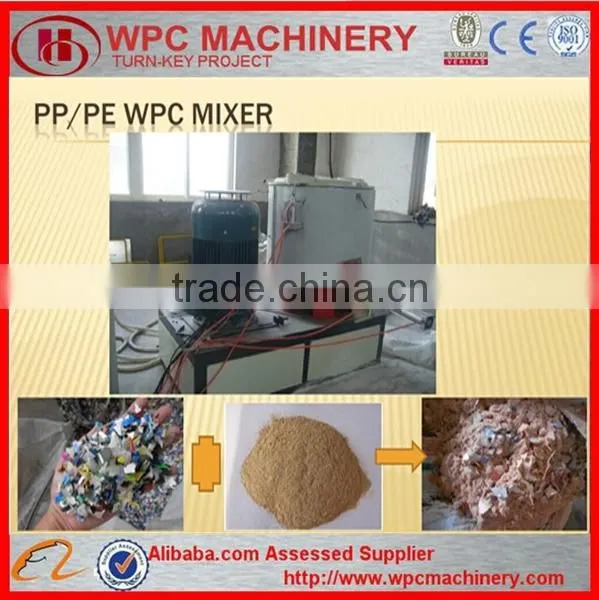

Raw PVC + Wood Powder +Additives

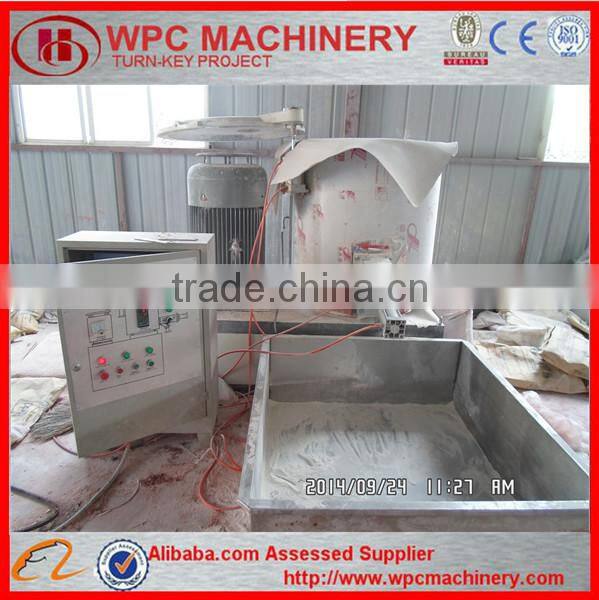

Mixing Machine

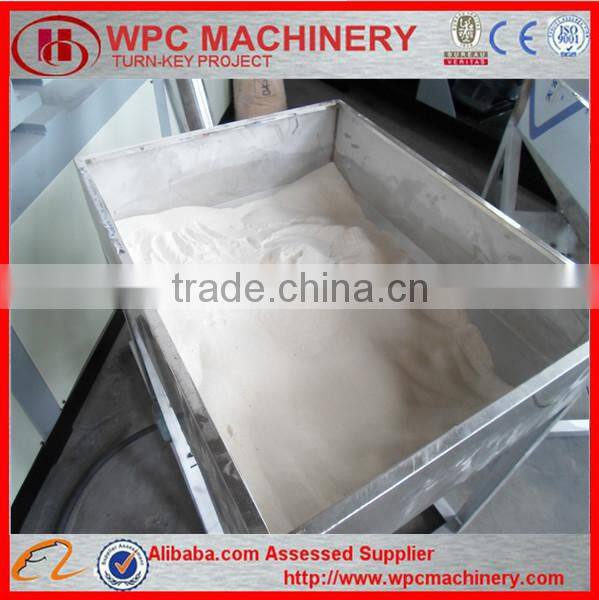

Mixed Wood & PVC powder
WOOD PLASTIC MIXING MACHINE IS THE AUXILIARY MACHINE FOR WPC extrusion line:
Combine the advantages of wood with the processability of plastics, WPC products can be sawn, nailed, screwed and worked like wood, also extruded and moulded like plastics; they offer greater durability and moisture resistance than softwood. They can also replace exotic tropical hardwoods.
we have rich experience in making wpc machine, our successful wpc projects as following:
1, WPC turnkey project in Romania, it is the first WPC manufacturer in Romania
2, WPC turnkey project for Australia
3, WPC turnkey project for Uzbekistan, it is the first WPC manufacturer in Uzbekistan
4, WPC turnkey project in Ecuador
5, WPC turnkey project in Lebanon
6, WPC turnkey project in Mexico
7, WPC turnkey project in Malaysia
8. WPC turnkey project in Indian
9. WPC turnkey project in China
10, WPC turnkey project in Algeria
11, WPC turnkey project in Russian
Description for WPC machine:
Raw material | PP/PE/PVC + waste wood/rice husk |
Final product | Decking, garden railing, garden furniture, pallet, outdoor wall cladding, pergola.... window and doors, ceiling panel, wall siding panel, flooring, furniture board |
Process: | Milling →Mixing → Granulating → Extruding → Mold → Product → Calibrating → Hauling off→ Cutting off→ Embossing or polishing→ Final product |
Features for wpc machine:
1) This technology is suitable to produce WPC products at high value with variety of plastic and nature fiber, and the material is 90% of waste plastic and waste natural fiber. 2) With scientific and reasonable technology, the machine has high efficiency and runs stably 3) The parallel twin screw extruder is used to mix the wood and plastic, and get good homogeneous melt. 4) This is one step WPC extrusion technology, which saves energy 5) This production line can produce wpc products of different specifications only to change mold. 6) Imported PLC automatic control.
|
Machines needed for wpc complete line:

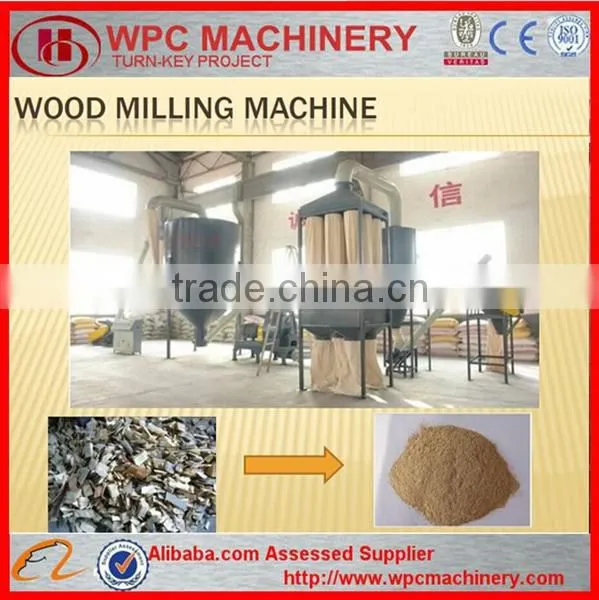

1,wood powder milling machine
|
2,mixing machine
|

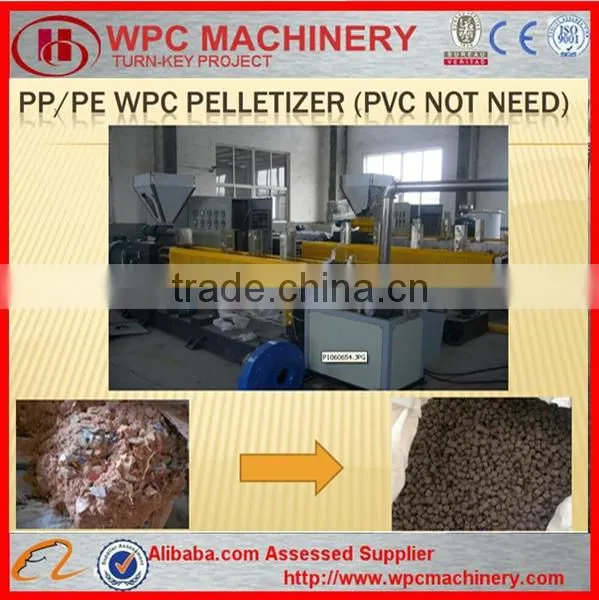

3,Granulating machine
|

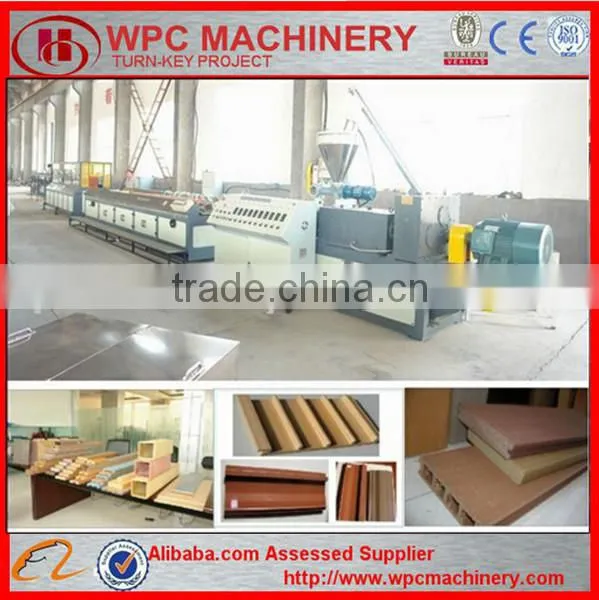

4,Extruding machine
|
We have rich experience in making wpc machine, we have installed successful WPC turnkey project in Many countries, such as Romania, Australia, Uzbekistan, Indian, Malaysia, Ecuador, Lebanon, Russian, Turkey, Saudi arabia, China...
HEGU WPC MACHINERY would like to introduce and cooperate with more strong and potential customers. We would like to company with you, developing wih you and support you! All of us go together to make another good record for the WOOD PLASTIC EXTRUSION industry!
Guarantee:
1 year (12 months) counting from the machinery installed and tested by our engineer, free change for the broken spare part for free during guarantee period.
Install and test:
Professional engineer will be sent to your company to install, test and teach operator at your factory
Operation book and video:
Operational manual book and video will be sent together with custom clearance documents
1. We will provide the Feasibility Analysis Report for the wood-plastic project.
2. We will provide the model selection and technical parameter for wood-plastic machinery.
3. We will provide the design for the plant and electric power accounting for the facilities.
4. We will provide the design for wood-plastic formular according to the product requirements.
5. We will provide the technology of wood-plastic product surface treatment.
6. We will provide the technique training for operator.
7. We will provide solution for the practical problem during the production.
8. We will install and test the machine for free.
9. We will provide the turnkey project to customers.
Sally Song
Mobile: 0086-18366236672
Skype: s88sally
Email: sally(at)
