Specifications
WPC wood plastic mixer machine/ plastic wood powder mixing machine1, machines in stock
2, CE ISO9001
3, HIGH capacity
WPC wood plastic mixer machine/ plastic wood powder mixing machine/ extrusion line mixing machine

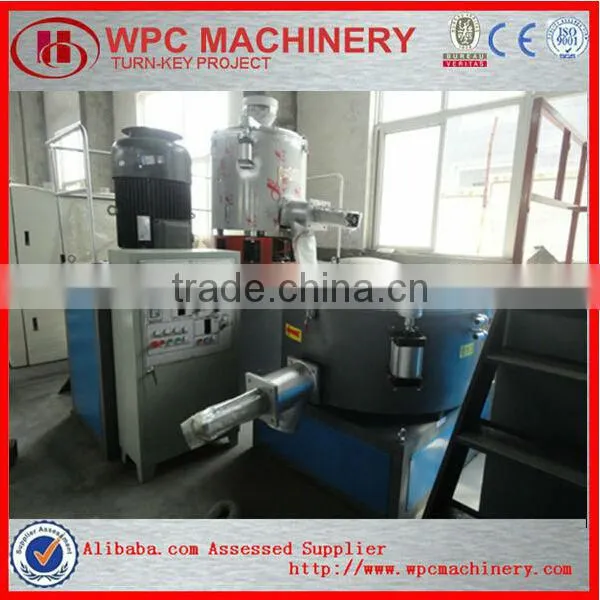

The mixing machine including following sections:
1, heating mixer
2, cooling mixer
3, small ladder
The material after heating mixing would turn into cooling mixer automatically, then the air would be exhausted and the material wouldn’t be blocking.
Parameter for wood plastic mixing machine:
| Total Volum | 500/1000 litres |
| Valid volum | 375/650 litres |
| Stir Speed | heating mixing blade 3 pieces; blade material: stainless steel |
| Rotary speed of heating mixing blade | heating mixing: 500/1000 rpm cooling mixing: 96 rpm |
| Heating mode | electricity / Self-friction automatic friction or electric heating |
| Cooling Mode | Water cooling |
| Mixing time | 6-10 mins. |
| Cooling Time | 10-15 mins. |
| Motor | Variable level multispeed three-phase asychronous motor |
| Motor parameters | 56/76/15 kw |
| Water Consumption | 6.9 t/h |
| Production Run | 700-900 kg/h |
| Discharging Mode | Pneumatic |
| Overall dimension | 4725*3000*4050 mm |
| Net Weight | 5800 kgs |
WOOD PLASTIC MIXING MACHINE IS THE AUXILIARY MACHINE FOR WPC extrusion line:
Combine the advantages of wood with the processability of plastics, WPC products can be sawn, nailed, screwed and worked like wood, also extruded and moulded like plastics; they offer greater durability and moisture resistance than softwood. They can also replace exotic tropical hardwoods.
we have rich experience in making wpc machine, our successful wpc projects as following:
1, WPC turnkey project in Romania, it is the first WPC manufacturer in Romania
2, WPC turnkey project for Australia
3, WPC turnkey project for Uzbekistan, it is the first WPC manufacturer in Uzbekistan
4, WPC turnkey project in Ecuador
5, WPC turnkey project in Lebanon
6, WPC turnkey project in Mexico
7, WPC turnkey project in Malaysia
8. WPC turnkey project in Indian
9. WPC turnkey project in China
10, WPC turnkey project in Algeria
11, WPC turnkey project in Russian
Description for WPC machine:
Raw material | PP/PE/PVC + waste wood/rice husk |
Final product | Decking, garden railing, garden furniture, pallet, outdoor wall cladding, pergola.... window and doors, ceiling panel, wall siding panel, flooring, furniture board |
Process: | Milling →Mixing → Granulating → Extruding → Mold → Product → Calibrating → Hauling off→ Cutting off→ Embossing or polishing→ Final product |
Features for wpc machine:
1) This technology is suitable to produce WPC products at high value with variety of plastic and nature fiber, and the material is 90% of waste plastic and waste natural fiber. 2) With scientific and reasonable technology, the machine has high efficiency and runs stably 3) The parallel twin screw extruder is used to mix the wood and plastic, and get good homogeneous melt. 4) This is one step WPC extrusion technology, which saves energy 5) This production line can produce wpc products of different specifications only to change mold. 6) Imported PLC automatic control.
|
Machines needed for wpc complete line:
1,wood powder milling machine
|
2,mixing machine
|

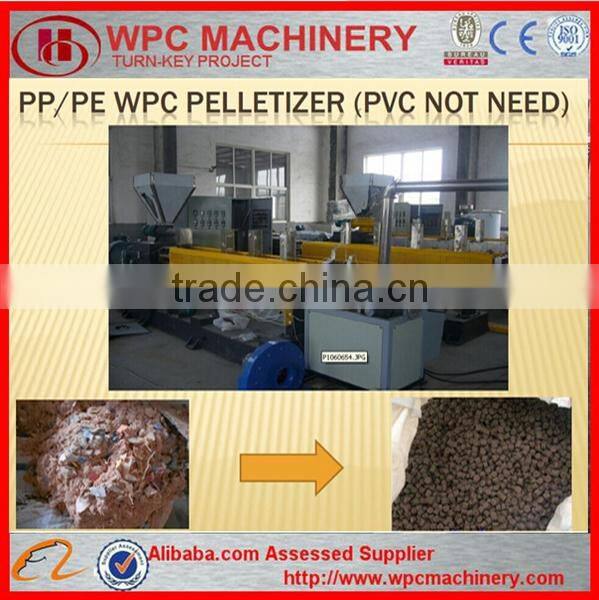

3,Granulating machine
|
4,Extruding machine
|
