CE ISO9001! SRL.Z 500/1000 Hot-Cold Mixing Machine/powder Mixing Machine

Qingdao Hegu Wood-Plastic Machinery Co., Ltd.
CE ISO9001! SRL.Z 500/1000 Hot-Cold Mixing Machine/powder Mixing Machine thumbnail-1
CE ISO9001! SRL.Z 500/1000 Hot-Cold Mixing Machine/powder Mixing Machine thumbnail-2
CE ISO9001! SRL.Z 500/1000 Hot-Cold Mixing Machine/powder Mixing Machine thumbnail-3
CE ISO9001! SRL.Z 500/1000 Hot-Cold Mixing Machine/powder Mixing Machine thumbnail-4
CE ISO9001! SRL.Z 500/1000 Hot-Cold Mixing Machine/powder Mixing Machine thumbnail-5
CE ISO9001! SRL.Z 500/1000 Hot-Cold Mixing Machine/powder Mixing Machine thumbnail-6
CE ISO9001! SRL.Z 500/1000 Hot-Cold Mixing Machine/powder Mixing Machine photo-1
CE ISO9001! SRL.Z 500/1000 Hot-Cold Mixing Machine/powder Mixing Machine photo-2
CE ISO9001! SRL.Z 500/1000 Hot-Cold Mixing Machine/powder Mixing Machine photo-3
CE ISO9001! SRL.Z 500/1000 Hot-Cold Mixing Machine/powder Mixing Machine photo-4
CE ISO9001! SRL.Z 500/1000 Hot-Cold Mixing Machine/powder Mixing Machine photo-5
CE ISO9001! SRL.Z 500/1000 Hot-Cold Mixing Machine/powder Mixing Machine photo-6
US$ 10,000 - 15,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Plastic Raw Mixing
Automatic Grade:
Automatic
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO CHINA
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Plastic Raw Mixing
Automatic Grade Automatic
Production Capacity 500liter
Place of Origin Shandong, China
Brand Name HEGU
Model Number SRL-Z500/1000
Voltage 380v or as local
Power(W) 56/76/15 kw
Dimension(L*W*H) 5*3*4 m
Weight 5000-6000kgs
Certification CE/ISO9001
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

CE ISO9001! SRL.Z 500/1000 Hot-Cold Mixing Machine/powder mixing Machine

Developed on the basis of advanced technique, the SRL-Z series mixer is mainly used for drying, dewatering and mixing for the wood plastic products. The spindle sealing equipment of good sealing and non-leakage has been awarded the national patent. The heating mixer has the heating function of self-friction and electricity.The pot cover adopts double-sealing layer.
The cooling mixer adopts arched pot cover and specically-designed blade, which passes the test of static balance and dynamic balance.Combined with the heating mixing technique and cooling mixing technique, the SRL-Z mixer is the ideal processing equipment in WPC production.The material after heating mixing would turn into cooling mixer automatically, then the air would be exhausted and the material wouldn’t be blocking.

Main Technical Parameter for CE ISO9001! SRL.Z 500/1000 Hot-Cold Mixing Machine/powder mixing Machine
Total Volum
500/1000 litres
Valid volum
375/650 litres
Stir Speed
heating mixing blade 3 pieces; blade material: stainless steel
Rotary speed of heating mixing blade
heating mixing: 500/1000 rpm; cooling mixing: 96 rpm
Heating mode
electricity / Self-friction; automatic friction or electric heating
Cooling Mode
Water cooling
Mixing time
6-10 mins.
Cooling Time
10-15 mins.
Motor
Variable level multispeed three-phase asychronous motor
Motor parameters
56/76/15 kw
Water Consumption
6.9 t/h
Production Run
700-900 kg/h
Discharging Mode
Pneumatic
Overall dimension
4725*3000*4050 mm
Net Weight
5800 kgs
Detailed Images

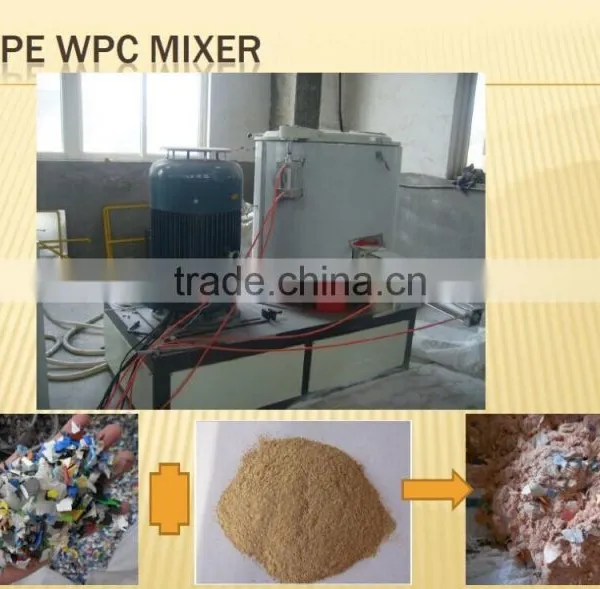

Raw PVC + Wood Powder +Additives

Mixing Machine.

Mixed Wood & PVC powder

Our machine running videos on YOUTUBE:
Plastic Machines Running Videos playlist:

/playlist?list=PLB8qHiNACRc_sDBTvoUFFU-NQUzYQKLUL&spfreload=10

Wood Plastic Composite WPC Machines Running Videos playlist:

/playlist?list=PLB8qHiNACRc8QmzWtwxvGW8NJPpunEPne

Packing & Delivery
Packaging
Size
4725*3000*4050 mm
Weight
6 T



Packaging Details
CE ISO9001! SRL.Z 500/1000 Hot-Cold Mixing Machine/powder mixing Machine
1 Pallet: the material of pallet is stainless steel pipe
2 the surface of each part of machinery covered film together with one set of packing list in English
3 wooden crate, under fumigation treatment, together with one set of packing list in English partial shipment allowed container shipment allowed before delivery.
4 we will send the dimension & weight of machinery to customer to help them choose suitable container.
5 customized
