SRL-Z series vertical wood plastic powder mixing machine

FOB Price

USD $10,000 - $15,000 / Set

1 Set(Min.Order)

Supply Ability 10 Set / Sets per Month
Port QINGDAO CHINA
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	Plastic Raw Mixing
Automatic Grade	Automatic	Production Capacity	500liter
Place of Origin	Shandong, China	Brand Name	HEGU
Model Number	SRL-Z500/1000	Voltage	380v or as local
Power(W)	56/76/15 kw	Dimension(LWH)	534 m
Weight	5000-6000kgs	Certification	CE/ISO9001
Warranty	1 Year	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

SRL-Z series vertical wood plastic powder mixing machine

Developed on the basis of advanced technique, the SRL-Z series mixer is mainly used for drying, dewatering and mixing for the wood plastic products. The spindle sealing equipment of good sealing and non-leakage has been awarded the national patent. The heating mixer has the heating function of self-friction and electricity.The pot cover adopts double-sealing layer.
The cooling mixer adopts arched pot cover and specically-designed blade, which passes the test of static balance and dynamic balance.Combined with the heating mixing technique and cooling mixing technique, the SRL-Z mixer is the ideal processing equipment in WPC production.The material after heating mixing would turn into cooling mixer automatically, then the air would be exhausted and the material wouldn’t be blocking.

Main Technical Parameter for SRL-Z series vertical wood plastic powder mixing machine
Total Volum	500/1000 litres
Valid volum	375/650 litres
Stir Speed	heating mixing blade 3 pieces; blade material: stainless steel
Rotary speed of heating mixing blade	heating mixing: 500/1000 rpm; cooling mixing: 96 rpm
Heating mode	electricity / Self-friction; automatic friction or electric heating
Cooling Mode	Water cooling
Mixing time	6-10 mins.
Cooling Time	10-15 mins.
Motor	Variable level multispeed three-phase asychronous motor
Motor parameters	56/76/15 kw
Water Consumption	6.9 t/h
Production Run	700-900 kg/h
Discharging Mode	Pneumatic
Overall dimension	472530004050 mm
Net Weight	5800 kgs

Detailed Images

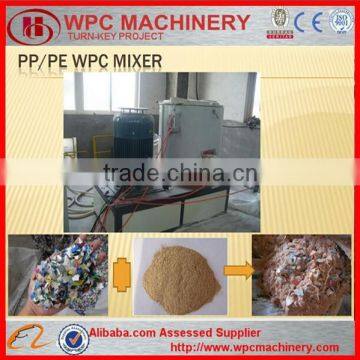

Raw PVC + Wood Powder +Additives

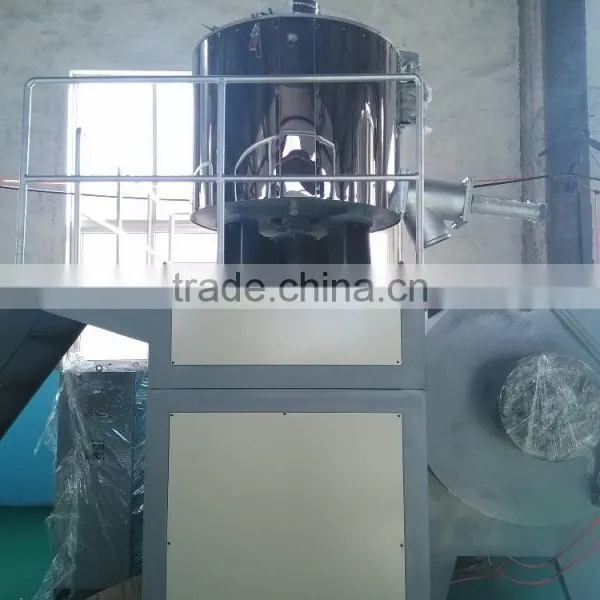

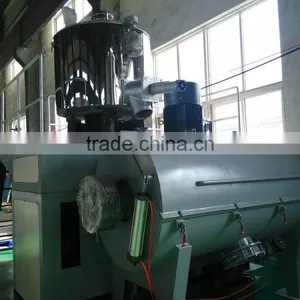

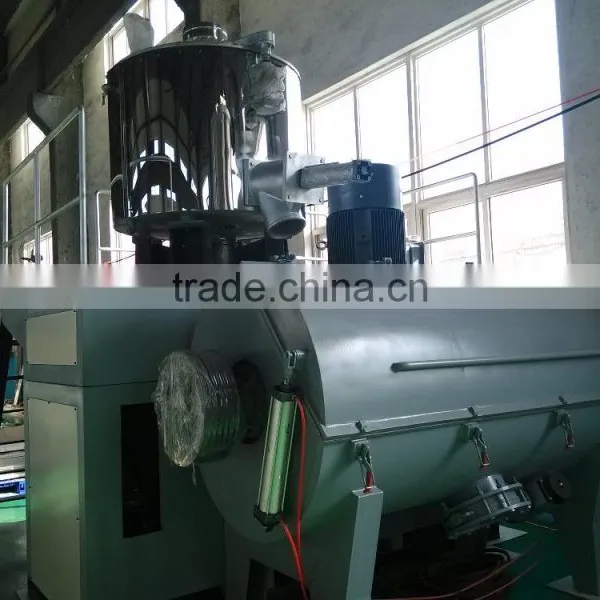

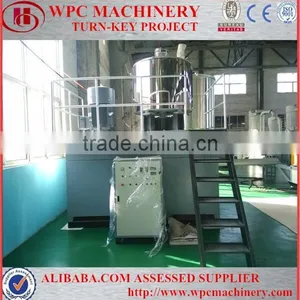

Mixing Machine.

Mixed Wood & PVC powder

Our machine running videos on YOUTUBE

WPC profile extrusion line/decking/flooring making machine https://youtu.be/bGDxpMdImzk
WPC door board extrusion line https://youtu.be/OIWR5qPoZfA
WPC door profile extrusion line/making machine https://youtu.be/LZsoGYTYVkM
PE WPC shaped board making machine https://youtu.be/kt2MiJlp0XU
PVC WPC foam board making machine https://youtu.be/bIPVjja2fKo
HIPS, GPPS board extrusion production line https://youtu.be/QZOByd9t7ac
PVC WPC granulating machine https://youtu.be/vozxqkUFxSg
Wood cutting machine-for WPC products making, https://youtu.be/MnorN4eNRo4
WPC milling machine, make PVC powder for recycled usage https://youtu.be/DAqen3B1ZGk
Waste plastic cleaning line, waste plastic recycled https://youtu.be/_ZyD3XOd97U

Packing & Delivery

Packaging
Size	472530004050 mm
Weight	6 T
Packaging Details	SRL-Z series vertical wood plastic powder mixing machine 1 Pallet: the material of pallet is stainless steel pipe 2 the surface of each part of machinery covered film together with one set of packing list in English 3 wooden crate, under fumigation treatment, together with one set of packing list in English partial shipment allowed container shipment allowed before delivery. 4 we will send the dimension & weight of machinery to customer to help them choose suitable container. 5 customized
