Specifications
1.dryer used for snack food,fruit,vegetable2.electricity,gas, diesel,LPG as power
3.different design for different demands
Different dryer used in different demands
DKX-I(3-layer electricity dryer)
DKX-II(3-Layer exlectricity dryer-longer)
WFX-III(Recycling dryer)
Technical Parameter of electricity dryer
Model | DKX | DKX-II | WHX-III |
Capacity | 100~150kg/h | 100~200kg/h | 200~350kg/h |
Installed power | 22kw | 37kw | 45.37kw |
Heat power | 21kw | 36kw | 42kw |
Heat temperature | ~200°C | ~200°C | ~200°C |
Drying time | 4~8min | 5~10min | 8~17min |
Dimension | 4800×1150×1750mm | 6700×1150×1750mm | 7200×1400×2500mm |
SKX(3-Layer Diesel dryer)
SKX-II(3-Layer diesel dryer -extended)

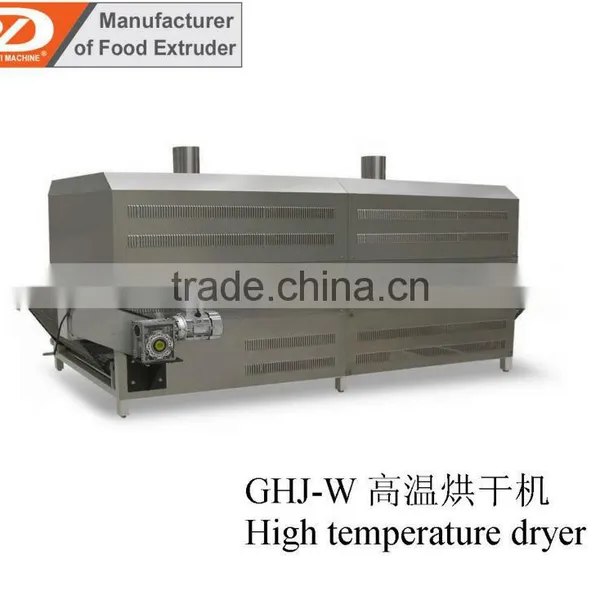

GHJ-W(High temperature dryer)
Static dryer
Model | SHX | SHX-II | WHX | WFX-II | GHJ-W | XR |
Capacity | 200~250kg/h | 200~250kg/h | 200~350kg/h | 200~400kg/once | Adjustable | 100~120kg/once |
Total power | 4.47kw | 5.1kw | 5.57kw | 5.03kw | 0.55kw | 0.55kw |
Burner | 1.2×105kcal | 1.2×105kcal | 1.5×105kcal | 1.2×105kcal | 24× | 8×104kcal |
Diesel consumption | 6~8kg/h | 6~8kg/h | 7~10kg/h | 5~7kg/h | 6.5m3/h(LPG) | 3~5kg/h |
Heat temperature | ~250°C | ~250°C | ~250°C | ~150°C | ~800°C | ~100°C |
Drying time | 4~14min | 5~15 min | 7~25 min | Set respectively | 3~9 min | Set respectively |
Dimension (mm) | 6500×1500×2500 | 9000×1500×2500 | 7200×2100×2600 | 7500×2400×2000 | 3500×1500 | 400×1200×1000 |
Also we can design the dryer upon on customer request.
Jinan Dayi Extrusion Machinery Co., Ltd. Is the advanced professional manufacturer of Extrusion Food Machinery in China.
Our single-screw & double-screw extrusion machines have been used to produce a lot of snacks, such as, extrusion leisure snacks, breakfast cereal food, pet food, aquatic feeds, textured proteins, vegetarian meat, etc;
We will serve the best for you, both quality and technology. Contact me~
