Salt Centrifuge Auger Filling Conveyor for Salt Production Line

Salt Centrifuge Auger Filling Conveyor for Salt Production Line photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Centrifuge, Horizontal, inclined, vertical
Product Type:
Other, Auger Filling Conveyor for Salt Production Line
Payment & Shipping
Payment Methods:
Port of Shipment:
Nanjing Shanghai Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Other, Centrifuge, Horizontal, inclined, vertical
Product Type Other, Auger Filling Conveyor for Salt Production Line
Place of Origin Jiangsu, China
Brand Name Kingreat, Kingreat
Model Number LS
Voltage 220, 380, 440, 460V
Certification ISO
Warranty 12 months
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Auger filling conveyor, commonly called auger,is widely used transportation equipments in salt, chemical, feedstuff, grain, oil, and construction industries. It is suitable for horizontal, inclined, vertical transporting of granule, mealiness and small lump material with various transportation distances according to user requirements.It has simple structure,convenient maintaince and better seal, safe operation and easy loading and unloading at midway. Middle hanging shaft bears take rolling and gliding structures with dustproof seals.

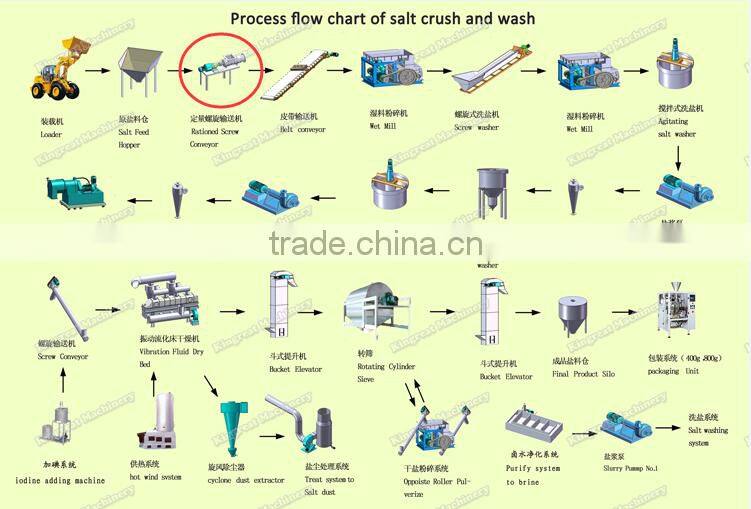

Production line of salt: https://youtu.be/jq9V2uCQ_xk

2 stage pusher centrifuge on site: https://youtu.be/0jrWDmUXSg0
Technical Parameters
Model
LS100
LS120
LS140
LS160
LS200
LS250
LS300
LS400
Screw body diameter(mm)
88
108
140
163
187
240
290
360
Outside shell diameter(mm)
φ108
φ133
φ160
φ194
φ219
φ273
φ325
φ402
Permitted working angle(a)
0-60°
0-60°
0-60°
0-60°
0-60°
0-60°
0-60°
0-60°
Max transporation length(mm)
8
8
10
12
13
16
18
22
Capacity(t/h)
2-5
3-8
3-10
3-12
5-15
8-25
15-40
30-80
Motor model
Y90S-4
Y100L1-4
Y100L2-4
Y132S-4
Y132M-4
Y160M-4
Y180M-4
Y180L-4
Motor power(Kw)
1.1
2.2
3
5.5
7.5
11
15/18.5
22
Motor model
Y100L1-4
Y100L2-4
L112M-4
Y132M-4
Y160M-4
Y160L-4/ Y180M-4
Y180M-4/ Y180L-4
YH200L-4
Motor power(Kw)
2.2
3
4
7.5
11
15/18.5
18.5/22
30
Detailed Images
Packing & Delivery
Our Service

1. 12 months guarantee period from machine arriving date.
2. Abundant spare parts in stock are available to provide.
3. Our technicians could be dispatched for overseas service.
4. 7*24 hours technical consultation.
5. Your workers could get trained both in our factory and yours.
6. Routine tracing till the machine work properly will be done timely.
7. We will remind you to do the normal maintenance.
8. Your suggestions or any comments & reflection would be treated in priority.
9. Marketing team will visit you during our visit in your country if you require.

Our Company

Nanjing Kingreat Machinery Co., Ltd is a subsidiary of China State Shipbuilding Corporation (CSSC Group), which was established in 1958. Covering an area of 650000m2, there are 2300 staff and employee in our company, 281 of them are technicians and engineers. It has obtained the approvals and certifications of both ISO9001:2008 quality control system and the military product quality certificate, BV and CE certificates. Some of our machines gained the new technology invent patent.

We are one of the world's leading manufacturers of disc centrifuges, decanters, separation systems and marine equipment. We focus on food production, environmental protection, energy recycling, chemistry and marine. Now there are over 150 series of decanter centrifuges and disc separators used both home and abroad.
