Salt Making Production Line Salt Pusher Centrifuge

Salt Making Production Line Salt Pusher Centrifuge photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Centrifuge, Horizontal
Product Type:
Other, Salt Pusher Centrifuge
Payment & Shipping
Payment Methods:
Port of Shipment:
Nanjing Shanghai Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Other, Centrifuge, Horizontal
Product Type Other, Salt Pusher Centrifuge
Place of Origin Jiangsu, China
Brand Name Kingreat, Kingreat
Model Number PP
Voltage 220, 380, 440, 460V
Certification ISO
Warranty 12 months
After-sales Service Provided Engineers available to service machinery overseas
Product Description

PP Series horizontal pusher centrifuge is a kind of perforated basket centrifuge, both continuous and effective. The mixture to be separated is fed through the feeding pipe and the distributor continuously and evenly into the first stage basket. Most of the mother-liquor in the feed, acted on by centrifugal force, departs through the sieves into the liquor-collecting casing where it will be discharged out of the machine. The first stage basket rotates and reciprocate, pushing the formed product cake into the second stage basket .The cake can have sufficient retardation in the centrifuge with being acted on by more centrifugal force, and therefore, the desired humidity of the cake can be guaranteed. Afterwards, the cake is continuously discharged out of the basket. In case of high purity for the solid product, the effective washing can be carried out in the centrifuge. If necessary, the washing agent and the mother-liquor can be discharged separately.

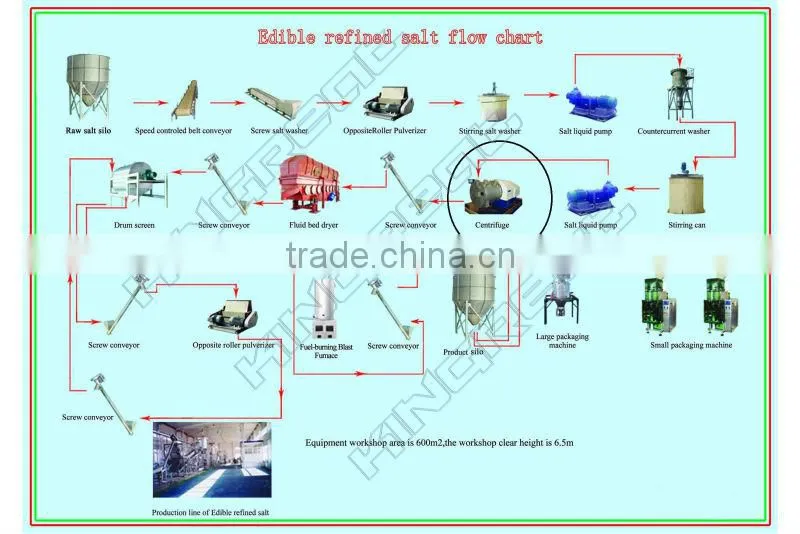

Process flow chart

Technical Parameters
Model
PP-40
PP-50
PP-60
Basket diameter (mm)
290/360
438/500
560/630
Stroke of pusher mechanism (times/min)
40-80
40-80
70-80
Machine speed (rpm)
2500
2000
1360
Operative oil pressure (Mpa)
2.5
2
8
Motor of oil pump (kw)
5.5-7.5
22
13-30
Main motor (kw)
11-15
37-45
55
Output (t/h)
5-7
12
20
Sieve slot
To be decided
Operation temp. (°C)
Below 105
Below 105
Below 105
Overall dimension (mm)
2346*1090*1006
3660*1420*2078
3127*1700*1955
Weight (kg)
2600
4400
4860

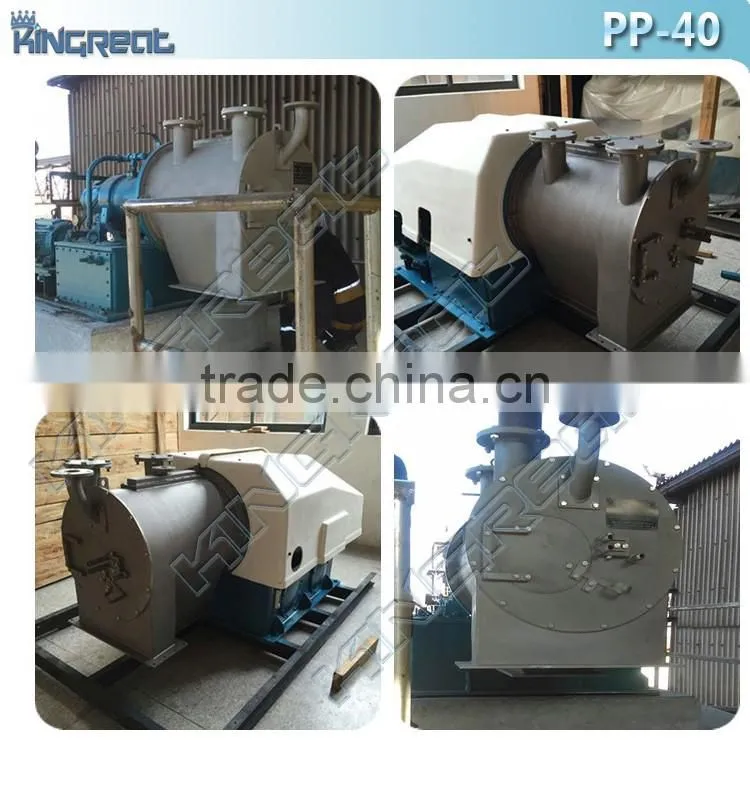

Detailed Images
Packing & Delivery
FAQ

1. How can we visit your factory?
If you come from abroad, air to Shanghai airport, then take bullet train, about 1 hour from Shanghai to Nanjing South Station; if you come from our domestic city, air or train directly to Nanjing, we will pick you up both in the airport and railway station.

2. Can we visit your end user or contact them?
Yes, users are in domestic and abroad, we can provide you the name list, you can go there or contact for more info.

3. How do you protect the quality?
Our factory is a state owned enterprise with more than 100 years experience, strict operation policy is performed, advanced processing machines guarantee the precision of all components, workers with operation license, parts get multiprocessing, transmission & electrical parts are of international famous brand. Series of test and inspection are done in the whole producing stage.

4. Will you dispatch technicians for installation and commissioning?
Yes, we can, we do lots of service, please refer to our after sales part.

5. What is your advantages compared with your competitors?
Quality and experience. We are the top centrifuge supplier in China, our designs and structures are similar to world leader Alfa Laval, Westfalia, Flottweg, etc.

6. Is your price competitive?
Our price is not the lowest in China as for high quality, but we promise, for the same quality and collocation, our price is the most favourite, for the same price, our quality is definately superior to other brand.

7. Do you have OEM serive? Do you supply the parts?
Yes, we do, as long as you provide us your drawing and detailed requirements.

8. Do you supply second hand centrifuge?
No, we only provide brand new machine.

9. Do you have agent or service center in my country?
We have some partnership in several countries as Indonesia, Brazil, USA, etc. Your are warmly welcomed to work as our agent. At this moment, we have no service center abroad, but we can provide overseas spot and online technical service in time.

10. How can we easily find out the most fit centrifuges?
We have experienced engineer team to help you make the model selection, as long as you provide us the detailed processing material characteristics.

11. What payment mode you accept?
TT, Wester Union and LC at sight.
