Automatic Discharge Barm Disc Centrifuge

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Other, Centrifuge, Vertical
Product Type	Other, Barm Disc Centrifuge	Place of Origin	Jiangsu, China
Brand Name	Kingreat	Model Number	PDSB-5000
Voltage	220,380,440,460V	Power(W)	Accoring to the model
Weight	Accoring to the model	Dimension(LWH)	Accoring to the model
Certification	ISO CE GMP	Warranty	12months
After-sales Service Provided	Engineers available to service machinery overseas

Automatic Discharge Barm Disc Centrifuge

Product Overviews

Model PDSB-5000 separator is mainly used in brewery for separation of yeast and clarification of beer.

The liquid seal technology may functionally prevent from loss of carbon dioxide and avoid mixing of air during separating

beer. The model is also used to separate similar material (e.g. Juice, beverage etc.)

The machine adopts automatic control, it has the advantages of high efficiency, low material consumption, convenient

operation and economic maintenance cost.

The clear liquid is pumped out by centripetal pump, the sludge is discharged automatically and partly.

The machine is one kind of rotary machine with high speed, After accurate dynamic balancing, it can run for long time with

low vibration, safety and security.

The design, product and acceptance are conformed to the standard of JB/T8103.2 ‘’Disc Separator Part 2: Beer disc

centrifuge’’.

Technical parameters

Model	PDSB-5000
Rated capacity (L/h)	5000
Motor power (KW)	11
Discharging type	Partial Discharge
Output pressure of clear liquid (MPa)	≤ 0.2
Net weigh (KG)	780
Overall dimension L × W × H(mm)	1240 × 980 × 1420

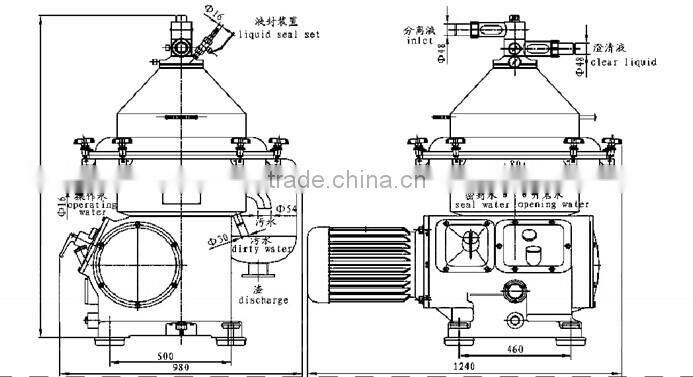

Dimension

Components & parts

Processing Equipment

Factory overview

Our Services

Our history
