Good Price Titanium Material 2 Phase Decanter Centrifuge
- 100 Set / Sets per Month
- Nanjing Shanghai Ningbo
- T/T L/C D/P D/A Credit Card PayPal
- Plastic Packaging Film Heat Seal Tester/Laboratory Heat Sealer / five points heat seal tester
- (ASTM D882) Electronic Tensile measurement
- (ASTM D882) tensile test
- Electronic Tensile Strength Testing Machine desktop tensile testing machine
- High quality cof tester (GM-4)
- GHH Multifunctional Universal Tensile Tester for peeling, bonding, sealing puncture and compression test.
Product Details
Condition: | New | Type: | Centrifuge | Product Type: | Other, Titanium Material 2 Phase Decanter Centrifuge |
Place of Origin: | Jiangsu, China | Brand Name: | Kingreat | Model Number: | PNX&PDC&PDCS |
Voltage: | 220,380,440,460V | Power(W): | according to the model | Weight: | according to the model |
Dimension(L*W*H): | according to the model | Certification: | ISO | Warranty: | 12months |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

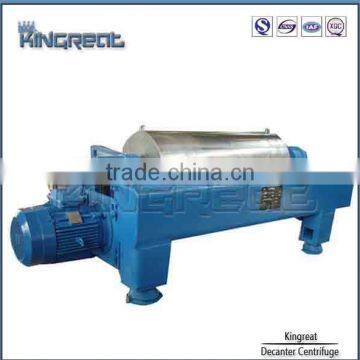

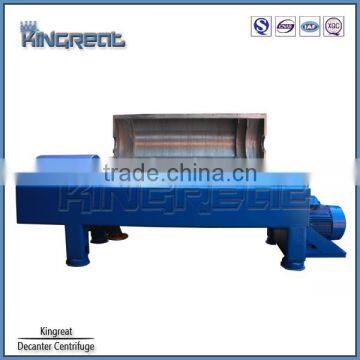

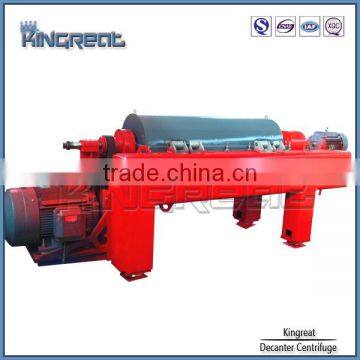

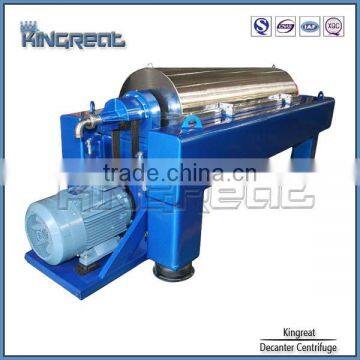

Good Price Titanium Material 2 Phase Decanter Centrifuge
Decanters with slow rotation speeds are normally based on horizontal separation technology. Decanters ensure optimum separation efficiency in the case of suspensions with a very high proportion of solids. They are also used for the extraction of constituents from liquids and for concentrating, dewatering and classifying solids.
Decanters designs:
Type: 2-phase separation, 3-phase separation
Materials: use high-quality stainless steel for all product wetted areas.
Bearings: SKF brand. A special selection and arrangement of bearings provides for long life and exceptional reliability.
Wear protection: welded hard facing or spray coating,ceramic technology.
Food: Fruit and Vegetable juices, Starch, Protein, Molasses, Stillage
Oils and Fats: Fish oil, Gelatine
Environmental protection/Recycling: Drilling mud, Industrial wastewater, Municipal wastewater
Minerals: Graphite, Kaolin, Bentonite
Two phase decanter centrifuge:
Model | Diameter (mm) | Bowl speed (rpm) | Length (mm) | G-force | Capacity (m3/h) | Main motor power (kw) | Assistant motor power (kw) | Weight (kg) | Overall size (L × W × H)(mm) |
PNX409 | 250 | 5500 | 850 | 3493 | 0.2-2 | 15 | 4 | 1020 | 2500 × 650 × 760 |
PNX-414 | 355 | 4000 | 860 | 3175 | 1~10 | 18.5 | 7.5 | 2035 | 2765 × 920 × 1060 |
PNX-416 | 355 | 4000 | 1160 | 3175 | 1~15 | 18.5 | 7.5 | 2122 | 3065 × 920 × 1060 |
PNX-418 | 355 | 4000 | 1460 | 3175 | 1~25 | 22 | 7.5 | 2222 | 3365 × 920 × 1060 |
PDC-1655 | 420 | 3000 | 1450 | 2113 | 10~30 | 55 | 15 | 4600 | 4080 ×1100 × 1420 |
PDC-17-4 | 420 | 3600 | 1680 | 3042 | 3~15 | 30 | 7.5 | 5165 | 3331 × 990 × 1066 |
PDC-18-4.4 | 450 | 3300 | 2000 | 2739 | 10~20 | 37 | 11 | 2739 | 4000 × 1120 × 1239 |
PDC-20 | 500 | 3200 | 2000 | 2860 | 5~45 | 55 | 11 | 4400 | 4489 × 1160 × 1350 |
PDC-21 | 540 | 2800 | 2000 | 2366 | 15~50 | 45 | 15 | 5290 | 4587 × 1285 × 1368 |
PDC-24 | 620 | 3200 | 2480 | 3555 | 15~60 | Hydraulic station 90 | 8000 | 4650 × 2010× 1200 | |
PDC-28HH | 720 | 2200 | 2400 | 1975 | 15-80 | 110 | 37 | 9393 | 4800 ×1350 × 1500 |
Three phase decanter centrifuge:
Model | Diameter (mm) | Bowl speed (rpm)
| Length (mm) | G-force | Capacity (m3/h) | Main motor power (kw) | Assistant motor power (kw) | Weight (kg) | Overall size (L × W × H) (mm) |
PDCS-17 | 420 | 3300 | 1680 | 2550 | 5~20 | 30 | 11 | 3610 | 3331 × 990 × 1066 |
PDCS-18 | 450 | 3300 | 2000 | 2739 | 4~50 | 30 | 11 | 3655 | 4000 × 1120 × 1239 |
PDCS-20 | 500 | 3200 | 2000 | 2860 | 5~45 | 55 | 11 | 4213 | 4489 × 1160 × 1350 |
PDCS-21 | 540 | 2800 | 2000 | 2366 | 5~50 | 45 | 15 | 5290 | 4587 × 1285 × 1368 |
PS: The above parameters will be subject to the final technical agreement.
