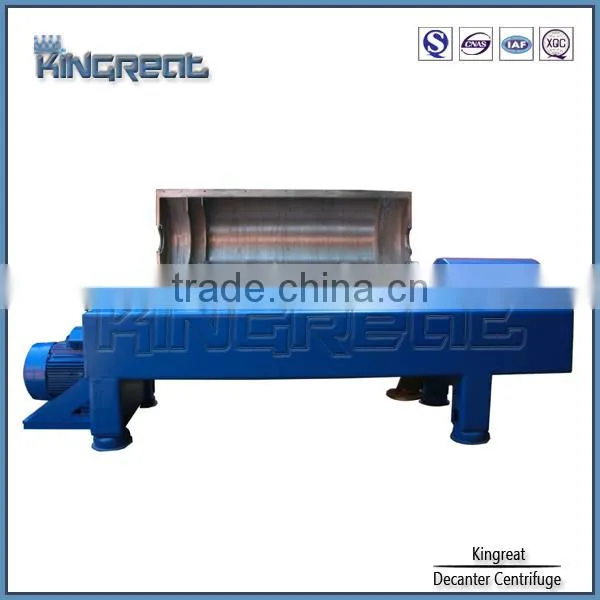

Electrical Continuous Discharge Waster Handling Decanter

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port Nanjing Shanghai Ningbo
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Centrifuge
Product Type	Other, Waster Handling Decanter	Place of Origin	Jiangsu, China
Brand Name	Kingreat	Model Number	PNX&PDC&PDCS
Voltage	220,380,440,460V	Power(W)	according to the model
Weight	according to the model	Dimension(LWH)	according to the model
Certification	ISO	Warranty	12months
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Electrical Continuous Discharge Waster Handling Decanter

Product Overviews

Decanters with slow rotation speeds are normally based on horizontal separation technology. Decanters ensure optimum separation efficiency in the case of suspensions with a very high proportion of solids. They are also used for the extraction of constituents from liquids and for concentrating, dewatering and classifying solids.

Decanters designs:
Type: 2-phase separation, 3-phase separation
Materials: use high-quality stainless steel for all product wetted areas.
Bearings: SKF brand. A special selection and arrangement of bearings provides for long life and exceptional reliability.
Wear protection: welded hard facing or spray coating,ceramic technology.

Applications

Food: Fruit and Vegetable juices, Starch, Protein, Molasses, Stillage
Oils and Fats: Fish oil, Gelatine
Environmental protection/Recycling: Drilling mud, Industrial wastewater, Municipal wastewater
Minerals: Graphite, Kaolin, Bentonite

Technical parameters

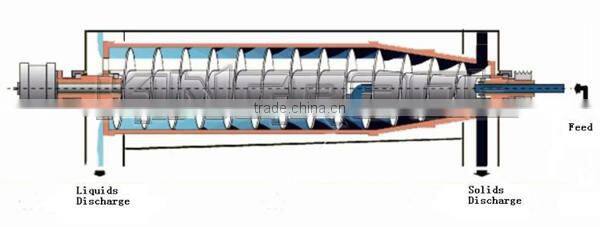

Two phase decanter centrifuge:

Model	Diameter (mm)	Bowl speed (rpm)	Length (mm)	G-force	Capacity (m3/h)	Main motor power (kw)	Assistant motor power (kw)	Weight (kg)	Overall size (L × W × H)(mm)
PNX409	250	5500	850	3493	0.2-2	15	4	1020	2500 × 650 × 760
PNX-414	355	4000	860	3175	1~10	18.5	7.5	2035	2765 × 920 × 1060
PNX-416	355	4000	1160	3175	1~15	18.5	7.5	2122	3065 × 920 × 1060
PNX-418	355	4000	1460	3175	1~25	22	7.5	2222	3365 × 920 × 1060
PDC-1655	420	3000	1450	2113	10~30	55	15	4600	4080 ×1100 × 1420
PDC-17-4	420	3600	1680	3042	3~15	30	7.5	5165	3331 × 990 × 1066
PDC-18-4.4	450	3300	2000	2739	10~20	37	11	2739	4000 × 1120 × 1239
PDC-20	500	3200	2000	2860	5~45	55	11	4400	4489 × 1160 × 1350
PDC-21	540	2800	2000	2366	15~50	45	15	5290	4587 × 1285 × 1368
PDC-24	620	3200	2480	3555	15~60	Hydraulic station 90		8000	4650 × 2010× 1200
PDC-28HH	720	2200	2400	1975	15-80	110	37	9393	4800 ×1350 × 1500

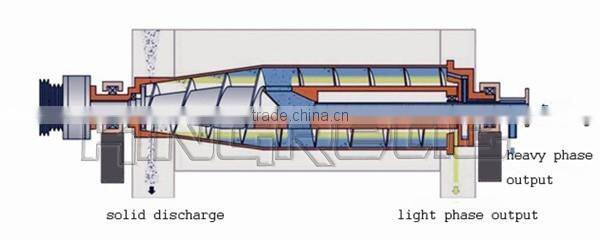

Three phase decanter centrifuge:

Model	Diameter (mm)	Bowl speed (rpm)	Length (mm)	G-force	Capacity (m3/h)	Main motor power (kw)	Assistant motor power (kw)	Weight (kg)	Overall size (L × W × H) (mm)
PDCS-17	420	3300	1680	2550	5~20	30	11	3610	3331 × 990 × 1066
PDCS-18	450	3300	2000	2739	4~50	30	11	3655	4000 × 1120 × 1239
PDCS-20	500	3200	2000	2860	5~45	55	11	4213	4489 × 1160 × 1350
PDCS-21	540	2800	2000	2366	5~50	45	15	5290	4587 × 1285 × 1368

PS: The above parameters will be subject to the final technical agreement.

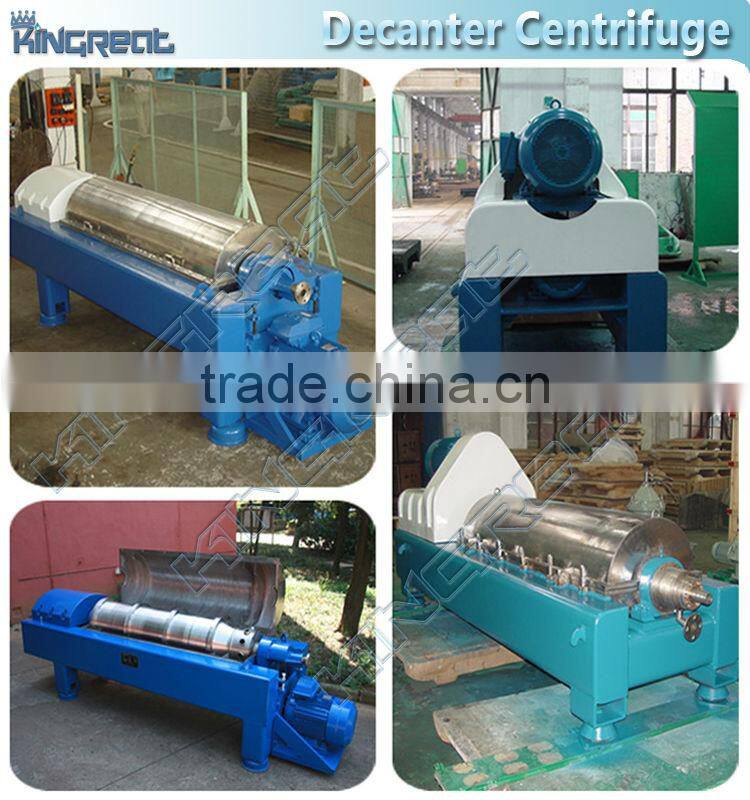

Separator in spot

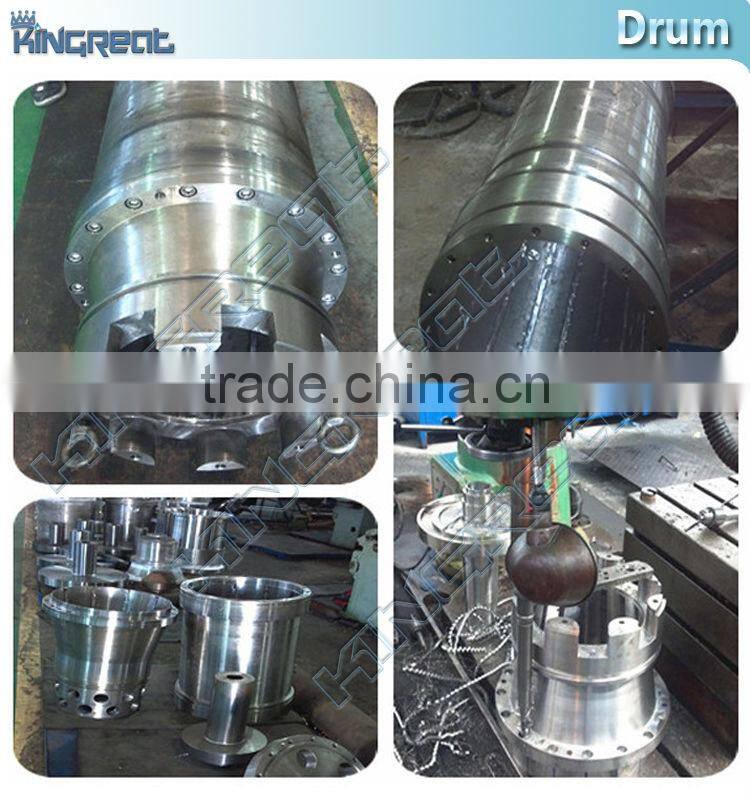

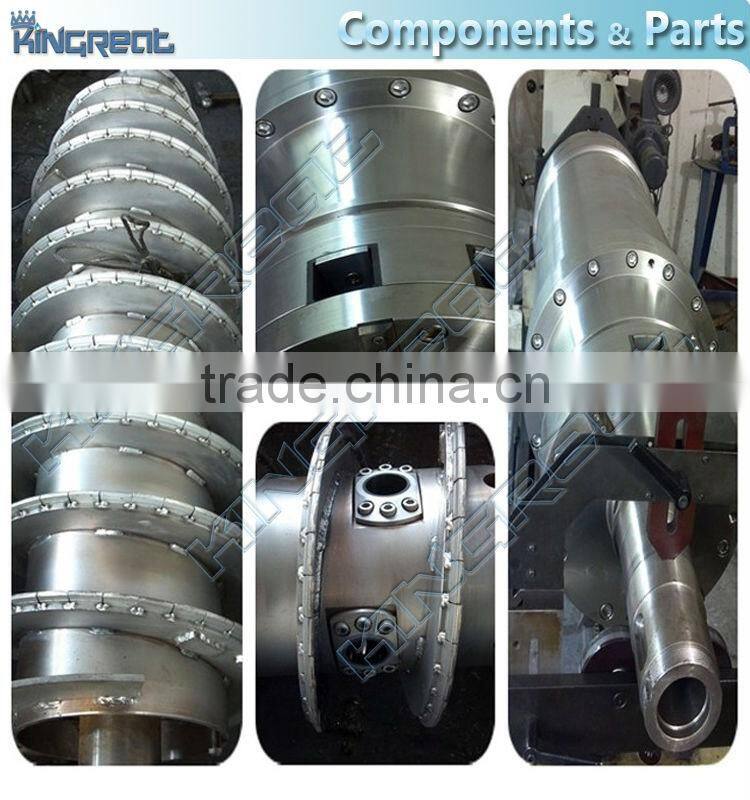

Components & parts

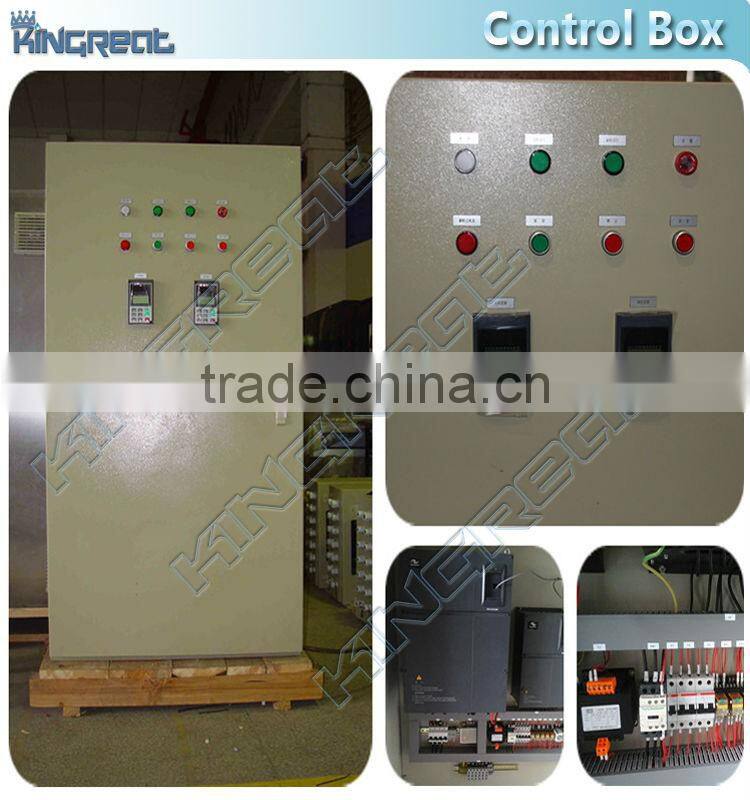

Control box

Packing & Delivery

Our Services

Contact Us
